Hot-selling and scarce SN65LVDS104PWR 4-Port LVDS and 4-Port TTL-to-LVDS Repeaters TSSOP16 spot stock
Manufacturer Product Number
SN65LVDS104PWR
Description

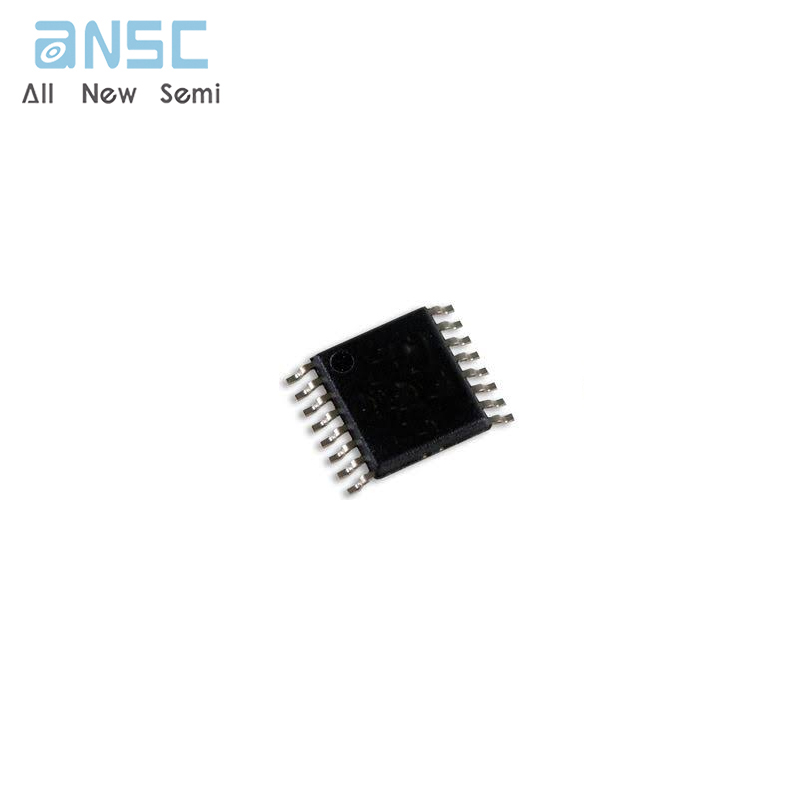

SN65LVDS104PWR 4-Port LVDS and 4-Port TTL-to-LVDS Repeaters TSSOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Receiver and Drivers Meet or Exceed the Requirements of ANSI EIA/TIA-644 Standard
– SN65LVDS105 Receives Low-Voltage TTL (LVTTL) Levels
– SN65LVDS104 Receives Differential Input Levels, ±100 mV
• Typical Data Signaling Rates to 400 Mbps or Clock Frequencies to 400 MHz
• Operates From a Single 3.3-V Supply
• Low-Voltage Differential Signaling With Typical Output Voltage of 350 mV and a 100-Ω Load
• Propagation Delay Time
– SN65LVDS105 – 2.2 ns (Typ)
– SN65LVDS104 – 3.1 ns (Typ)
• LVTTL Levels Are 5-V Tolerant
• Electrically Compatible With LVDS, PECL,LVPECL, LVTTL, LVCMOS, GTL, BTL, CTT,SSTL, or HSTL Outputs With External Networks
• Driver Outputs Are High-Impedance When Disabled or With VCC <1.5 V
• Bus-Pin ESD Protection Exceeds 16 kV
• SOIC and TSSOP Packaging
Product Applications
• Clock Distribution
• Wireless Base Stations
• Network Routers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN65LVDS104PWR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Signal Buffers, Repeaters, Splitters | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Buffer, Multiplexer |
| Input | LVDS |
| Output | LVDS |
| Data Rate (Max) | 400Mbps |
| Number of Channels | 1 x 1:4 |
| Delay Time | 3.1ns |
| Capacitance - Input | 3 pF |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 23mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 65LVDS104 |
