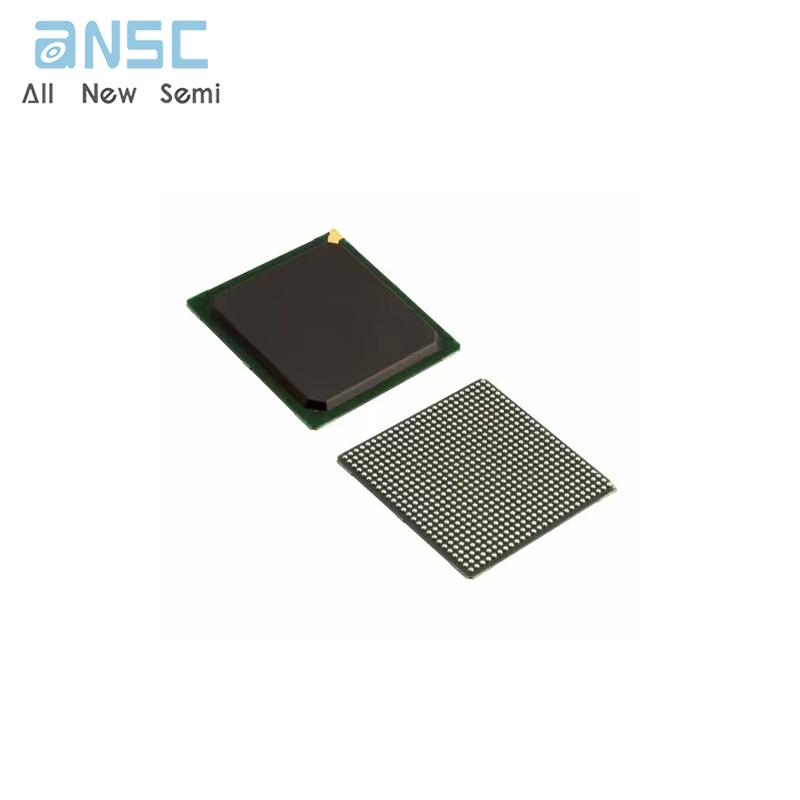

Hot-selling and scarce XCV600E-8FG676C Field Programmable Gate Array IC 676-BGA spot stock

Product Features

• Fast, High-Density 1.8 V FPGA Family

- Densities from 58 k to 4 M system gates

- 130 MHz internal performance (four LUT levels)

- Designed for low-power operation

- PCI compliant 3.3 V, 32/64-bit, 33/ 66-MHz

• Highly Flexible SelectI/O+™ Technology

- Supports 20 high-performance interface standards

- Up to 804 singled-ended I/Os or 344 differential I/O pairs for an aggregate bandwidth of > 100 Gb/s

• Differential Signalling Support

- LVDS (622 Mb/s), BLVDS (Bus LVDS), LVPECL

- Differential I/O signals can be input, output, or I/O

- Compatible with standard differential devices

- LVPECL and LVDS clock inputs for 300+ MHz clocks

• Proprietary High-Performance SelectLink™ Technology

- Double Data Rate (DDR) to Virtex-E link

- Web-based HDL generation methodology

• Sophisticated SelectRAM+™ Memory Hierarchy

- 1 Mb of internal configurable distributed RAM

- Up to 832 Kb of synchronous internal block RAM

- True Dual-Port BlockRAM capability

- Memory bandwidth up to 1.66 Tb/s (equivalent bandwidth of over 100 RAMBUS channels)

- Designed for high-performance Interfaces to External Memories

- 200 MHz ZBT* SRAMs

- 200 Mb/s DDR SDRAMs

- Supported by free Synthesizable reference design

Product Specification

Product Photos

For more product information, please download the PDF
