Hot-selling and scarce TLV431ACDBVR LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS SOT23-5 spot stock
Manufacturer Product Number
TLV431ACDBVR
Description
TLV431ACDBVR LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Low-Voltage Operation ...VREF = 1.24 V
Adjustable Output Voltage, VO = VREF to 6 V
Reference Voltage Tolerances at 25℃
− 0.5% for TLV431B
− 1% for TLV431A
− 1.5% for TLV431
Typical Temperature Drift
− 4 mV (0℃ to 70℃)
− 6 mV (–40℃ to 85℃)
− 11 mV (–40℃ to 125℃)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLV431ACDBVR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 6 V |
| Current - Output | 15 mA |
| Tolerance | ±1% |
| Current - Cathode | 80 µA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TLV431 |

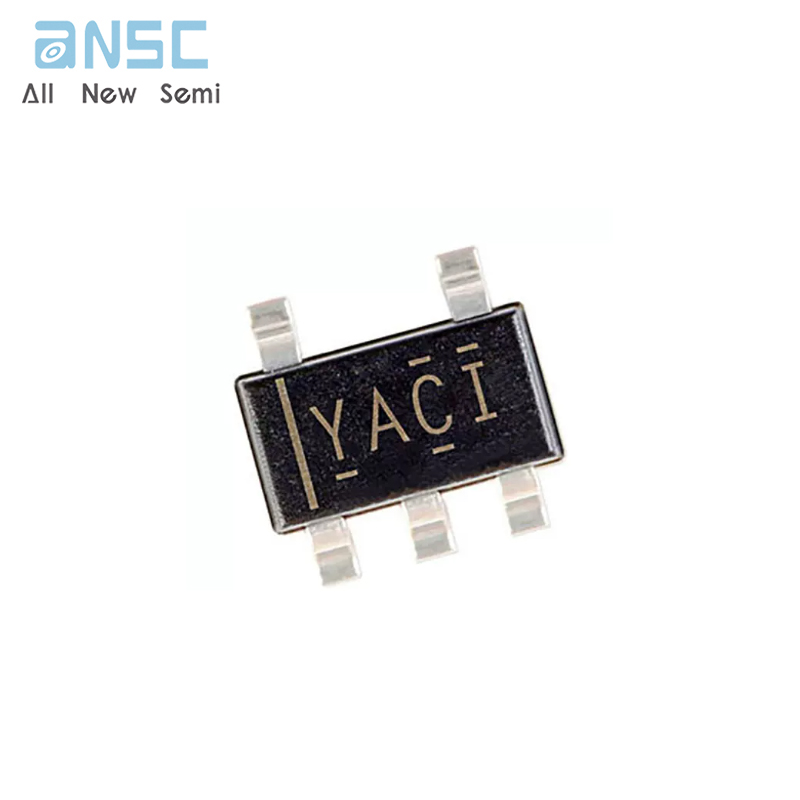

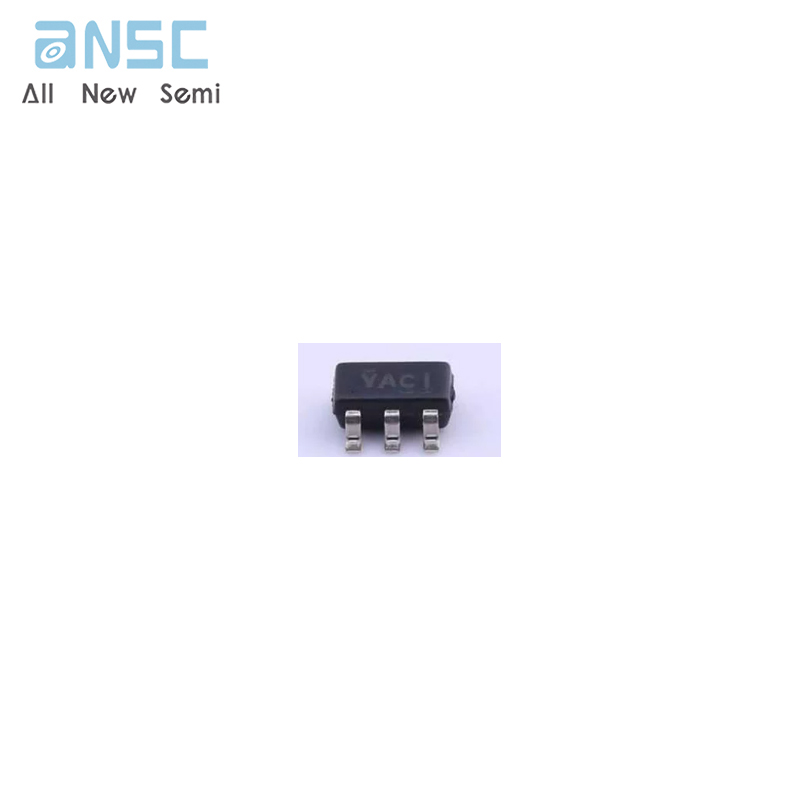

Product Photos
For more product information, please download the PDF
Other Products In The same category:
TLV431ACDBVR LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS SOT23-5 spot stock
210In stock:
Can ship immediately
