Hot-selling and scarce TPD6E001RSER LOW-CAPACITANCE 6-CHANNEL ±15-kV ESD-PROTECTION ARRAY QFN spot stock
Manufacturer Product Number
TPD6E001RSER
Description
TPD6E001RSER LOW-CAPACITANCE 6-CHANNEL ±15-kV ESD-PROTECTION ARRAY QFN spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• ESD Protection Exceeds
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC 61000-4-2 Contact Discharge
– ±15-kV IEC 61000-4-2 Air-Gap Discharge
• Low 1.5-pF Input Capacitance
• Low 1-nA (Max) Leakage Current
• Low 1-nA Supply Current
• 0.9-V to 5.5-V Supply-Voltage Range
• Six-Channel Device
• Space-Saving RSE and RSF Packages
• Alternate 2-, 3-, 4-Channel Options Available:TPD2E001, TPD3E001, and TPD4E001
Product Applications
• UBB
• USB 2.0
• Ethernet
• FireWire
• Video
• Cell Phones
• SVGA Video Connections
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TPD6E001RSER |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 6 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 11V |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (2.0x1.5) |
| Base Product Number | TPD6E001 |

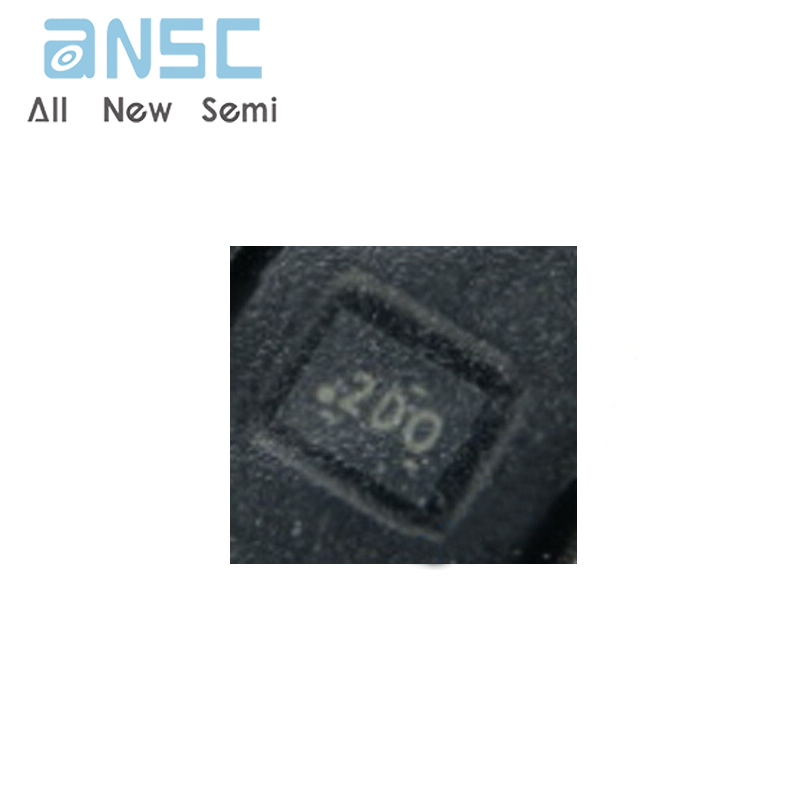

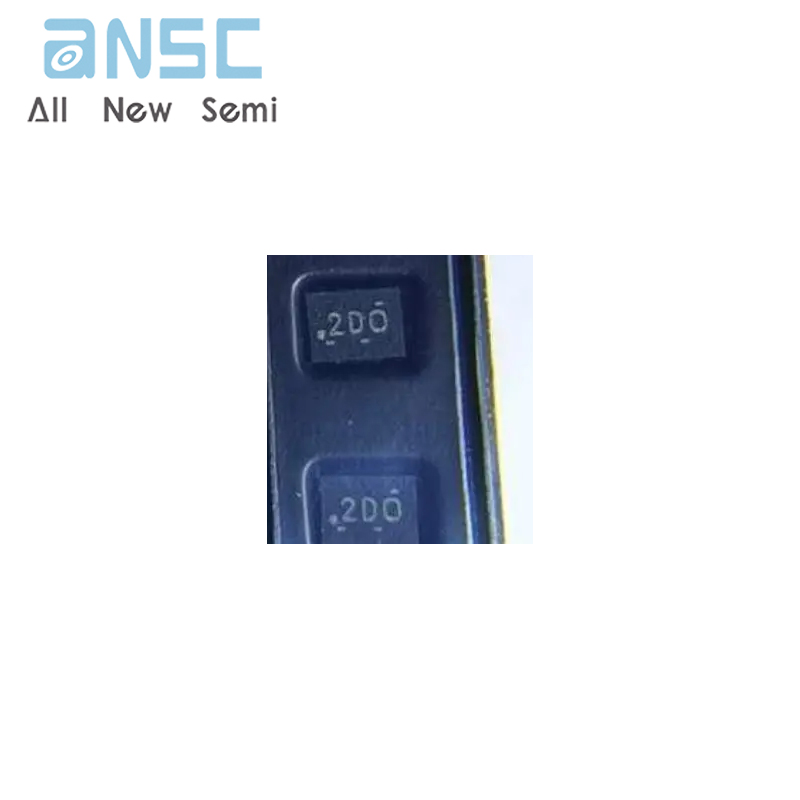

Product Photos
、
For more product information, please download the PDF
