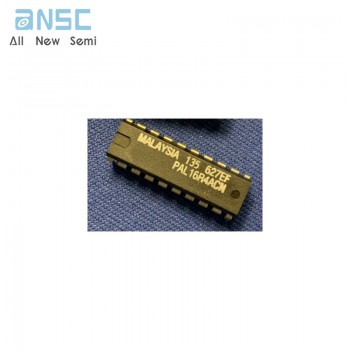

Hot-selling and scarce PAL16R4ACN Programmable Logic Device (PLD) IC 4 Macrocells 20-PDIP spot stock

Product Descriptions

The PAL16R8 Family (PAL16L8, PAL16R8, PAL16R6,PAL16R4) includes the PAL16R8-5/4 Series which provides the highest speed in the 20-pin TTL PAL device family, making the seriesideal for high-performance applications. The PAL16R8 Family is provided with standard 20-pin DIP and PLCC pinouts and a 28-pin PLCC pinout. The 28-pin PLCC pinout contains seven extra ground pins interleaved between the outputs to reduce noise and increase speed.

The devices provide user-programmable logic for replacing conventional SSI/MSI gates and flip-flops at a reduced chip count.

The family allows the systems engineer to implement the design on-chip, by opening fuse links to configure AND and OR gates within the device, according to the desired logic function. Complex interconnections between gates, which previously required time-consuming layout, are lifted from the PC board and placed on silicon, where they can be easily modified during prototyping or production.

Product Features

As fast as 4.5 ns maximum propagation delay

Popular 20-pin architectures: 16L8, 16R8, 16R6,16R4

Programmable replacement for high-speed TTL logic

Register preload for testability

Power-up reset for initialization

Extensive third-party software and programmersupport through FusionPLD partners

20-Pin DIP and PLCC packages save space

28-Pin PLCC-4 package provides ultra-cleanhigh-speed signals

Product Specification

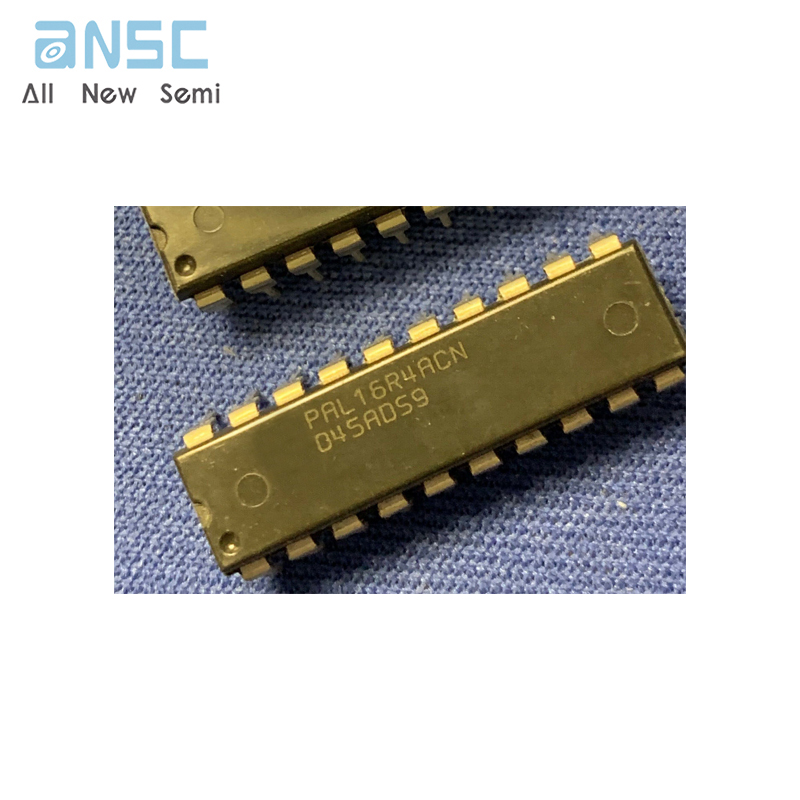

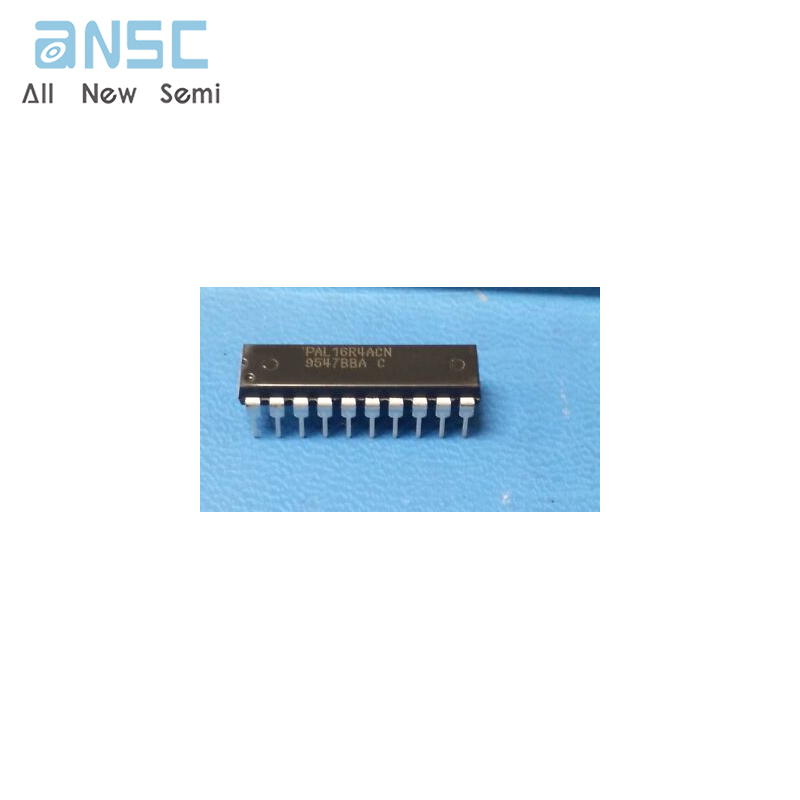

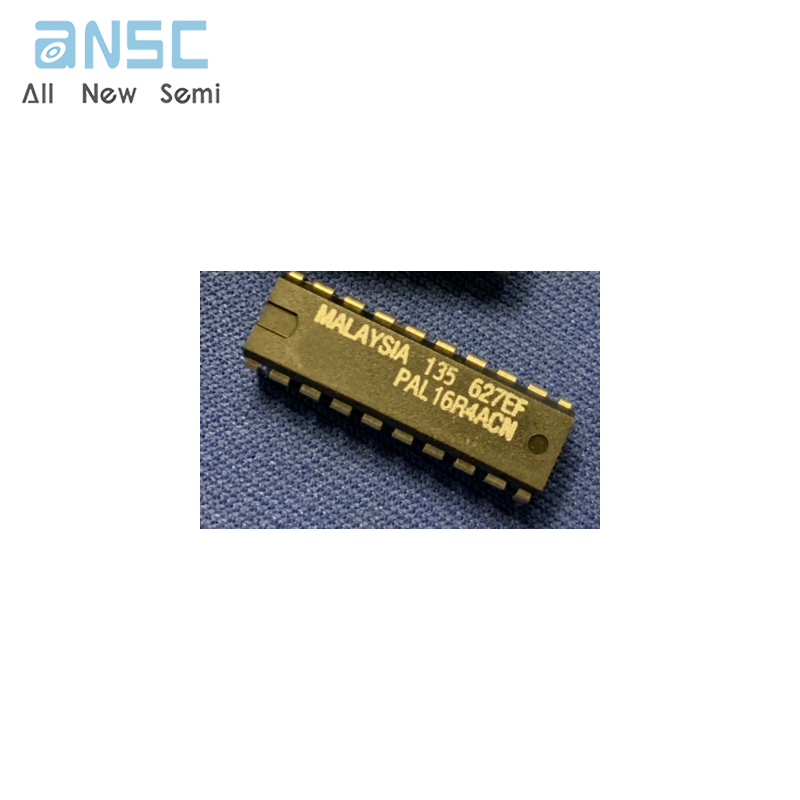

Product Photos

For more product information, please download the PDF
