Hot-selling and scarce ADG506AKRZ 8-/16-Channel Analog Multiplexers SOP28 spot stock
Manufacturer Product Number
ADG506AKRZ
Description
ADG506AKRZ 8-/16-Channel Analog Multiplexers SOP28 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADG506A and ADG507A are CMOS monolithic analogmultiplexers with 16 channels and dual 8 channels, respectively .The ADG506A switches one of 16 inputs to a common output,depending on the state of four binary addresses and an enableinput . The ADG507A switches one of eight differential inputs toa common differential output, depending on the state of threebinary addresses and an enable input . Both devices have TTLand 5 V CMOS logic compatible digital inputs .
The ADG506A and ADG507A are designed on an enhancedLC2MOS process, which gives an increased signal capability ofVSS to VDD and enables operation over a wide range of supplyvoltages . The devices can operate comfortably anywhere in the10.8 V to 16.5 V single or dual supply range . These multiplexersalso feature high switching speeds and low RON .
Product Features
44 V Supply Maximum Rating
VSS to VDD Analog Signal Range
Single/Dual Supply Specifications
Wide Supply Ranges (10.8 V to 16.5 V)
Extended Plastic Temperature Range
(–40C to +85C)
Low Power Dissipation (28 mW max)
Low Leakage (20 pA typ)
Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC
Packages
Superior Alternative to:
DG506A, Hl-506
DG507A, Hl-507
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADG506AKRZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V卤) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | ADG506 |

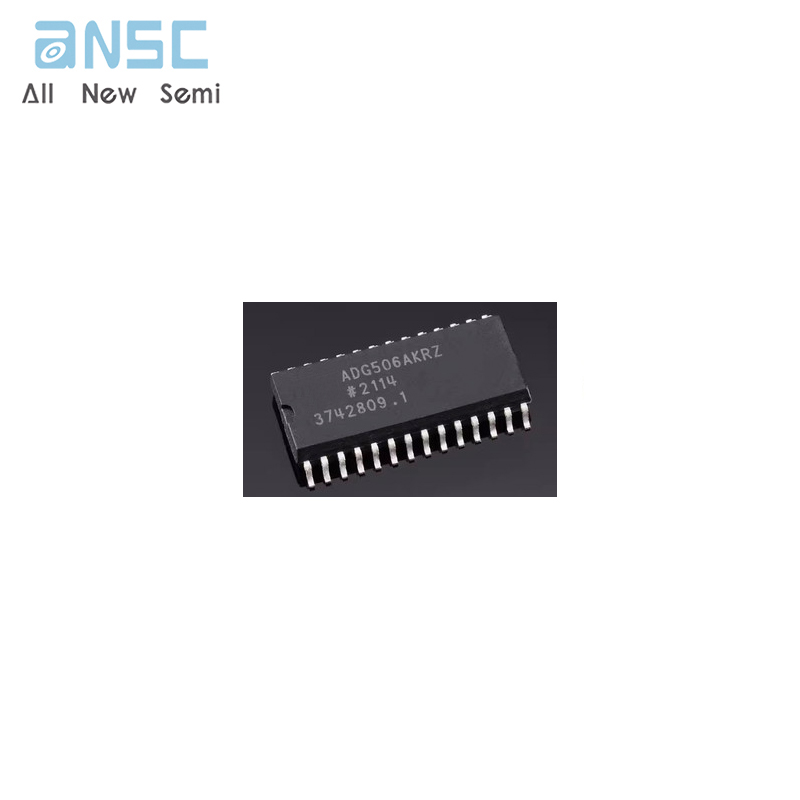

Product Photos
