Product Descriptions

The ADuM340x ¹  are 4-channel digital isolators based onAnalog Devices’ iCoupler® technology. Combining high speedCMOS and monolithic air core transformer technology,theseisolation components provide outstanding performancecharacteristics superior to alternatives such as optocoupler devices .

iCoupler devices remove the design difficulties commonlyassociated with optocouplers . Typical optocoupler concernsregarding uncertain current transfer ratios, nonlinear transferfunctions, and temperature and lifetime effects are eliminatedwith the simple iCoupler digital interfaces and stable performancecharacteristics . The need for external drivers and other discretecomponents is eliminated with these iCoupler products .Furthermore, iCoupler devices consume one-tenth to one-sixth thepower of optocouplers at comparable signal data rates .

The ADuM340x isolators provide three independent isolationchannels in a variety of channel configurations and data rates(see the Ordering Guide). All models operate with the supplyvoltage on either side ranging from 2.7 V to 5.5 V, providingcompatibility with lower voltage systems as well as enabling avoltage translation functionality across the isolation barrier. TheADuM340x isolators have a patented refresh feature that ensures dccorrectness in the absence of input logic transitions and duringpower-up/power-down conditions.

Product Features

Enhanced system-level ESD performance per IEC 61000-4-x

Low power operation

5 V operation

1.4 mA per channel maximum @ 0 Mbps to 2 Mbps

4.3 mA per channel maximum @ 10 Mbps

34 mA per channel maximum @ 90 Mbps

3 V operation

0.9 mA per channel maximum @ 0 Mbps to 2 Mbps

2.4 mA per channel maximum @ 10 Mbps

20 mA per channel maximum @ 90 Mbps

Bidirectional communication

3 V/5 V level translation

High temperature operation: 105°C

High data rate: dc to 90 Mbps (NRZ)

Precise timing characteristics

2 ns maximum pulse-width distortion

2 ns maximum channel-to-channel matching

High common-mode transient immunity: >25 kV/μs

Output enable function

16-lead SOIC wide body, Pb-free package

Safety and regulatory approvals

UL recognition: 2500 V rms for 1 minute per UL 1577

CSA Component Acceptance Notice #5A

VDE Certificate of Conformity

DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01

DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000

VIORM = 560 V peak

Product Applications

General-purpose multichannel isolation

SPI® interface/data converter isolation

RS-232/RS-422/RS-485 transceivers

Industrial field bus isolation

Product Specification

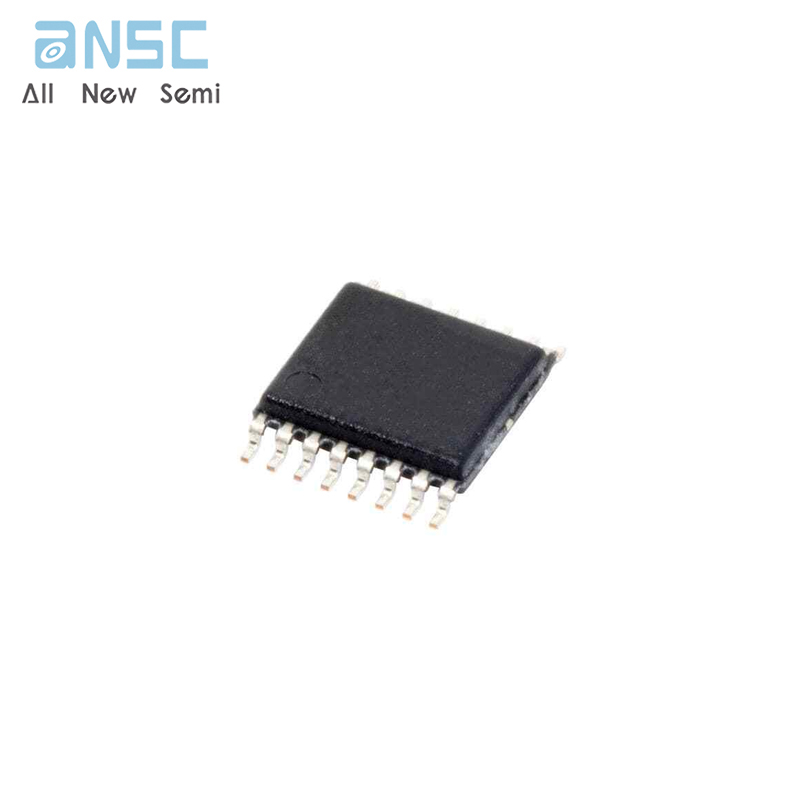

Product Photos
