Hot-selling and scarce SN74AC14DG4 HEX SCHMITT-TRIGGER INVERTERS SOP14 spot stock

Product Descriptions

These Schmitt-trigger devices contain six independent inverters. They perform the Boolean function Y = A. Because of the Schmitt action, they have different input threshold levels for positive-going (VT+) and for negative-going (VT−) signals.

These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals. They also have a greater noise margin than conventional inverters.​

Product Features

2-V to 6-V VCC Operation

Inputs Accept Voltages to 6 V

Max tpd of 9.5 ns at 5 V

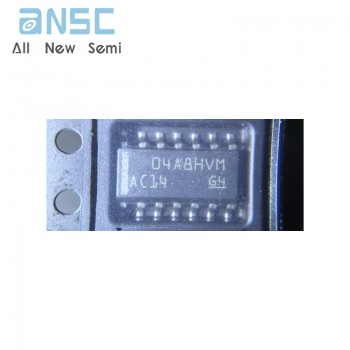

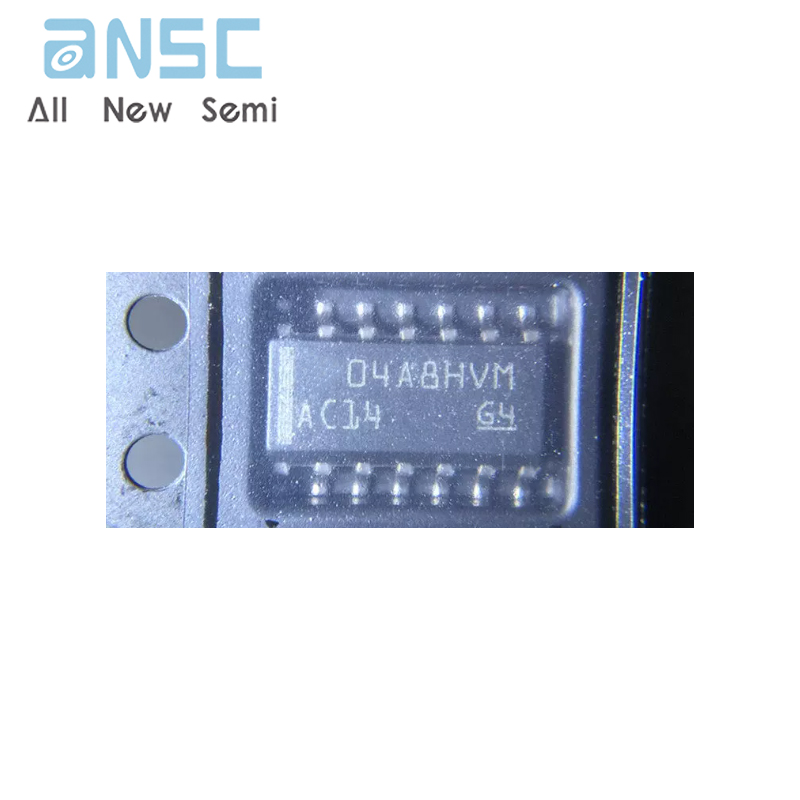

Product Photos

For more product information, please download the PDF
