Hot-selling and scarce EPM7256AEFC100-7N Programmable Logic Device IC BGA spot stock
Manufacturer Product Number
EPM7256AEFC100-7N
Description
EPM7256AEFC100-7N Programmable Logic Device IC BGA spot stock
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
■ 3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability
– MAX 7000AE device in-system programmability (ISP) circuitry compliant with IEEE Std. 1532
– EPM7128A and EPM7256A device ISP circuitry compatible with IEEE Std. 1532
■ Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1
■ Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71
■ Enhanced ISP features
– Enhanced ISP algorithm for faster programming (excluding EPM7128A and EPM7256A devices)
– ISP_Done bit to ensure complete programming (excluding EPM7128A and EPM7256A devices)
– Pull-up resistor on I/O pins during in-system programming
■ Pin-compatible with the popular 5.0-V MAX 7000S devices
■ High-density PLDs ranging from 600 to 10,000 usable gates
■ Extended temperature range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-EPM7256AEFC100-7N |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | - |
| Series | MAX® 7000A |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Programmable Type | In System Programmable |
| Delay Time tpd(1) Max | 7.5 ns |
| Voltage Supply - Internal | 3V ~ 3.6V |
| Number of Logic Elements/Blocks | 16 |
| Number of Macrocells | 256 |
| Number of Gates | 5000 |
| Number of I/O | 84 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LBGA |
| Supplier Device Package | 100-FBGA (11x11) |
| Base Product Number | EPM7256 |

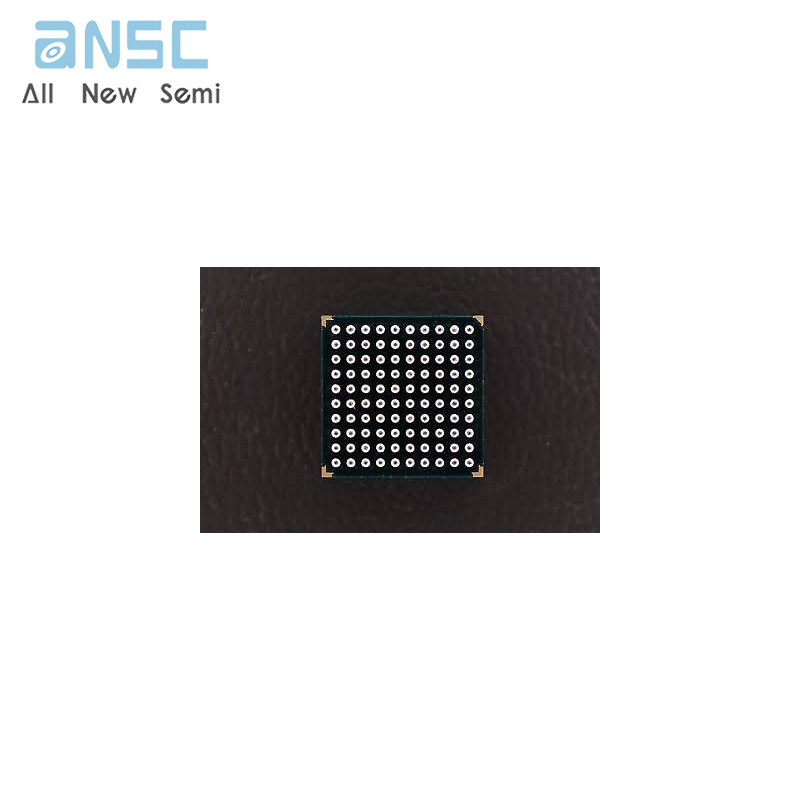

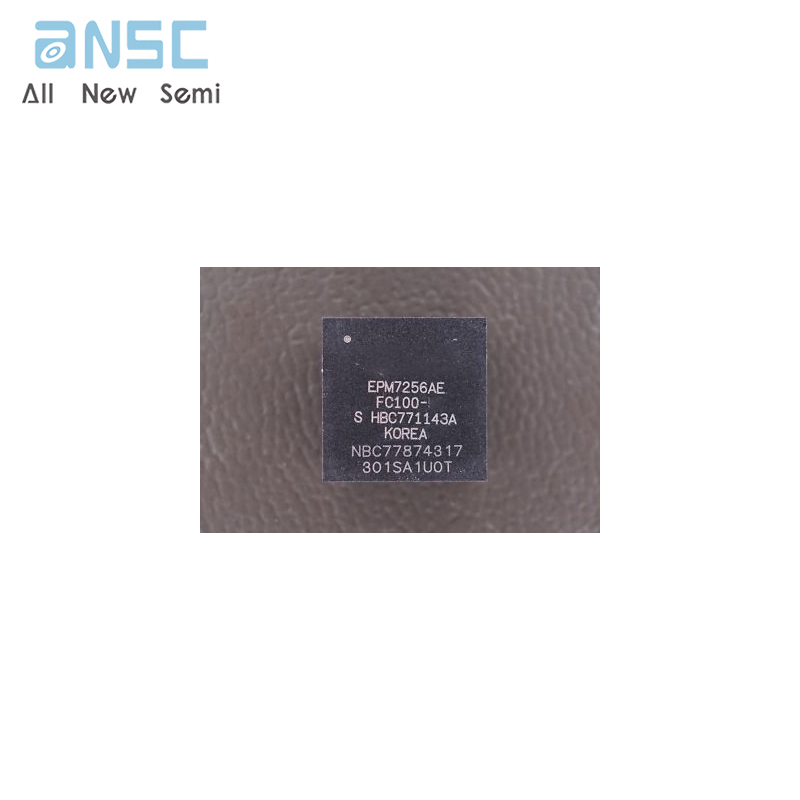

Product Photos
