Hot-selling and scarce AFS1500-FGG256 Field Programmable Gate Array IC BGA spot stock

​Product Features

Extended Temperature Tested

• Each Device Tested from –55°C to 100°C Junction Temperature

High-Performance Reprogrammable Flash Technology

• Advanced 130-nm,7-Layer Metal,Flash-Based CMOS Process

• Nonvolatile,Retains Program when Powered Off

• Instant On Single-Chip Solution

• 350 MHz System Performance

Embedded Flash Memory

• User Flash Memory –4 Mbits to 8 Mbits

– Configurable 16-or 32-Bit Datapath

– 10 ns Access in Read-Ahead Mode

• 1 Kbit of Additional FlashROM

Integrated A/D Converter (ADC)and Analog I/O

• Up to 12-Bit Resolution and Up to 600 Ksps

• Internal 2.56 V or External Reference Voltage

• ADC:30 Scalable Analog Input Channels

• High-Voltage Input Tolerance:–10.5 V to +12 V

• Current Monitor †and Temperature Monitor Blocks

• Up to 10 MOSFET Gate Driver Outputs

– P-and N-Channel Power MOSFET Support

– Programmable 1,3,10,30 µA,and 20 mA Drive Strengths

• ADC Accuracy Is Better than 1%

On-Chip Clocking Support

• Internal 100 MHz RC Oscillator (Accurate to 1%)

• Crystal Oscillator Support (32 KHz to 20 MHz)

• Programmable Real-Time Counter (RTC)

Product Specification

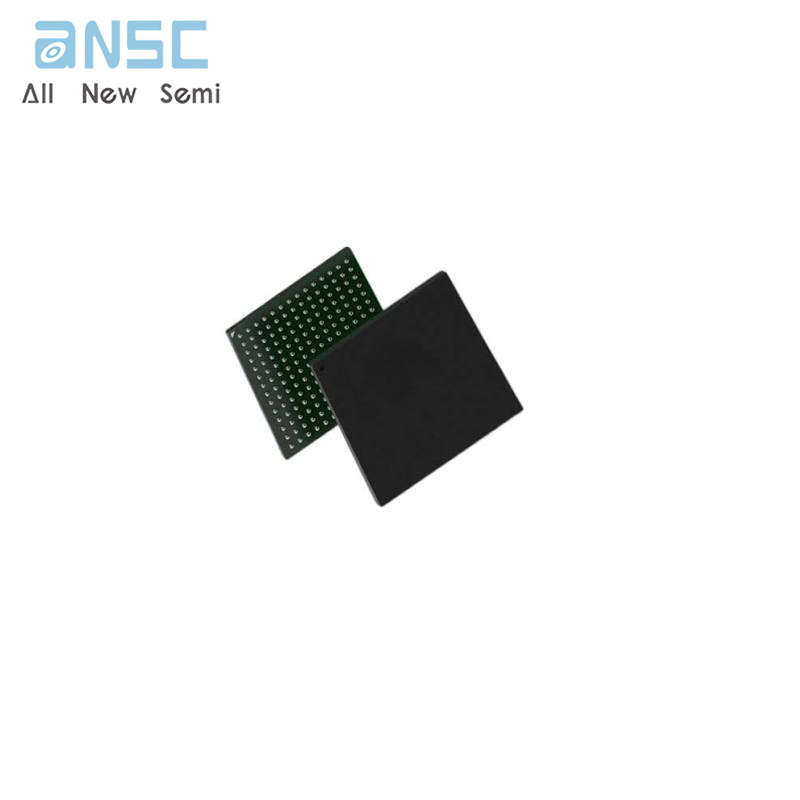

Product Photos

For more product information, please download the PDF
