Hot-selling and scarce TPS62110RSAR 17-V 1.5-A Synchronous Step-Down Converter QFN16 spot stock

Product Descriptions

The TPS6211x devices are a family of low-noise synchronous step-down dc-dc converters that are ideally suited for systems powered from a 2-cell Li-ion battery or from a 12-V or 15-V rail.

The TPS6211x is a synchronous PWM converter with integrated N- and P-channel power MOSFET switches. Synchronous rectification is used to increase efficiency and to reduce external component count. To achieve highest efficiency over a wide load-current range, the converter enters a power-saving, pulse-frequency modulation (PFM) mode at light load currents. Operating frequency is typically 1 MHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 0.8 MHz to 1.4 MHz. For low-noise operation, the converter can be operated in PWM-only mode. In the shutdown mode, the current consumption is reduced to less than 2 µA. The TPS6211x is available in the 16-pin (RSA) QFN package, and operates over a free-air temperature range of –40°C to 85°C.

Product Features

• High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency

• 3.1-V to 17-V Operating Input Voltage Range

• Adjustable Output Voltage Range From 1.2 V to 16 V

• Fixed Output Voltage Options Available in 3.3 V and 5 V

• Synchronizable to External Clock Signal up to 1.4 MHz

• Up to 1.5-A Output Current

• High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode

• 100% Maximum Duty Cycle for Lowest Dropout

• 20-µA Quiescent Current (Typical)

• Overtemperature and Overcurrent Protected

• Available in 16-Pin QFN Package

Product Applications

• Point-of-Load Regulation From 12-V Bus

• Organizers, PDAs, and Handheld PCs

• Handheld Scanners

Product Specification

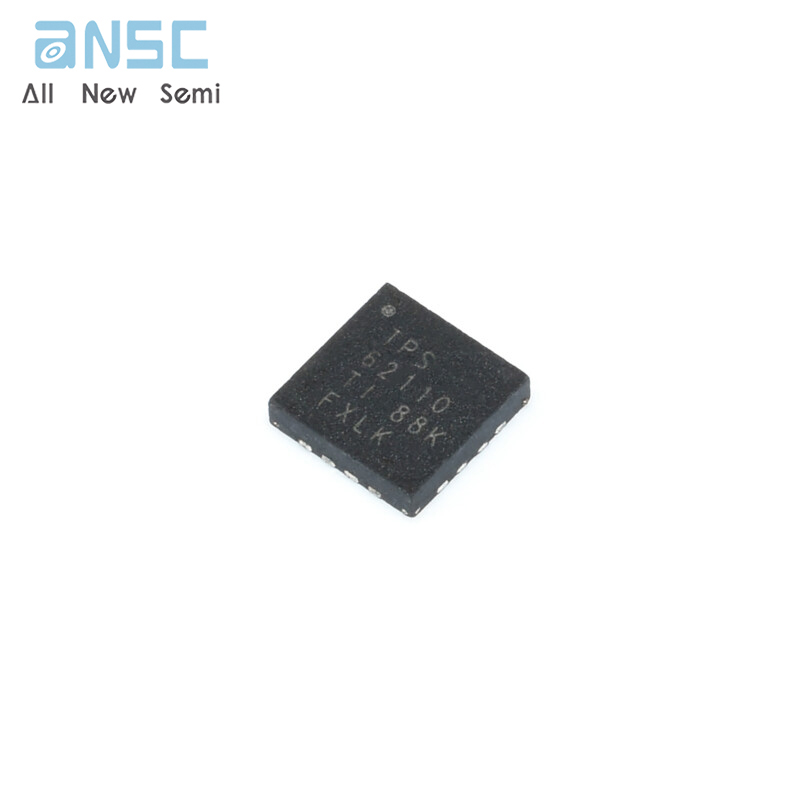

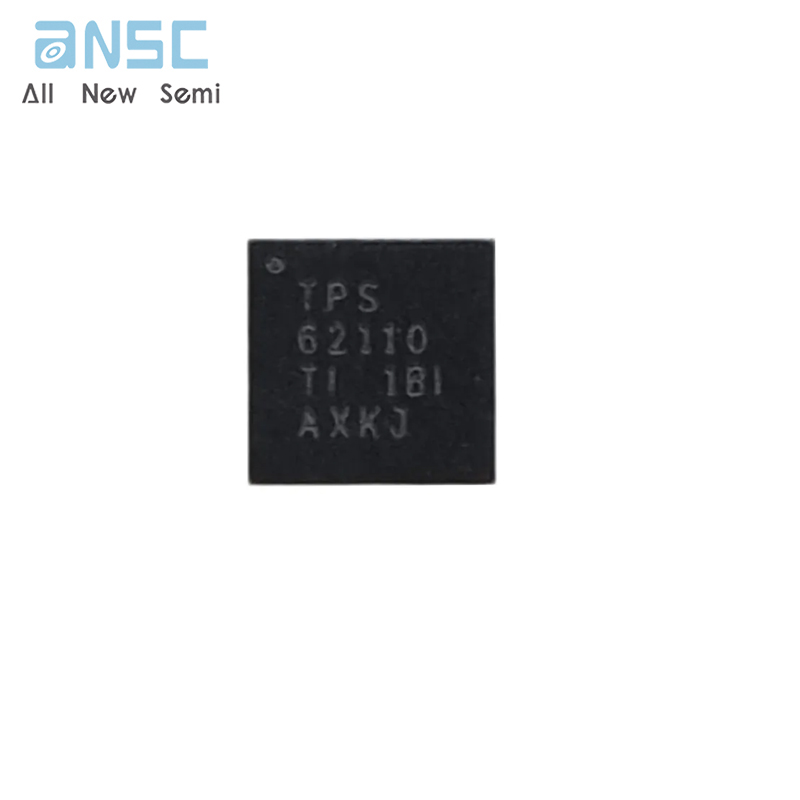

Product Photos

For more product information, please download the PDF
