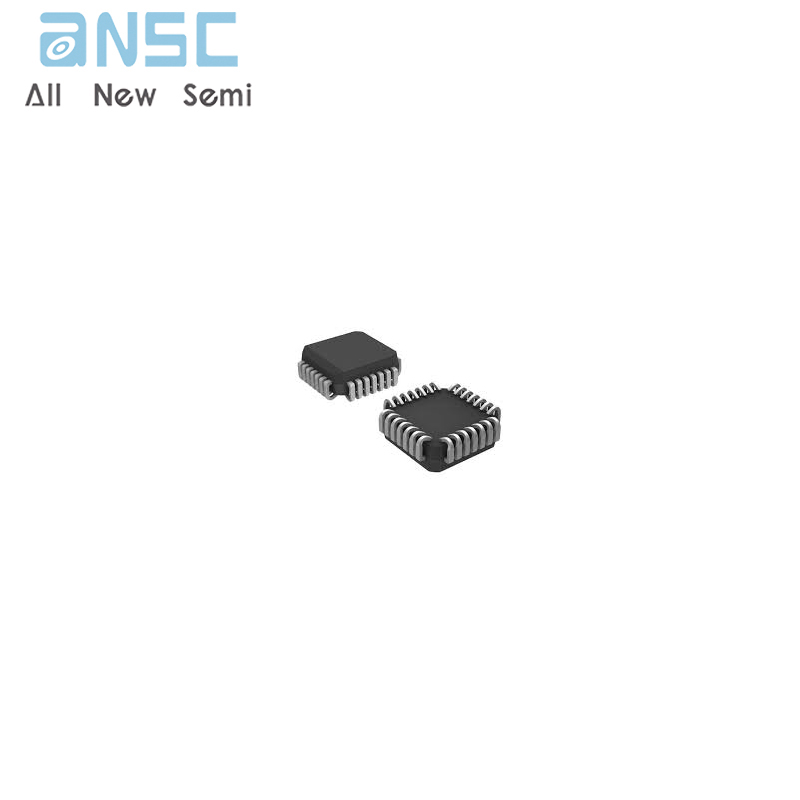

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MC10E157FNR2G 5 V ECL Quad 2:1 Multiplexer PLCC28 spot stock
Manufacturer Product Number
MC10E157FNR2G
Description
MC10E157FNR2G 5 V ECL Quad 2:1 Multiplexer PLCC28 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Individual Select Controls
• 550 ps Max. D to Output
• 800 ps Max. SEL to Output
• PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
• NECL Mode Operating Range: VCC= 0 V with VEE = −4.2 V to −5.7 V
• Internal Input 50 k Pulldown Resistors
• ESD Protection: Human Body Model; > 2 kV,
Machine Model; > 200 V
Charged Device Model; > 2 kV
• Meets or Exceeds JEDEC Standard EIA/JESD78 IC Latchup Test
• Moisture Sensitivity Level:
Pb = 1
Pb−Free = 3
For Additional Information, see Application Note AND8003/D
• Flammability Rating: UL 94 V−0 @ 0.125 in, Oxygen Index: 28 to 34
• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
• Transistor Count = 137 devices
• Pb−Free Packages are Available*
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC10E157FNR2G |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Series | 10E |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Multiplexer |
| Circuit | 1 x 2:1 |
| Independent Circuits | 4 |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply | ±4.2V ~ 5.7V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Base Product Number | 1E+158 |
Product Photos
For more product information, please download the PDF
