Hot-selling and scarce MP6002DN-LF-Z Monolithic Flyback/Forward DC-DC Converter SOP8

Product Descriptions

The MP6002 is a monolithic Flyback/Forward DC-DC converter which includes a 150V power switch and is capable of delivering up to 30W output power. It can also be used for boost and SEPIC applications.

The MP6002 uses the fixed-frequency peak current mode primary controller architecture. It has an internal soft-start, auto-retry, and incorporates over current, short circuit, and over-voltage protection. The MP6002 can also skip cycles to maintain zero load regulation.

It has a direct optocoupler interface which bypasses the internal error amplifier when an isolated output is desired.

The MP6002 is ideal for telecom applications, and is available in a compact, thermally enhanced SO8 package with an exposed pad.

Product Features

 Integrated 0.45Ω 150V Power Switch

 Cycle-by-Cycle Current Limiting

 Programmable Switching Frequency

 Duty Cycle Limiting with Line Feed Forward

 Integrated 100V Startup Circuit

 Internal Slope Compensation

 Disable Function

 Built-in Soft-Start

 Line Under Voltage Lockout

 Line Over Voltage Protection

 Auto-Restart for Opened/Shorted Output

 Zero Load Regulation

 Thermal Shutdown

Product Applications

 Telecom Equipment

 VoIP Phones, Power over Ethernet (PoE)

 Distributed Power Conversion

Product Specification

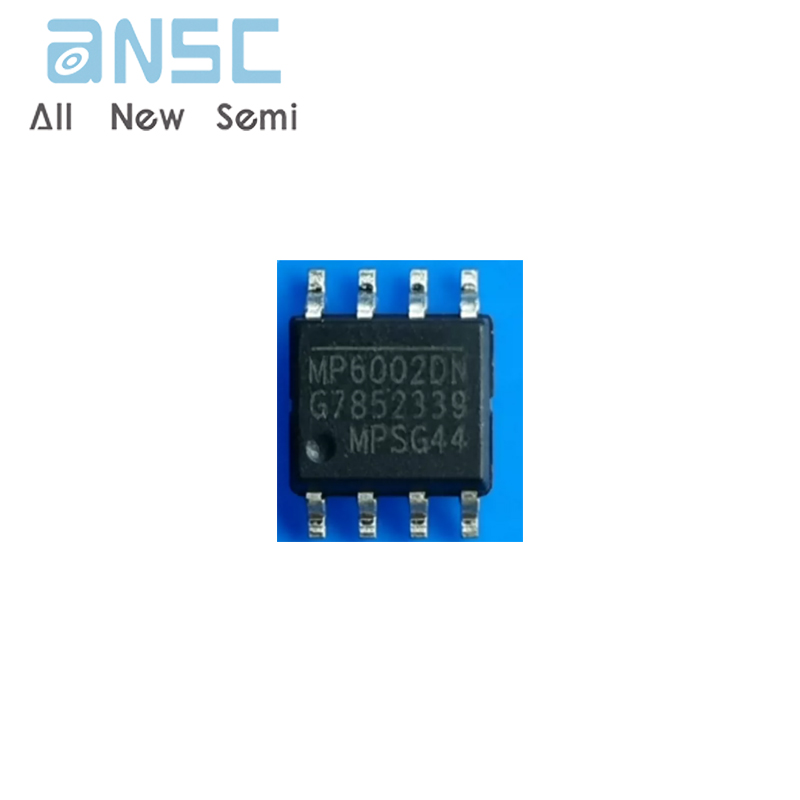

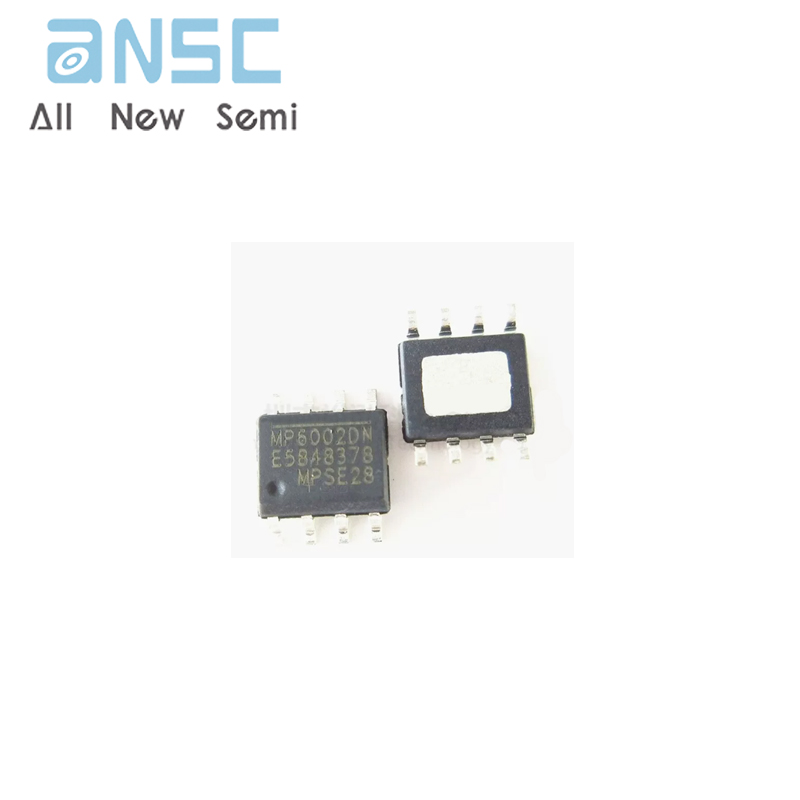

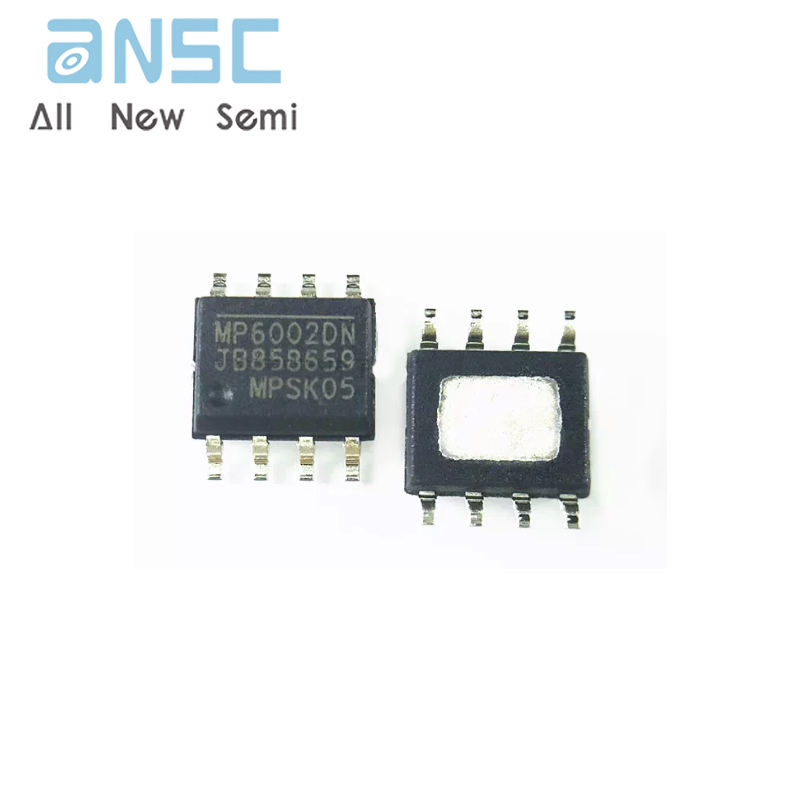

Product Photos

For more product information, please download the PDF
