Hot-selling and scarce MC10101P Quad OR/NOR Gate DIP16 spot stock
Manufacturer Product Number
MC10101P
Description
MC10101P Quad OR/NOR Gate DIP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC10101 is a quad 2–input OR/NOR gate with one input from each gate common to pin 12.
• PD = 25 mW typ/gate (No Load)
• tpd = 2.0 ns typ
• tr, tf = 2.0 ns typ (20%–80%)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC10101P |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters - Multi-Function, Configurable | |
| Manufacturer | - |
| Series | MC1000 |
| Packaging | Bulk |
| Part Status | Active |
| Logic Type | NOR/OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 8 Input (2, 2, 2, 2) |
| Schmitt Trigger Input | No |
| Output Type | Differential |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | MC10101 |

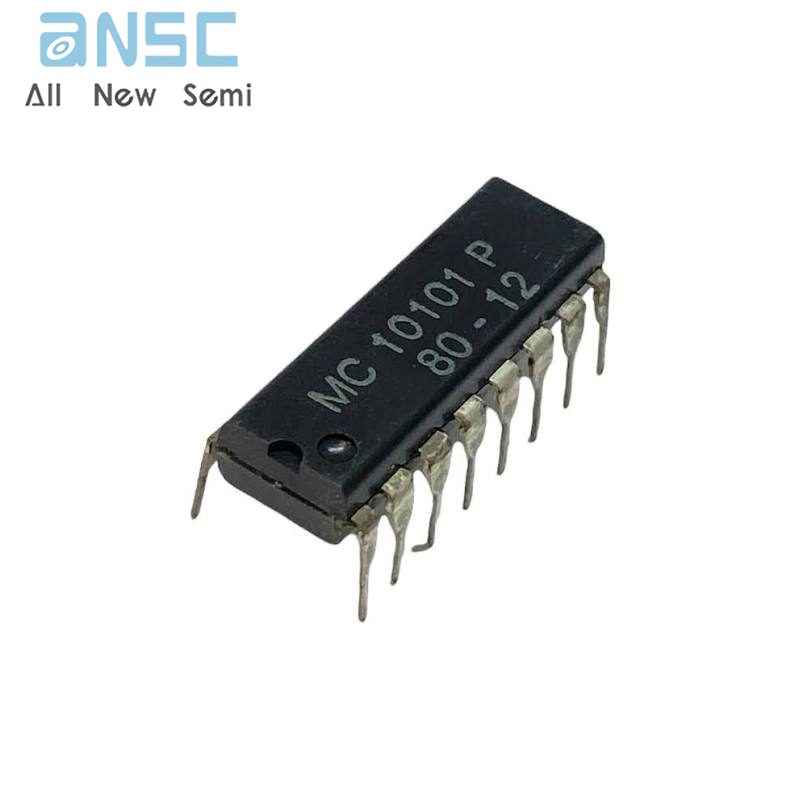

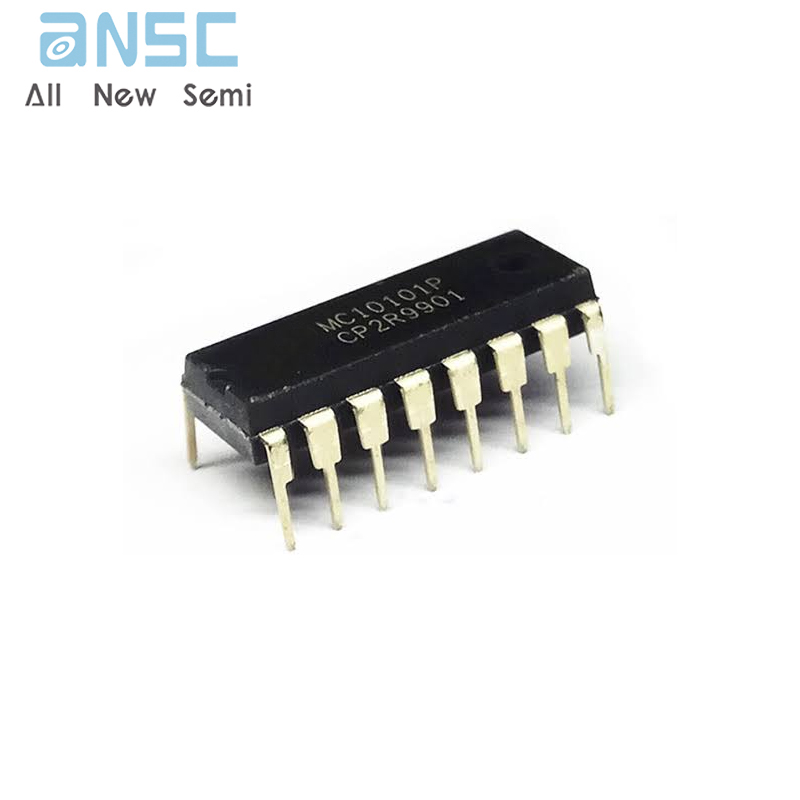

Product Photos
For more product information, please download the PDF
