Hot-selling and scarce AD9515BCPZ 1.6 GHz Clock Distribution IC, Dividers, Delay Adjust, Two Outputs QFN spot stock
Manufacturer Product Number
AD9515BCPZ
Description
AD9515BCPZ 1.6 GHz Clock Distribution IC, Dividers, Delay Adjust, Two Outputs QFN spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
1.6 GHz differential clock input
2 programmable dividers
Divide-by in range from1 to 32
Phase select for coarse delay adjust
1.6 GHz LVPECL clock output
Additive output jitter 225 fs rms
800 MHz/250 MHz LVDS/CMOS clock output
Additive output jitter 300 fs rms/290 fs rms
Time delays up to 10 ns
Device configured with 4-level logic pins
Space-saving, 32-lead LFCSP
Product Applications
Low jitter, low phase noise clock distribution
Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs
High performance wireless transceivers
High performance instrumentation
Broadband infrastructure
ATE
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD9515BCPZ |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Active |
| Type | Fanout Buffer (Distribution), Divider |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/Yes |
| Input | Clock |
| Output | CMOS, LVDS, LVPECL |
| Frequency - Max | 1.6 GHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Base Product Number | AD9515 |

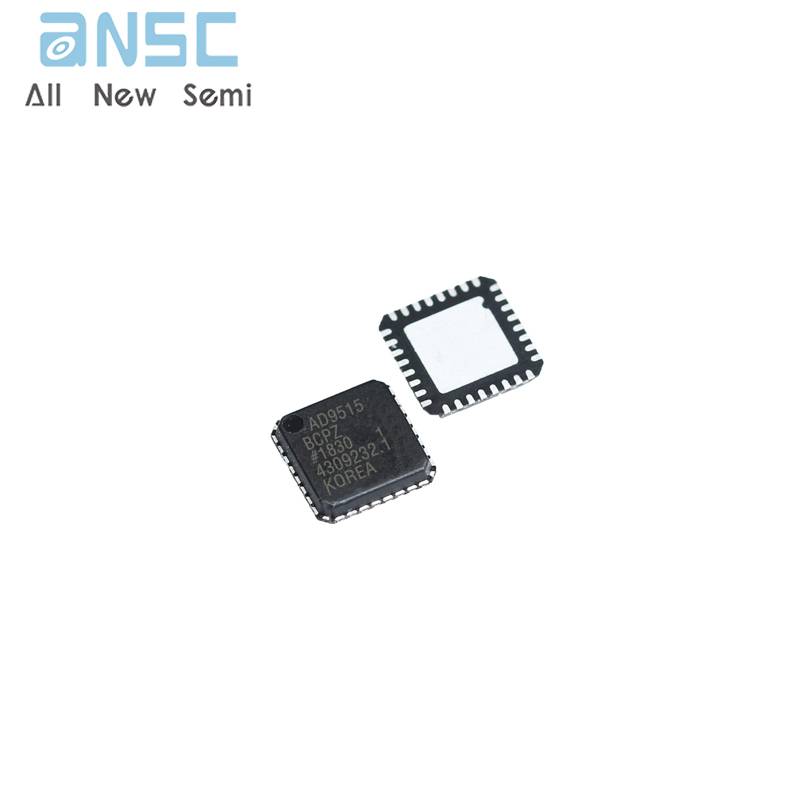

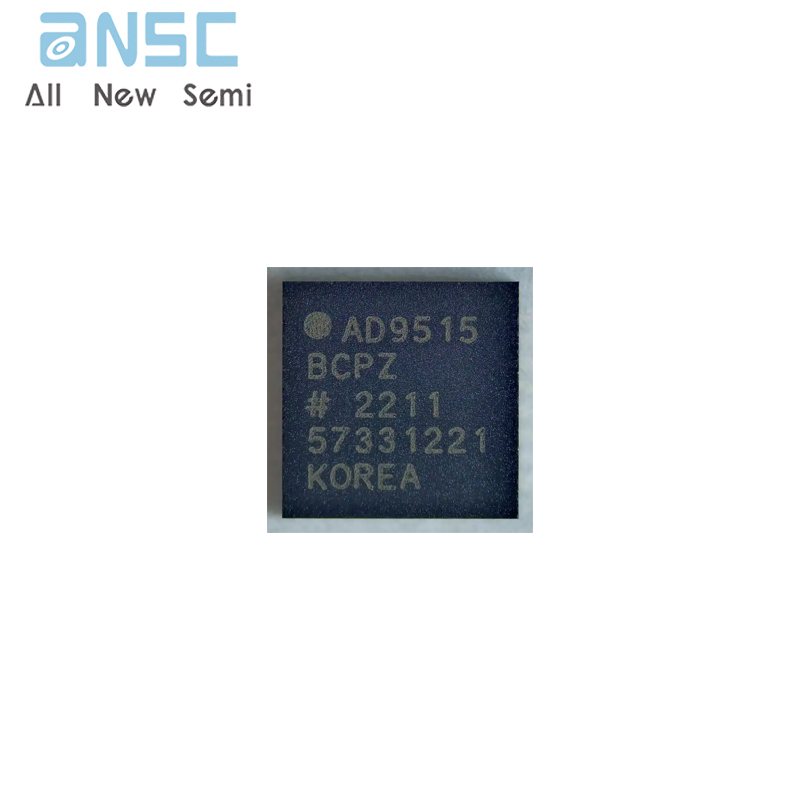

Product Photos
For more product information, please download the PDF
