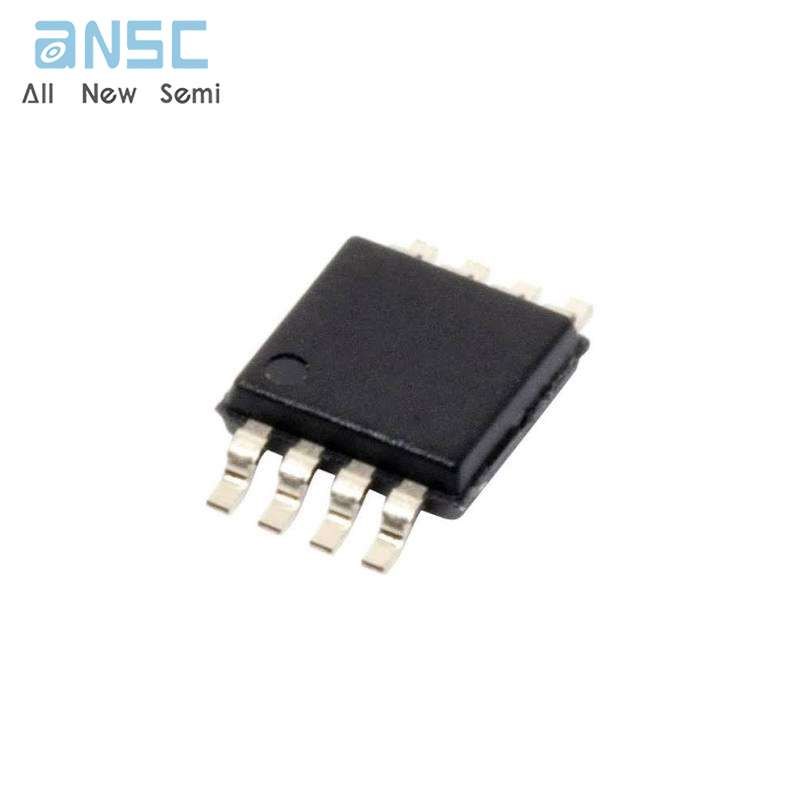

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce HMC423MS8ETR GaAs MMIC MIXER w/ INTEGRATED LO AMPLIFIER, 0.6 - 1.3 GHz MSOP8 spot stock
Manufacturer Product Number
HMC423MS8ETR
Description
HMC423MS8ETR GaAs MMIC MIXER w/ INTEGRATED LO AMPLIFIER, 0.6 - 1.3 GHz MSOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The HMC423MS8 & HMC423MS8E are double balanced mixer ICs with integrated LO amplifiers. This mixer can operate as an upconverter or downconverter between 0.6 GHz and 1.3 GHz. With the integrated LO amplifier, the mixer requires an LO drive level of only 0 dBm, and requires only 15mA from a single positive +3V rail. The mixer has 8 dB of conversion loss, an input P1dB of +8 dBm and an input third order intercept point of +15 dBm at 1.3 GHz.
Product Features
Integrated LO Amplifier w/ Pdiss <50 mW
Conversion Loss / Noise Figure: 8 dB
Low LO Drive: 0 dBm
Input IP3: +15 dBm
Single Positive Supply: 3V, 15 mA
Product Applications
The HMC423MS8 / HMC423MS8E is ideal for:
• Base Stations
• Portable Wireless
• CATV/DBS
• ISM
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HMC423MS8ETR |
| Category | RF and Wireless |
| RF Mixers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| RF Type | CATV |
| Frequency | 600MHz ~ 1.3GHz |
| Number of Mixers | 1 |
| Noise Figure | 8dB |
| Secondary Attributes | Up/Down Converter |
| Current - Supply | 15mA |
| Voltage - Supply | 3V |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | HMC423 |
Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
