SC4215ISTR Very Low Input /Very Low Dropout 2 Amp Regulator With Enable SOP8 spot stock

Product Descriptions

The SC4215 is a high performance positive voltage regulator designed for use in applications requiring very low Input voltage and very low dropout voltage at up to2 amperes. It operates with a Vin as low as 1.6V,with output voltage programmable as low as 0.8V. The SC4215 features ultra low dropout,ideal for applications where Vout is very close to Vin. Additionally, the SC4215 has an enable pin to further reduce power dissipation while shutdown. The SC4215 provides excellent regulation over variations in line, load and temperature.

The SC4215 is available in the SOIC-8EDP (Exposed Die Pad) package. The output voltage can be set via an external divider or to fixed settings of  0.8V and 2.5V depending on how the ADJ pin is configured.

Product Features

Input Voltage as low as 1.6V

500mV dropout @2A

Adjustable output from 0.8V

Over current and over temperature protection

Enable pin

10µA quiescent current in shutdown

Full industrial temperature range

Available in SOIC-8EDP Lead-free package,fully

WEEE and RoHS compliant

Product Applications

Telecom/Networking cards

Motherboards/Peripheral cards

Industrial Applications

Wireless infrastructure

Set top boxes

Medical equipment

Notebook computers

Battery powered systems

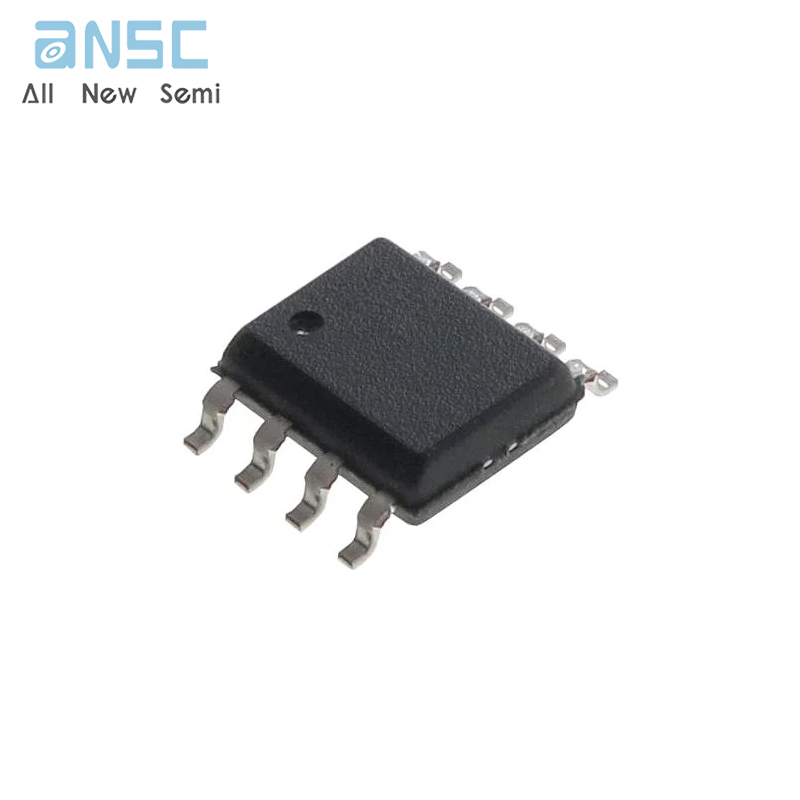

Product Photos

For more product information, please download the PDF
