Hot-selling and scarce G5692P11U 1MHz, All-Ceramic, 2A PWM Buck DC/DC Converter SOP8

Product Descriptions

The G5692 high-efficiency, DC/DC buck converter delivers up to 2A of output current. The device operates from an input voltage of 2.5V to 6V and provides an output voltage from 0.8V to VIN, making the G5692 ideal for on-board post-regulation applications.

The G5692 operate at a fixed frequency of 1MHz with an efficiency of up to 94 PERCENT. The high operating frequency minimizes the size of external components. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protections improve design reliability.

The G5692 are available in a space-saving 8-pin SOP and MSOP package.

Product Features

 Ceramic Input and Output Capacitors

Efficiency Up to 94 PERCENT

Guaranteed 2A Output Current

Operate from 2.5V to 6V Supply

Adjustable Output from 0.8V to VIN

Internal Soft-Start

Short-Circuit and Thermal-Overload Protection

RoHS Compliant

Product Applications

 ASIC/DSP/µP/FPGA Core and I/O Voltages

Set-Top Boxes

Cellular Base Stations

Networking and Telecommunications

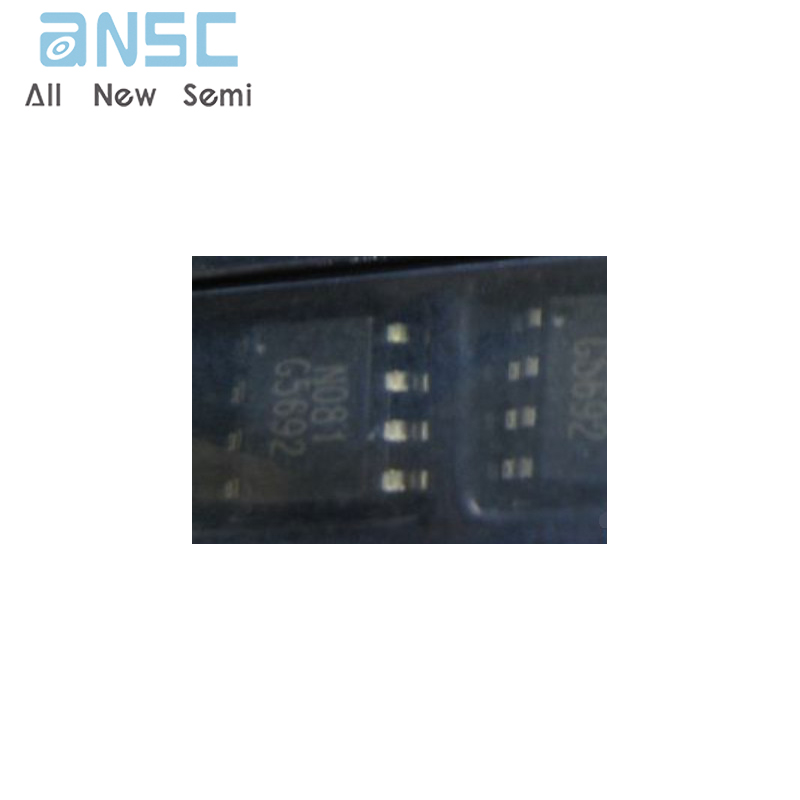

Product Photos

For more product information, please download the PDF
