Spot sales of TC1-1+ RF Transformer 50Ω 1.5 to 500 MHz SMD
Manufacturer Product Number
TC1-1+
Description
TC1-1+ RF Transformer 50Ω 1.5 to 500 MHz SMD
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
y Good Return Loss
y Usable Over 0.4-500 MHz
y Excellent Amplitude Unbalance, 0.1 dB Typ. and Phase Unbalance, 2 deg Typ. in 1 dB Bandwidth
y Plastic Base with Leads
y Aqueous Washable
Product Applications
y Balanced to Unbalanced Transformation
y Push-Pull Amplifiers
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TC1-1+ |
| Category | RF and Wireless |
| Balun | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Frequency Range | 1.5MHz ~ 500MHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 2° |
| Insertion Loss (Max) | 3dB |
| Return Loss (Min) | 10.1dB |
| Package / Case | 5-SMD Module |
| Mounting Type | Surface Mount |

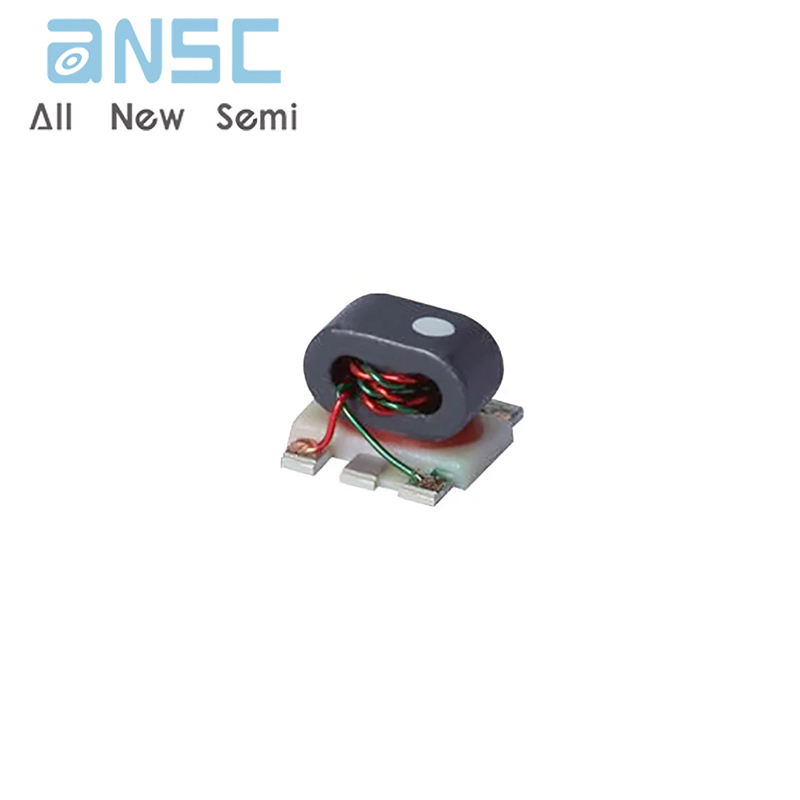

Product Photos
For more product information, please download the PDF
