Hot-selling and scarce AD7938BCPZ Parallel ADCs with a Sequencer LFCSP32 spot stock

Product Descriptions

The AD7938/AD7939 are 12-bit and 10-bit, high speed, lowpower, successive approximation (SAR) analog-to-digitalconverters (ADCs). The parts operate from a single 2.7 V to5.25 V power supply and feature throughput rates up to 1.5 MSPS. The parts contain a low noise, wide bandwidth,differential track -and -hold amplifier that can handle inputfrequencies up to 50 MHz

The AD7938/AD7939 feature eight analog input channels witha channel sequencer that allows a preprogrammed selection ofchannels to be converted sequentially. These parts can operatewith either single-ended, fully differential, or pseudodifferential analog inputs .

The conversion process and data acquisition are controlledusing standard control inputs that allow easy interfacing withmicroprocessors and DSPs . The input signal is sampled on thefalling edge of CONVST and the conversion is also initiated atthis point .

The AD7938/AD7939 have an accurate on-chip 2.5 V referencethat can be used as the reference source for the analog-to-digitalconversion . Alternatively, this pin can be overdriven to providean external reference .

Product Features

Throughput rate: 1.5 MSPS

Specified for VDD of 2.7 V to 5.25 V

Power consumption

6 mW maximum at 1.5 MSPS with 3 V supplies

13.5 mW maximum at 1.5 MSPS with 5 V supplies

8 analog input channels with a sequencer

Software-configurable analog inputs

8-channel single-ended inputs

4-channel fully differential inputs

4-channel pseudo differential inputs

7-channel pseudo differential inputs

Accurate on-chip 2.5 V reference

±0.2% maximum @ 25°C, 25 ppm/°C maximum

69 dB SINAD at 50 kHz input frequency

No pipeline delays

High speed parallel interface—word/byte modes

Full shutdown mode: 2 µA maximum

32-lead LFCSP and TQFP packages

Product Specification

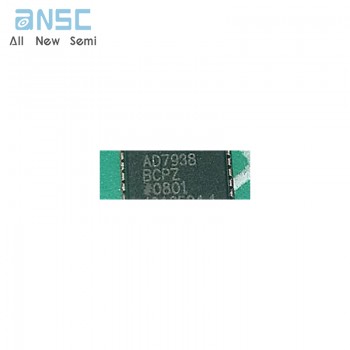

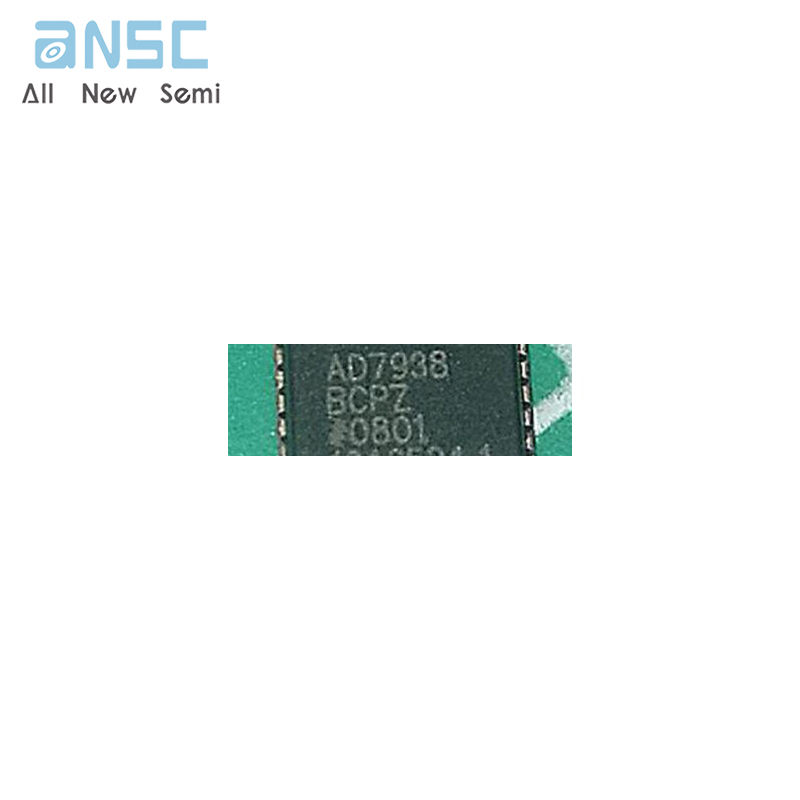

Product Photos

For more product information, please download the PDF
