Product Descriptions

AFEM-S102 FEM integrates an SP3T  antenna switch, TX Path Coupler and FBAR Co-Existence  Filter for applications with IEEE 802.11 b/g/n WiFi and  Bluetooth modulation. The FEM exhibits low Insertion  Loss and good match while providing high rejection to  meet stringent coexistence requirements. It utilizes Avago  Technologies proprietary GaAs pHEMT and FBAR fi lter  technology for superior performance across all operating  conditions.

The AFEM-S102 is packaged in a 2.2 x 2.2 x 0.55 mm  nominal size for space-constrained handset applications.

Product Features

 50 Ω all RF ports

 TX, RX, BT and ANT ports DC blocked

 Passband 2.4 – 2.5 GHz

 2.6 dB Max Insertion Loss (TX Path)

 35 dB Rejection in 2110 - 2170 MHz

 >40 dB TX Path Rejection at 2nd and 3rd Harmonic Bands

 Minimum 29 dB TX - RX Port Isolation

 2.75 V Minimum Control Voltage for WLAN TX & RX  Mode

 2.45 V Minimum Control Voltage for BT Mode

 <20 A Control Pin Current

 -18 dB TX Directional Coupling

 -30° C to +85° C operation

Product Applications

 Portable and Handset 802.11 b/g/n WiFi and BT  Applications

 Mobile Routers

Product Specification

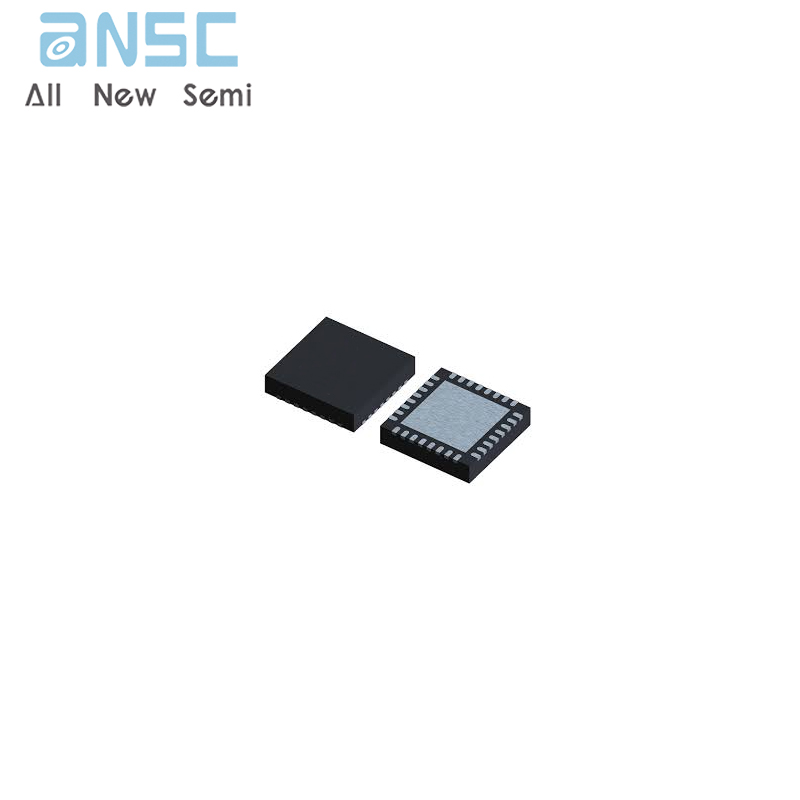

Product Photos
