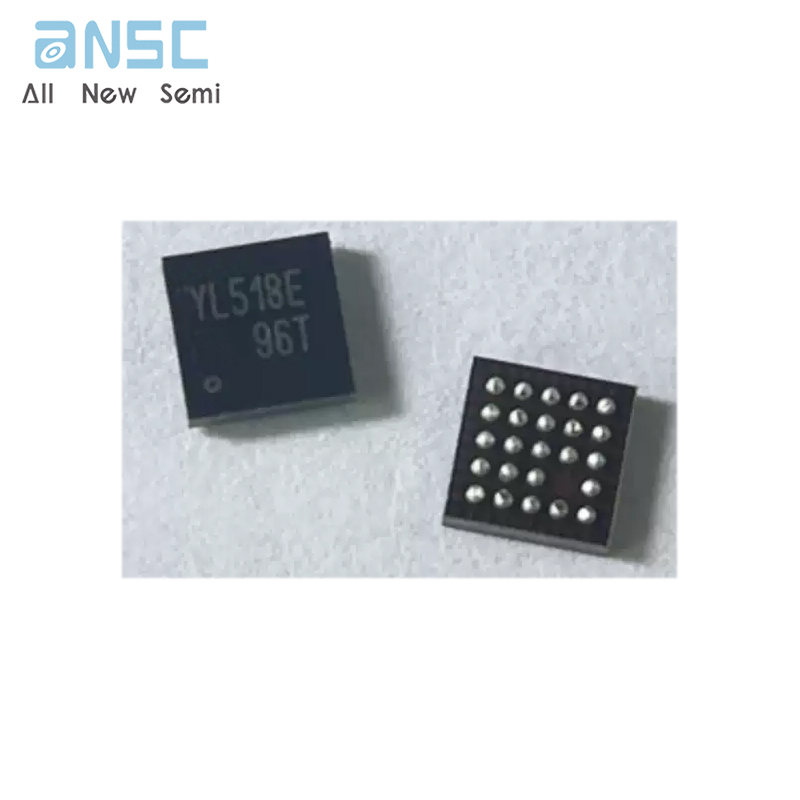

Hot-selling and scarce TS3A27518EZQSR 6-Channel 1:2 Multiplexer/Demultiplexer BGA spot stock

Product Descriptions

The TS3A27518E is a 6-bit 1-of-2 Mux/Demux designed to operate from 1.65 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction. The TS3A27518E has two control pins, each controlling three 1-of-2 muxes at the same time, and an enable pin that is used to put all outputs in high-impedance mode. The control pins are compatible with 1.8V logic thresholds and are backward compatible with 2.5 V and 3.3 V logic thresholds as well.

The TS3A27518E allows any SD, SDIO, and multimedia card host controllers to be expanded out to multiple cards or peripherals since the SDIO interface consists of 6-bits: CMD, CLK, and Data[0:3] signals. The TS3A27518E has two control pins that give additional flexibility to the user. For example, the ability to mux two different audio-video signals in equipment such as an LCD television,an LCD monitor, or a notebook docking station.

Product Features

• 1.65-V to 3.6-V Single-Supply Operation

• Isolation in Powerdown Mode, V+ = 0

• Low Capacitance Switches, 21.5 pF (Typical)

• Bandwidth up to 240 MHz for High-Speed Rail-to-Rail Signal Handling

• Crosstalk and Off Isolation of -62dB

• 1.8-V Logic Threshold Compatibility for Control Inputs

• 3.6-V Tolerant Control Inputs

• Latch-Up Performance Exceeds 100-mA Per JESD 78, Class II

• ESD Performance Tested Per JESD 22

– 2500-V Human-Body Model (A114-B, Class II)

– 1500-V Charged-Device Model (C101)

• ESD Performance: NC/NO Ports

– ±6-kV Contact Discharge (IEC 61000-4-2)

• 24-QFN (4 × 4 mm), 24-BGA (3 × 3 mm) and 24-TSSOP (7.9 × 6.6 mm) Packages

Product Applications

• SD/SDIO and MMC Two Port MUX

• PC VGA Video MUX/Video Systems

• Audio and Video Signal Routing

Product Specification

Product Photos

For more product information, please download the PDF
