Product Descriptions

The ADV7183A integrated video decoder automatically detectsand converts a standard analog baseband television signalcompatible with worldwide standards NTSC,PAL,and SECAMinto 4:2:2 component video data compatible with 16-/8-bitCCIR601/CCIR656 .

The advanced and highly flexible digital output interfaceenables performance video decoding and conversion in linelocked clock based systems.This makes the device ideally suitedfor a broad range of applications with diverse analog videocharacteristics,including tape based sources,broadcast sources,security/surveillance cameras,and professional systems .

The 10-bit accurate A/D conversion provides professionalquality video performance and is unmatched.This allows true8-bit resolution in the 8-bit output mode .

The 12 analog input channels accept standard Composite,SVideo,YPrPb video signals in an extensive number ofcombinations.AGC and clamp restore circuitry allow an input

video signal peak-to-peak range of 0.5 V up to 1.6 V.

​Alternatively,these can be bypassed for manual settings .

Product Features

Multiformat video decoder supports NTSC-(M, N, 4.43),

PAL-(B/D/G/H/I/M/N), SECAM

Integrates three 54 MHz, 10-bit ADCs

Clocked from a single 27 MHz crystal

Line-locked clock compatible (LLC)

Adaptive Digital Line Length Tracking (ADLLT™)

5-line adaptive comb filters

Proprietary architecture for locking to weak, noisy, and

unstable video sources such as VCRs and tuners

Subcarrier frequency lock and status information output

Integrated AGC with adaptive peak white mode

Macrovision® copy protection detection

CTI (chroma transient improvement)

DNR (digital noise reduction)

Multiple programmable analog input formats:

CVBS (composite video)

S-Video (Y/C)

YPrPb component (VESA, MII, SMPTE, and BetaCam)

12 analog video input channels

Automatic NTSC/PAL/SECAM identification

Digital output formats (8-bit or16-bit):

ITU-R BT.656 YCrCb 4:2:2 output + HS, VS, and FIELD

0.5 V to 1.6 V analog signal input range

Product Applications

DVD recorders

Video projectors

HDD-based PVRs/DVDRs

LCD TVs

Set-top boxes

Security systems

Digital televisions

AVR receiver

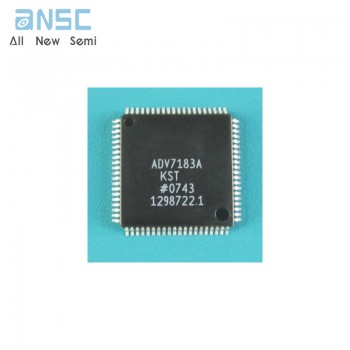

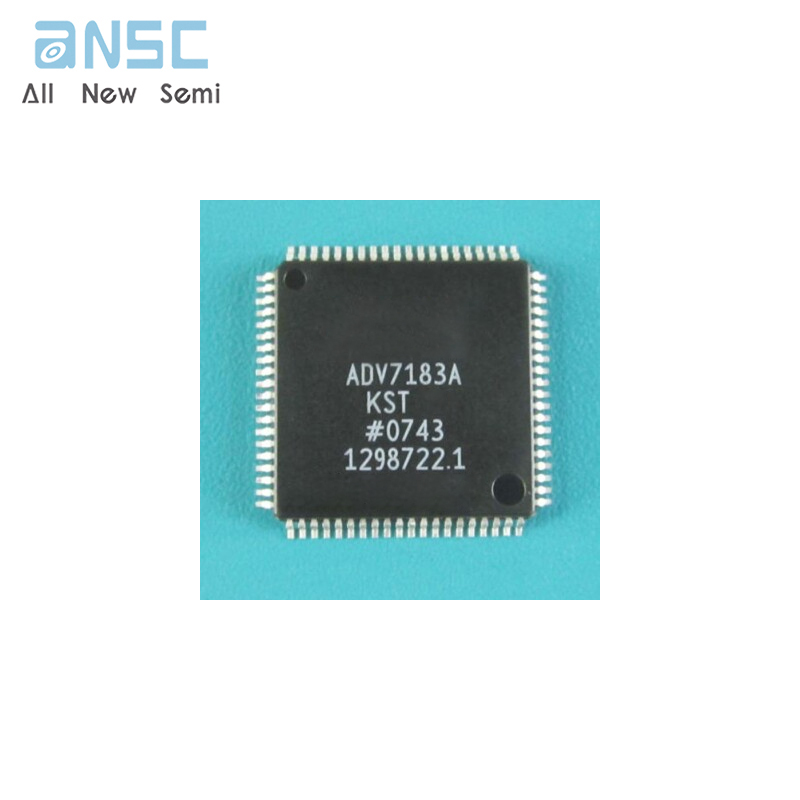

Product Photos

For more product information, please download the PDF
