Hot-selling and scarce LN60A01ES-LF-Z 600V, Triple N-Channel MOSFET with Common Gate Control SOP8
Manufacturer Product Number
LN60A01ES-LF-Z
Description
LN60A01ES-LF-Z 600V, Triple N-Channel MOSFET with Common Gate Control SOP8
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LN60A01 is a three channel, 600V NChannel, enhancement mode power FET manufactured in MPS's proprietary, highvoltage DMOS technology.
This advanced technology has been especially tailored to minimize the on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. This device is well suited for high efficiency switched mode power supplies and active power factor correction.
The LN60A01 is available in PDIP8 and SOIC8 package.
Product Features
• 600V Breakdown Voltage
• Three N-Channel MOSFETs
• One Gate control to All Three FETs
• Rds(on)=200Ω at Vgs=10V
• Switching Current>0.1A
• Fast Switching
Product Applications
• High Efficiency AC/DC Adaptor
• Offline Switching Power Supply
• Active Power Factor Correction
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LN60A01ES-LF-Z |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 3 N-Channel, Common Gate |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 80mA |
| Rds On (Max) @ Id, Vgs | 190Ohm @ 10mA, 10V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Power - Max | 1.3W |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LN60A |

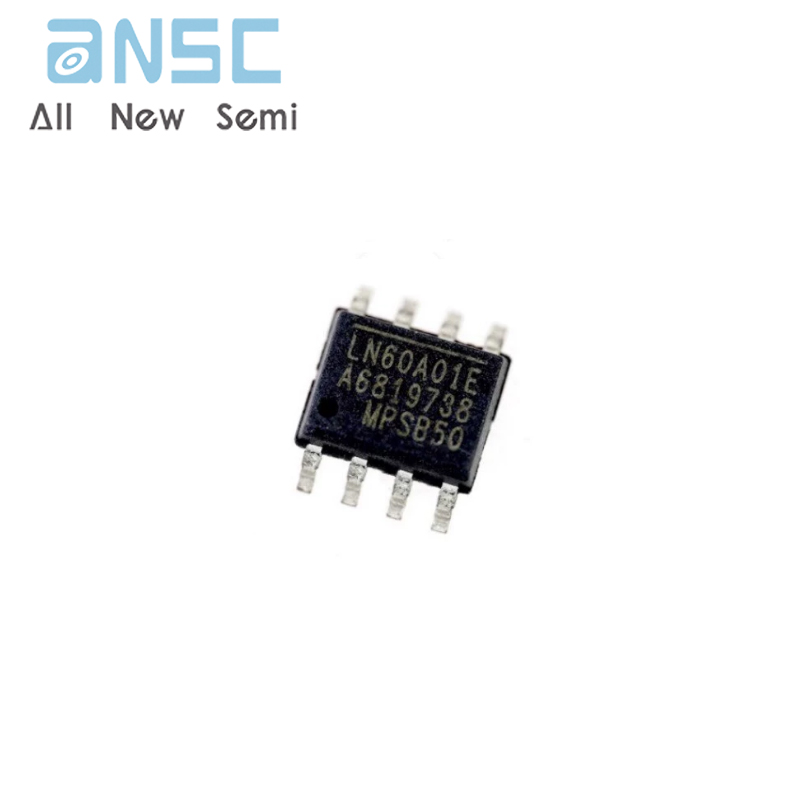

Product Photos
