Hot-selling and scarce IDT71V016SA10Y 3.3V CMOS Static RAM 1 Meg (64K x 16-Bit) SOJ44 spot stock
Manufacturer Product Number
IDT71V016SA10Y
Description
IDT71V016SA10Y 3.3V CMOS Static RAM 1 Meg (64K x 16-Bit) SOJ44 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The IDT71V016 is a 1,048,576-bit high-speed Static RAM organized as 64K x 16. It is fabricated using IDT’s high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for highspeed memory needs.
The IDT71V016 has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
The IDT71V016 is packaged in a JEDEC standard 44-pin Plastic SOJ, a 44-pin TSOP Type II, and a 48-ball plastic 7 x 7 mm FBGA.
Product Features
◆ 64K x 16 advanced high-speed CMOS Static RAM
◆ Equal access and cycle times
— Commercial: 10/12/15/20ns
— Industrial: 12/15/20ns
◆ One Chip Select plus one Output Enable pin
◆ Bidirectional data inputs and outputs directly LVTTL-compatible
◆ Low power consumption via chip deselect
◆ Upper and Lower Byte Enable Pins
◆ Single 3.3V power supply
◆ Available in 44-pin Plastic SOJ, 44-pin TSOP, and 48-Ball Plastic FBGA packages
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IDT71V016SA10Y |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Volatile |
| Memory Format | SRAM |
| Technology | SRAM - Asynchronous |
| Memory Size | 1Mbit |
| Memory Organization | 64K x 16 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 10ns |
| Access Time | 10 ns |
| Voltage - Supply | 3.15V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-BSOJ (0.400", 10.16mm Width) |
| Supplier Device Package | 44-SOJ |
| Base Product Number | IDT71V016 |

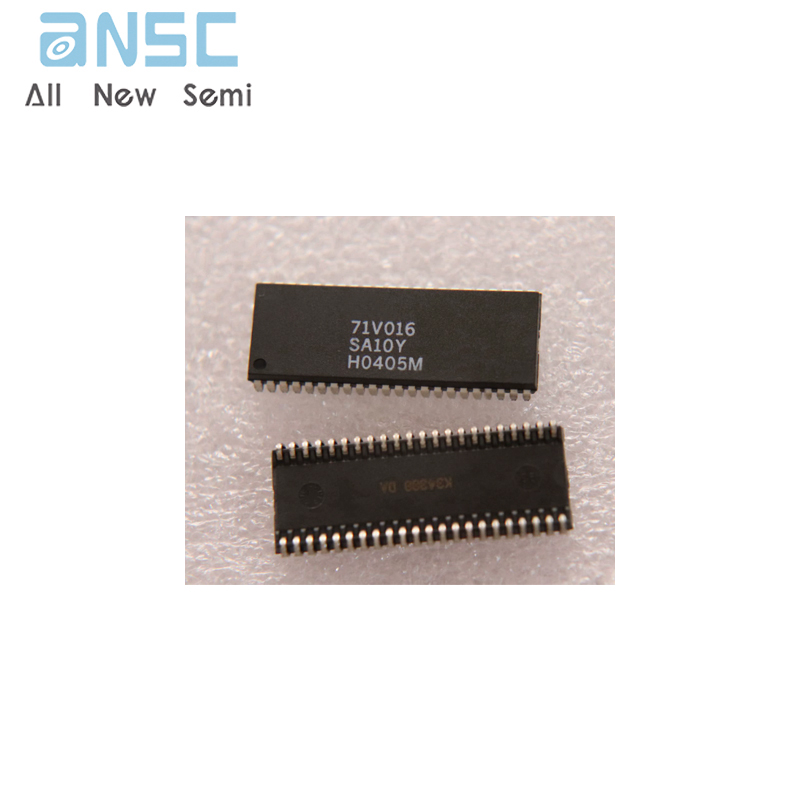

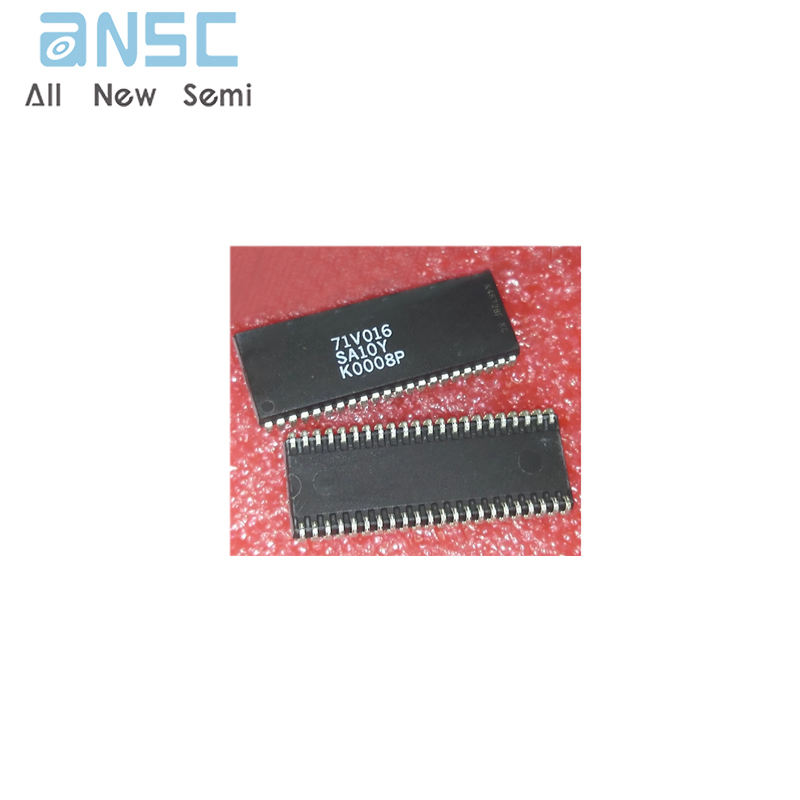

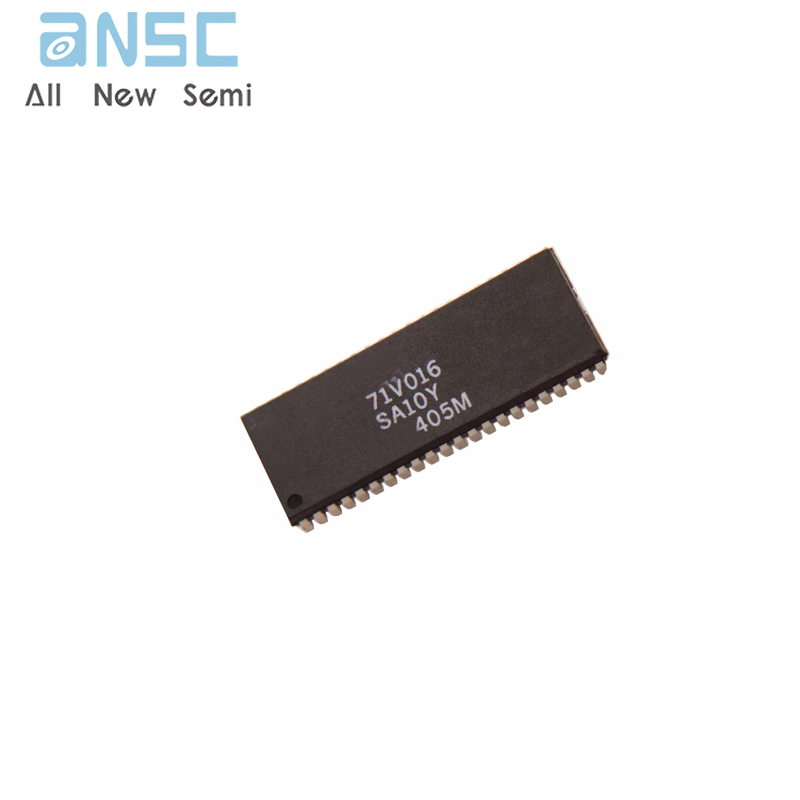

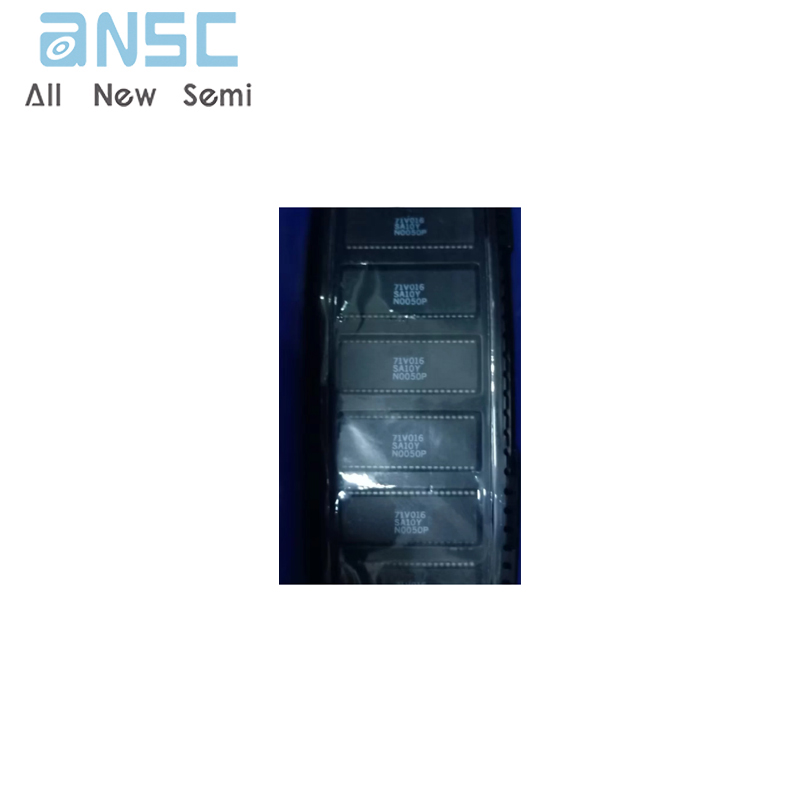

Product Photos
For more product information, please download the PDF
