Hot-selling and scarce SN74AUP1G125DCKR LOW-POWER SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT SC70-5 spot stock
Manufacturer Product Number
SN74AUP1G125DCKR
Description
SN74AUP1G125DCKR LOW-POWER SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT SC70-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static and dynamic power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity.
Product Features
• Available in the Texas Instruments NanoStar™ and NanoFree™ Packages
• Low Static-Power Consumption (ICC = 0.0 µA Max)
• Low Dynamic-Power Consumption (Cpd = 4 pF Typ at 3.3 V)
• Low Input Capacitance (Ci= 1.5 pF Typ)
• Low Noise – Overshoot and Undershoot <10 percent of VCC
• Input-Disable Feature Allows Floating Input Conditions
• Ioff Supports Partial-Power-Down Mode Operation
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• tpd = 4.6 ns Max at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Humna-Body Model (A114-B, Class II)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101
• ESD Protection Exceeds ±5000 V With Human-Body Model
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74AUP1G125DCKR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74AUP |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Output Type | 3-State |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 0.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | 74AUP1G125 |

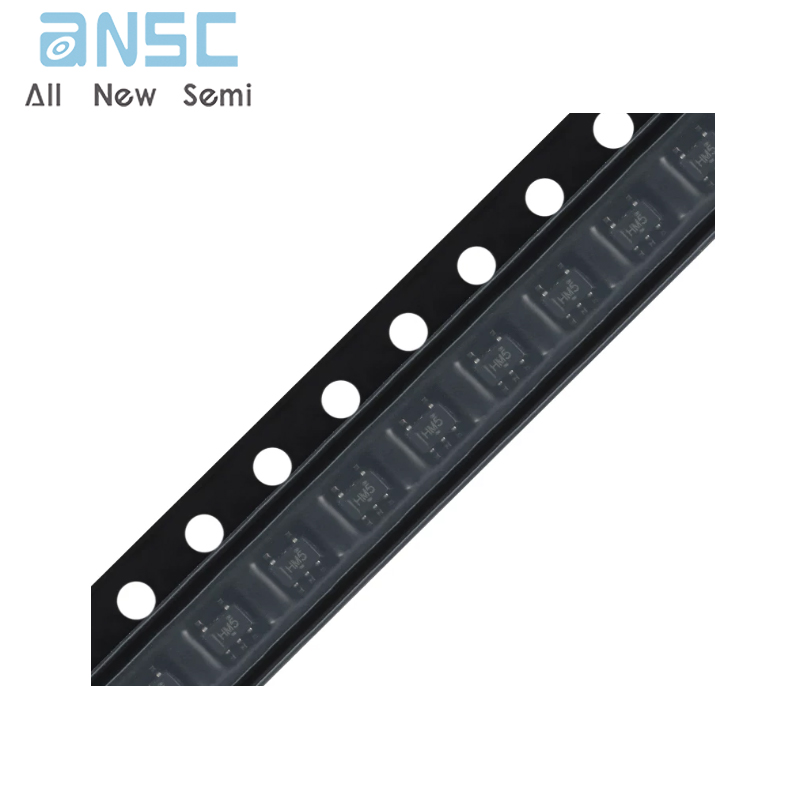

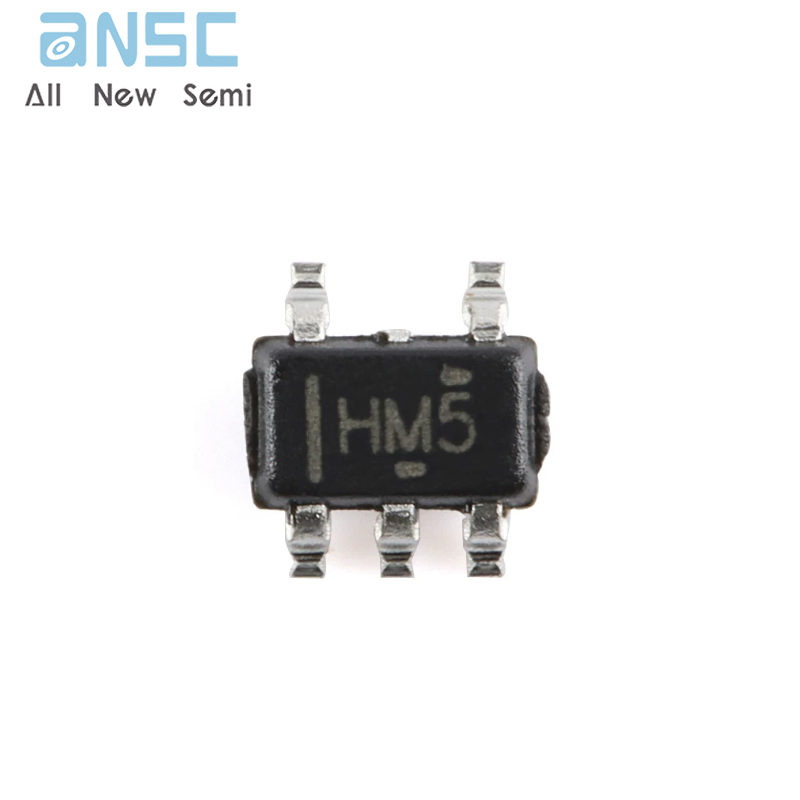

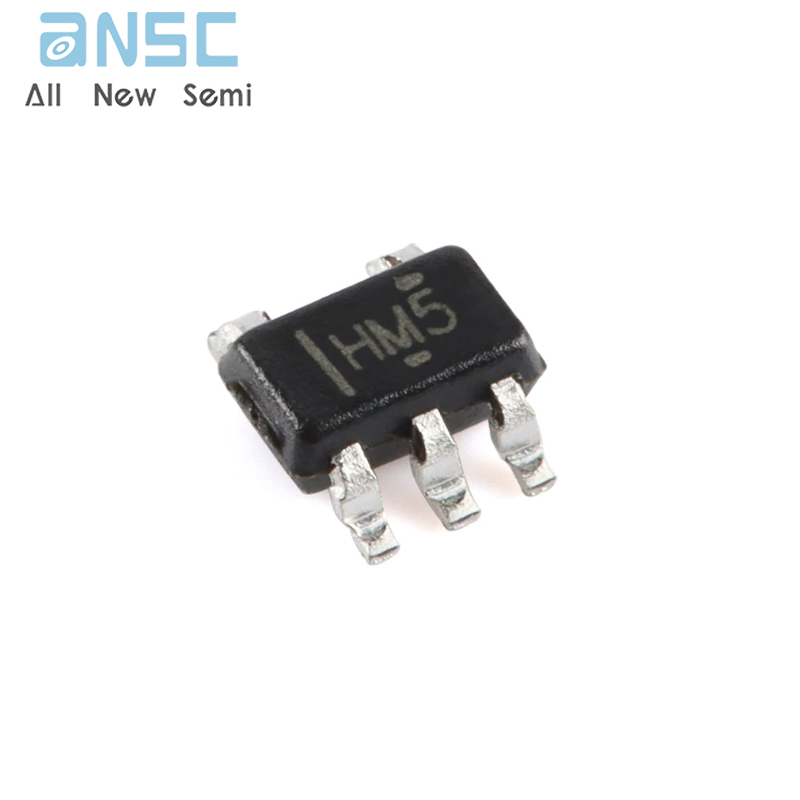

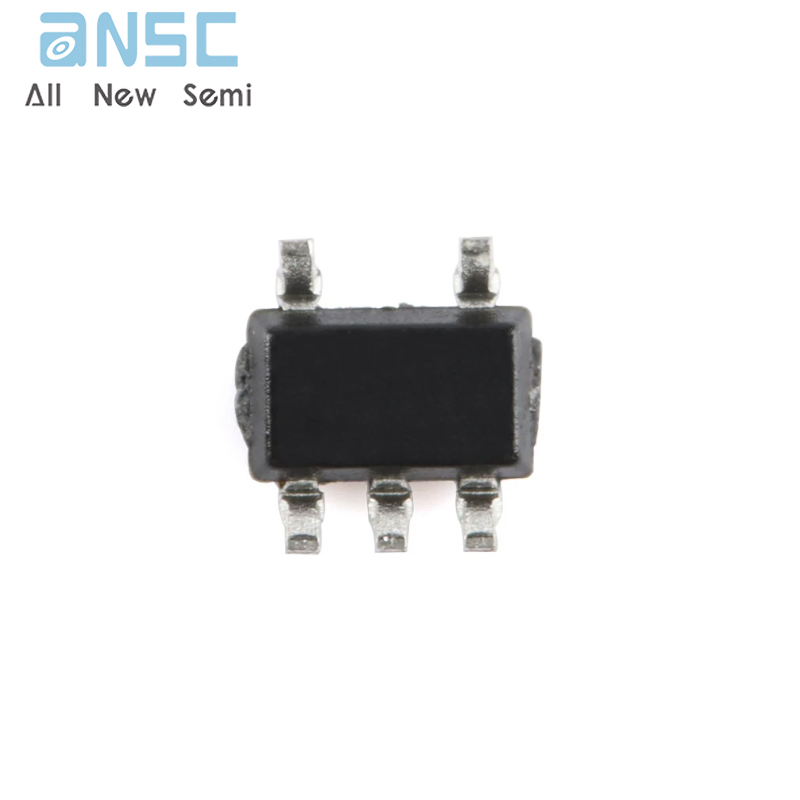

Product Photos
For more product information, please download the PDF
