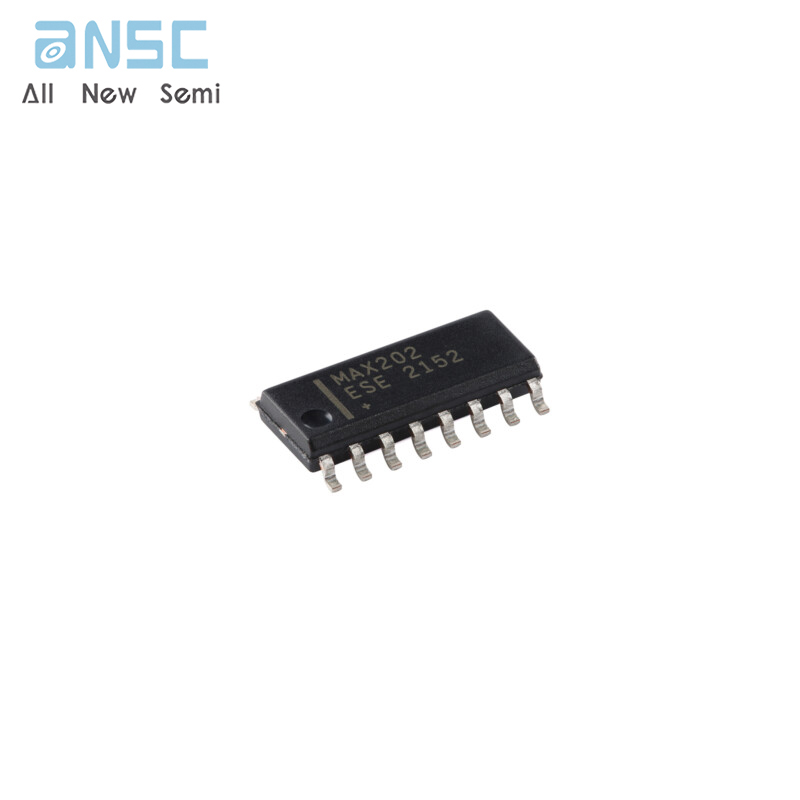

Hot-selling and scarce MAX202ESE-T +5V, RS-232 Transceivers with 0.1μF External Capacitors SOP16 spot stock
Manufacturer Product Number
MAX202ESE-T
Description
MAX202ESE-T +5V, RS-232 Transceivers with 0.1μF External Capacitors SOP16 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
MAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation.
The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification.
The MAX211 and MAX213 are available in a 28-pin, wide small-outline (SO) package and a 28-pin shrink smalloutline (SSOP) package, which occupies only 40% of the area of the SO. The MAX207 is available in a 24-pin SO package and a 24-pin SSOP. The MAX203 and MAX205 use no external components and are recommended for applications with limited circuit board space.
Product Features
● Saves Board Space
• Integrated Charge Pump Circuitry Eliminates the Need for a Bipolar ±12V Supply Enables Single Supply Operation From Either +5V or 9V to +12V
• Integrated 0.1μF Capacitors (MAX203, MAX205)
• 24 pin SSOP Package Saves Up to 40% Versus SO Package
● Saves Power for Longer Battery Operation
• 5μW Shutdown Mode (MAX200, MAX205, MAX206, MAX211)
• 75μW Ring Indicator Monitoring with Two Active Receivers (MAX213)
Product Applications
● Battery-Powered Equipment
● Handheld Equipment
● Portable Diagnostics Equipment
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX202ESE-T |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 46055 |
| Duplex | Full |
| Receiver Hysteresis | 500 mV |
| Data Rate | 120Kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MAX202 |
