Hot-selling and scarce MP5003EQ-LF-Z 3.3V, 1A-3A Programmable Current Limit Switch with Auto Enable QFN

Product Descriptions

The MP5003 is a protection device designed to protect circuitry on the output (VOUT) from transients on the input (VIN). It also protects VIN from undesired shorts and transients coming from the load.

At start up, inrush current is limited by limiting the slew rate at VOUT. The slew rate is controlled by a small capacitor at the dv/dt pin. The dv/dt pin has an internal circuit that allows the customer to float this pin (no connect) and still receive a 1.1ms ramp time at VOUT.

The max load at the output (VOUT) is current limited. This is accomplished by utilizing a sense FET topology. The magnitude of the current limit is controlled by an external resistor connected between the ILIMIT pins.

An internal charge pump drives the gate of the power device, allowing a very low on-resistance DMOS power FET of just 44mΩ.

VOUT is protected from VIN being too low or too high. Under Voltage Lockout (UVLO) assures that the input is above the minimum operating threshold, before the power device is turned on. If VIN goes above the high output threshold, the output voltage will be limited.

Product Features

 Integrated 44mΩ Power FET

 Enable/Fault Pin

 Adjustable Slew Rate for Output Voltage

 Adjustable Current Limit: 1A-3A

 Automatically Startup after Thermal Protection

 Over Voltage Limit

Product Applications

 Hot Swap

 PC Cards

 Cell Phones

 Laptops

Product Specification

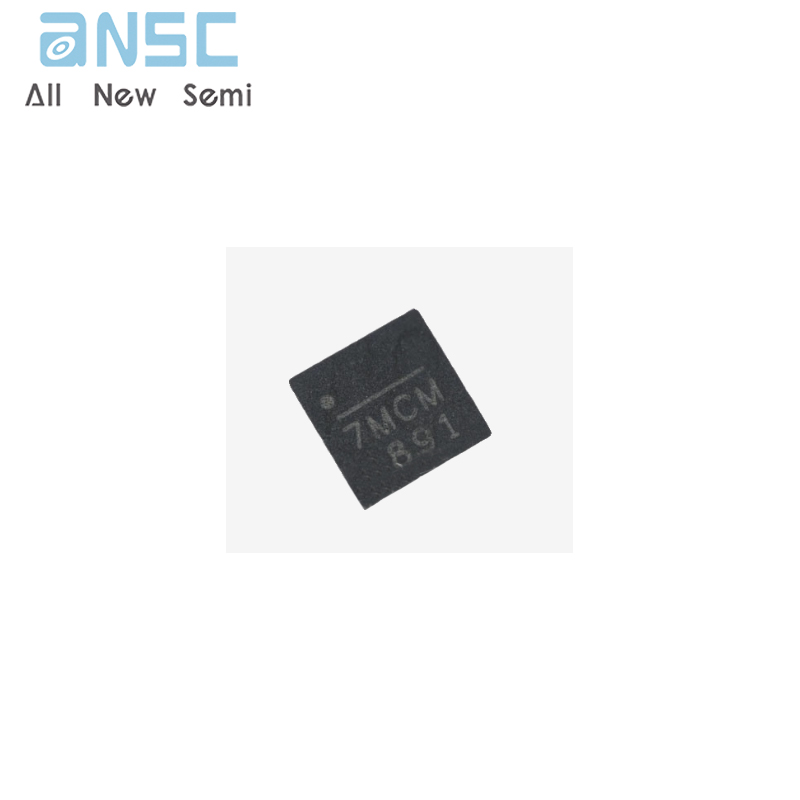

Product Photos

For more product information, please download the PDF
