Spot sales of MAX758ACPA Adjustable Step-Down Current-Mode PWM Regulators DIP-8

Product Descriptions

The MAX750A/MAX758A are adjustable-output, CMOS, step-down, DC-DC switching regulators. The MAX758A accepts inputs from 4V to 16V and delivers 750mA, while the MAX750A accepts inputs from 4V to 11V and delivers 450mA. Typical efficiencies are 85% to 90 percent. Typical quiescent current is 1.7mA, or only 6µA in shutdown mode. The output does not exhibit any ripple at subharmonics of the switching frequency over its specified range.

Pulse-width-modulation (PWM) current-mode control provides precise output regulation and excellent transient responses. Output voltage accuracy is guaranteed to be ±4.5 percent plus feedback-resistor tolerance over line, load, and temperature variations. Fixed-frequency switching and absence of subharmonic ripple allows easy filtering of output ripple and noise, as well as the use of small external components. These regulators require only a single inductor value to work in most applications, so no inductor design is necessary.

Product Features

♦ Up to 750mA Load Currents

♦ 160kHz High-Frequency, Current-Mode PWM

♦ 85 percent to 96 percent Efficiencies

♦ 33µH or 100µH Pre-Selected Inductor Value, No Component Design Required

♦ 1.7mA Quiescent Supply Current

♦ 6µA Shutdown Supply Current

♦ Adjustable Output Voltage

♦ Overcurrent, Soft-Start, and Undervoltage Lockout Protection

♦ Cycle-by-Cycle Current Limiting

♦ 8-Pin DIP/SO Packages (MAX750A)

Product Applications

Cellular Phones & Radios

Portable Communications Equipment

Portable Instruments

Computer Peripherals

Product Specification

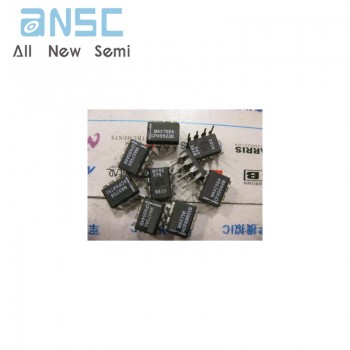

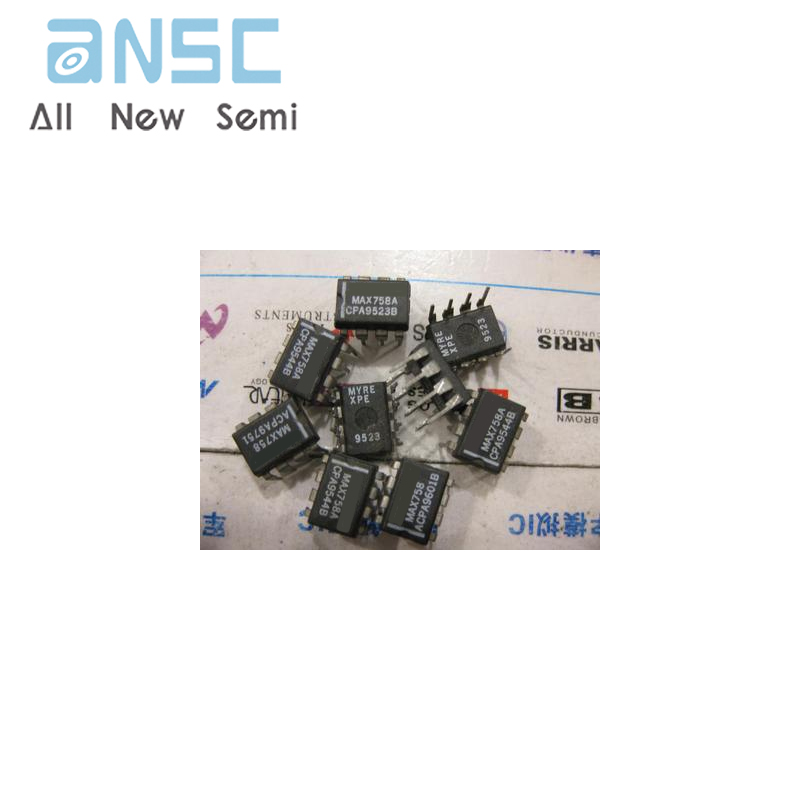

Product Photos

For more product information, please download the PDF
