Hot-selling and scarce EPM7128STC100-15N Complex Programmable Logic Devices IC QFP spot stock
Manufacturer Product Number
EPM7128STC100-15N
Description
EPM7128STC100-15N Complex Programmable Logic Devices IC QFP spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
■ High-performance, EEPROM-based programmable logic devices (PLDs)based on second-generation MAX® architecture
■ 5.0-V in-system programmability (ISP) through the built-in IEEE Std.1149.1 Joint Test Action Group (JTAG)interface available in MAX 7000S devices
– ISP circuitry compatible with IEEE Std . 1532
■ Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices
■ Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells
■ Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates
■ 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)
■ PCI-compliant devices available
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-EPM7128STC100-15N |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | - |
| Series | MAX® 7000S |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Programmable Type | In System Programmable |
| Delay Time tpd(1) Max | 15 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | 8 |
| Number of Macrocells | 128 |
| Number of Gates | 2500 |
| Number of I/O | 84 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP |
| Supplier Device Package | 100-TQFP (14x14) |
| Base Product Number | EPM7128 |

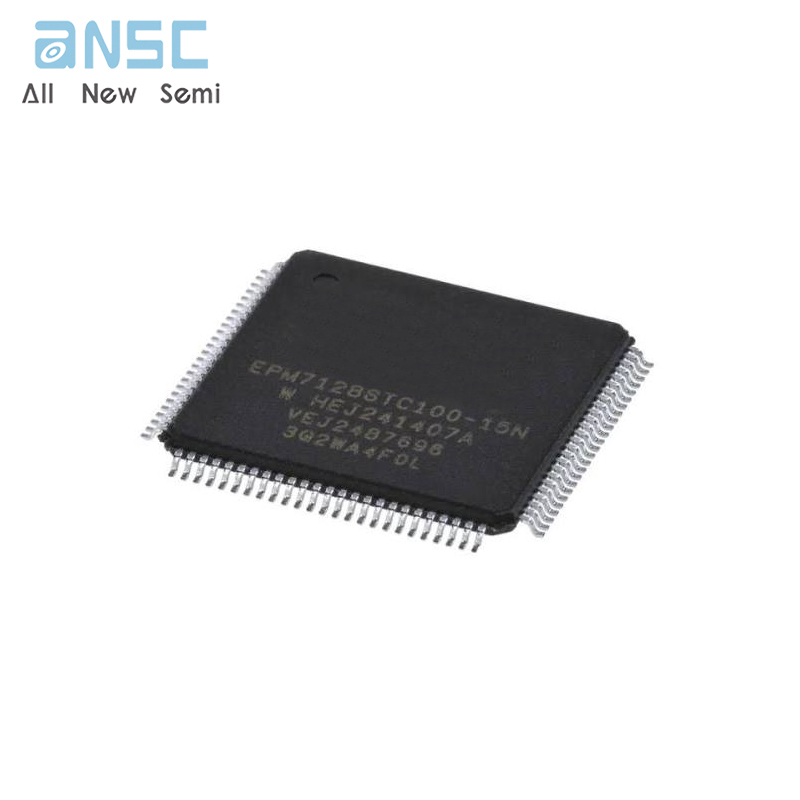

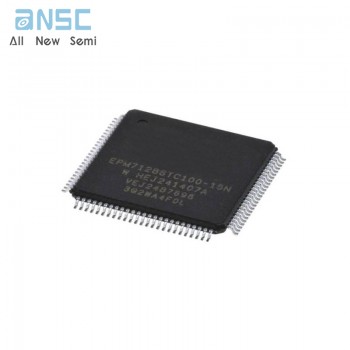

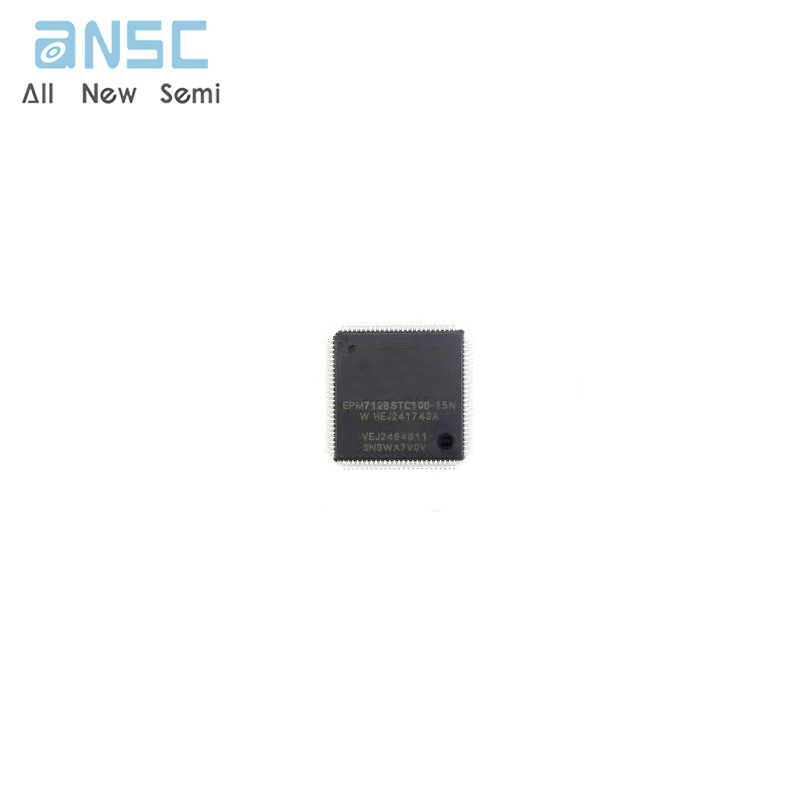

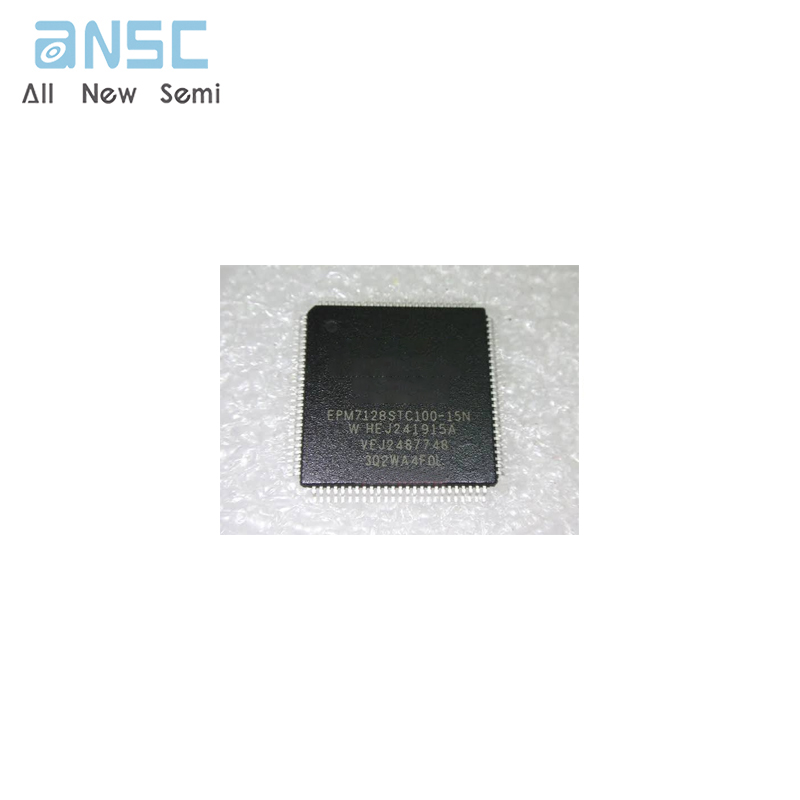

Product Photos
For more product information, please download the PDF
