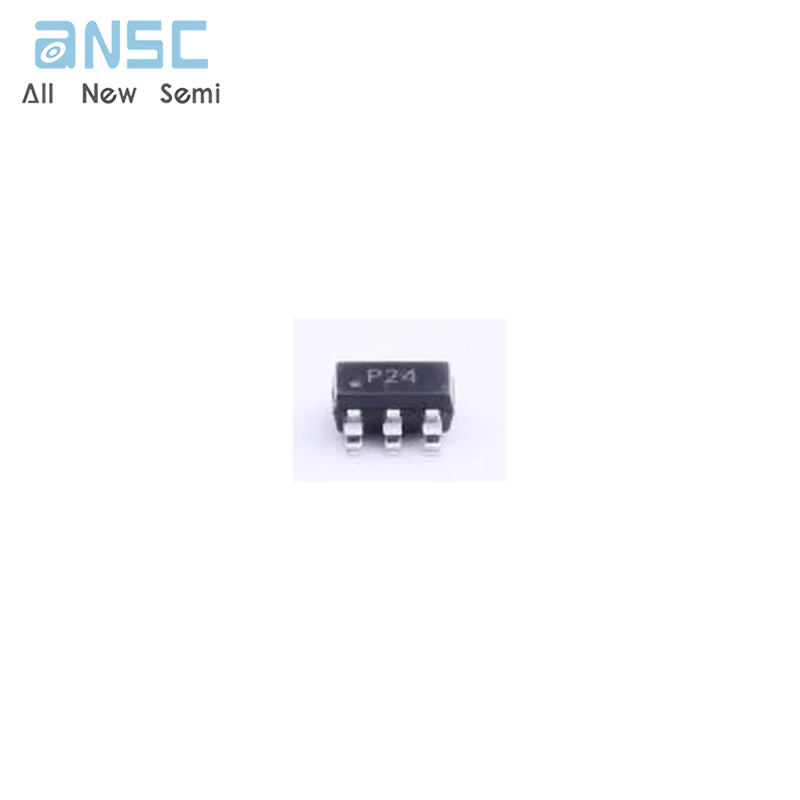

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SDP0240T023G6RP 19V Off-State 30 A Ipp TVS Thyristor SOT-23-6 spot stock
Manufacturer Product Number
SDP0240T023G6RP
Description
SDP0240T023G6RP 19V Off-State 30 A Ipp TVS Thyristor SOT-23-6 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This new SDP Biased series provides overvoltage protection for applications such as VDSL2, ADSL2, and ADSL2+ with minimal effect on data signals. This silicon design innovation results in a capacitive loading characteristic that is compatible with these high bandwidth applications. This surface mount SOT23-6 package provides a surge capability that exceeds most worldwide standards and recommendations for lightning surge withstand capability of tertiary protectors.
Product Features
■ Compatible with VDSL2 (30MHz) and with G.fast (106MHz)
■ Balanced overvoltage protection
■ Low distortion
■ Low insertion loss
■ Low profile
■ Response time under 500ns
■ RoHS Compliant
■ Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD- 609A.01)
Product Applications
■ ANSI C62.41
■ IEC 61000-4-12
■ IEC 61000-4-5, 30A (tP=8/20μs) 2nd edition
■ IEC 61000-4-2 level 4
■ 15kV (air discharge)
■ 8kV (contact discharge)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SDP0240T023G6RP |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| Thyristors | |
| Manufacturer | - |
| Series | SDP |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Off State | 19V |
| Current - Peak Pulse (8/20µs) | 30 A |
| Current - Hold (Ih) | 40 mA |
| Number of Elements | 1 |
| Capacitance | 3pF |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
Product Photos
For more product information, please download the PDF
