Hot-selling and scarce MP1472GJ-Z 2A, 18V Synchronous Rectified Step-Down Converter SOT23

Product Descriptions

The MP1472 is a monolithic synchronous buck regulator. The device integrates a 175mΩ highside MOSFET and a 115mΩ low-side MOSFET that provide 2A of continuous load current over a wide input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit.

An adjustable soft-start prevents inrush current at turn-on, and in shutdown mode the supply current drops to 1µA.

This device, available in an 8-pin TSOT23-8 package, provides a very compact solution with minimal external components.

Product Features

 2A Output Current

 Wide 4.75V to 18V Operating Input Range

 Integrated Power MOSFET Switches

 Output Adjustable from 0.923V to 15V

 Up to 95 percent Efficiency

 Programmable Soft-Start

 Stable with Low ESR Ceramic Output Capacitors

 Fixed 340kHz Frequency

 Cycle-by-Cycle Over Current Protection

 Input Under Voltage Lockout

 8–Pin TSOT23-8

Product Applications

 Distributed Power Systems

 Networking Systems

 FPGA, DSP, ASIC Power Supplies

 Green Electronics/ Appliances

 Notebook Computers

Product Specification

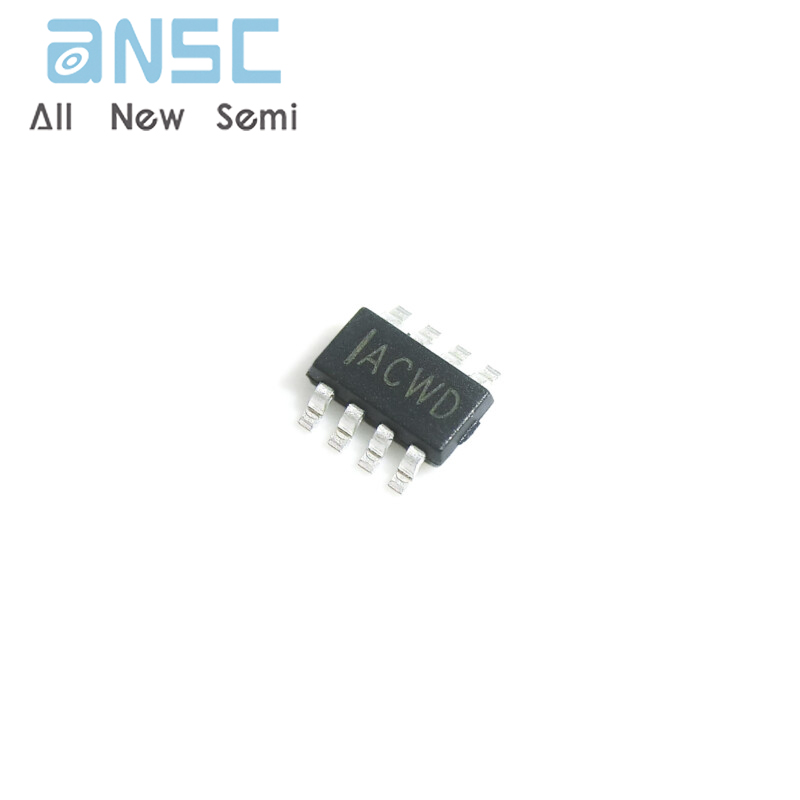

Product Photos

For more product information, please download the PDF
