Hot-selling and scarce MP2270DH-LF-Z 1.8A, 24V, 700kHz Step-Down Converter MSOP-10

Product Descriptions

The MP2270 is a monolithic step-down switch mode converter with a built-in internal power MOSFET. It achieves 1.8A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.

The MP2270 requires a minimum number of readily available standard external components.

The MP2270 is available in a 10-pin exposed pad MSOP package.

Product Features

• 1.8A Continuous Output Current

• 0.3Ω Internal Power MOSFET Switch

• Stable with Low ESR Output Ceramic Capacitors

• 0.1μA Shutdown Mode

• Fixed 700kHz Frequency

• Thermal Shutdown

• Cycle-by-Cycle Over Current Protection

• Wide 4.5V to 24V Operating Input Range

• Output Adjustable from 0.81V to 20V

• Available in a 10-pin Exposed Pad MSOP Package

Product Applications

• Broadband Communications Equipment

• Digital Entertainment Systems

• Distributed Power Systems

• Battery Charger

• Pre-Regulator for Linear Regulators

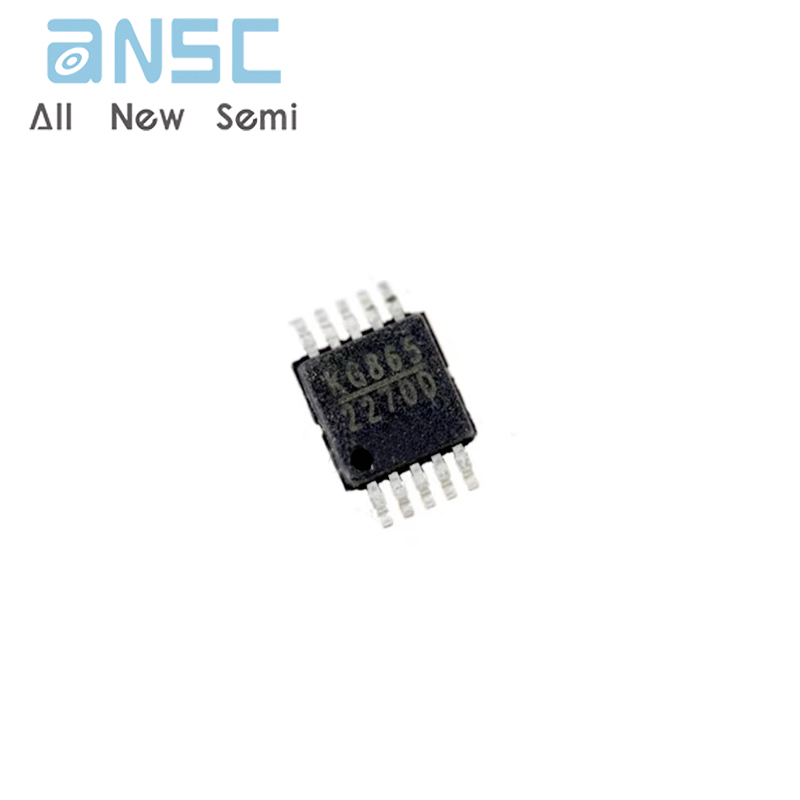

Product Photos

For more product information, please download the PDF
