Hot-selling and scarce SI4848DY-T1-E3 N-Channel 150 V (D-S) MOSFET SOP8 spot stock
Manufacturer Product Number
SI4848DY-T1-E3
Description
SI4848DY-T1-E3 N-Channel 150 V (D-S) MOSFET SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Halogen-free According to IEC 61249-2-21 Definition
• Extremely Low Qgd for Switching Losses
• 100 PERCENT Rg Tested
• 100 PERCENT Avalanche Tested
• Compliant to RoHS Directive 2002/95/EC
Product Applications
• Primary Side Switch
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SI4848DY-T1-E3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 2.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 3.5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Vgs (Max) | ±20V |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | SI4848 |

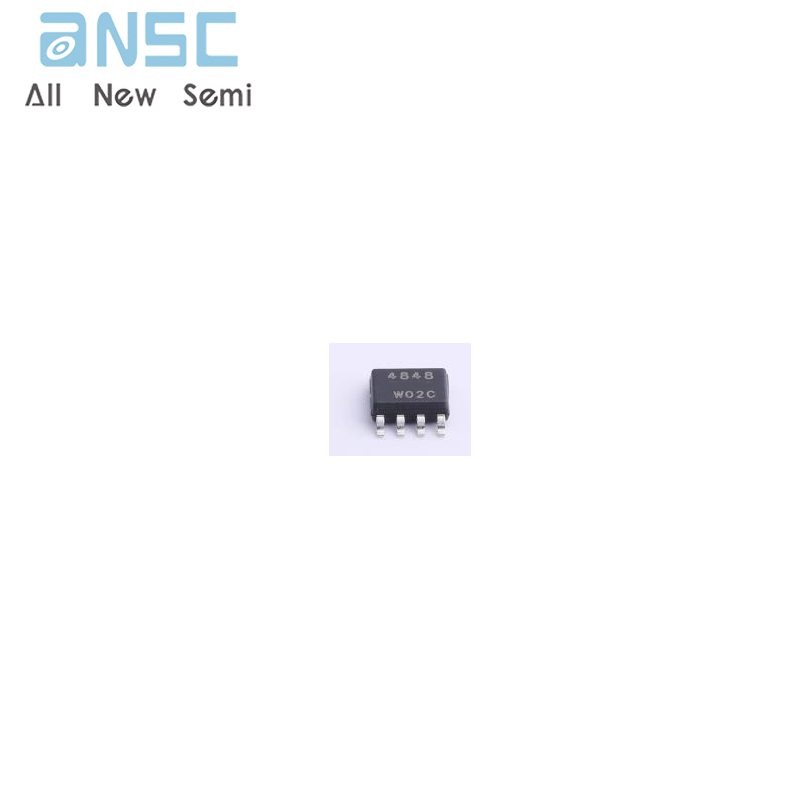

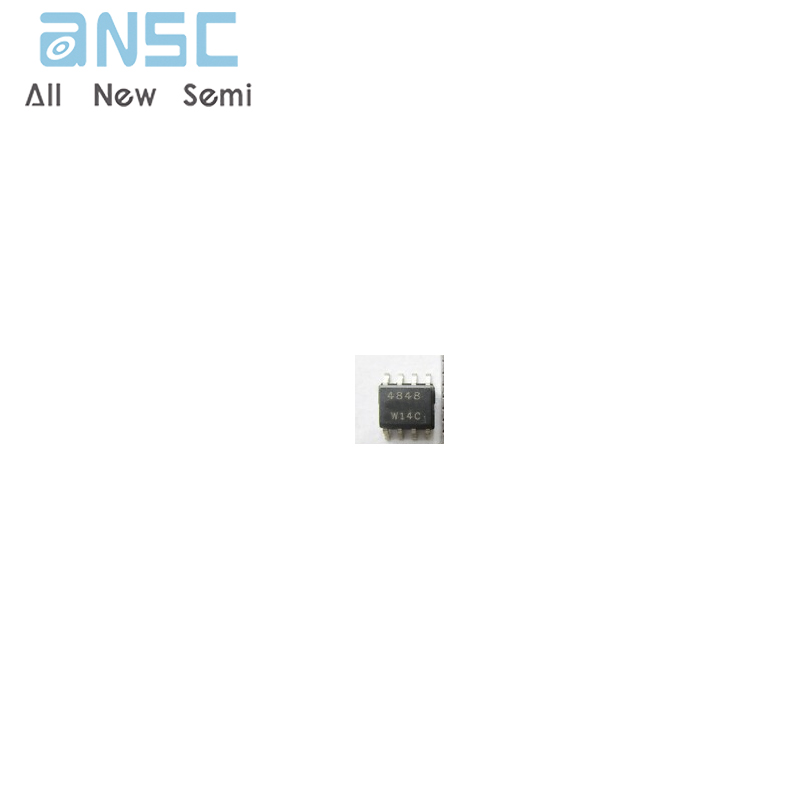

Product Photos
For more product information, please download the PDF
