Spot sales of SN74ABT273PWR OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR TSSOP-20
Manufacturer Product Number
SN74ABT273PWR
Description
SN74ABT273PWR OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR TSSOP-20
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ’ABT273 are 8-bit positive-edge-triggered D-type flip-flops with a direct clear (CLR) input. They are particularly suitable for implementing buffer and storage registers, shift registers, and pattern generators.
Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either the high or low level, the D input signal has no effect at the output.
The SN54ABT273 is characterized for operation over the full military temperature range of –55°C to 125°C. The SN74ABT273 is characterized for operation from –40°C to 85°C.
Product Features
State-of-the-Art EPIC-ΙΙB BiCMOS Design Significantly Reduces Power Dissipation
Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
High-Drive Outputs (–32-mA IOH, 64-mA IOL)
Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages, Ceramic Chip Carriers (FK), Plastic (N) and Ceramic (J) DIPs, and Ceramic Flat (W) Package
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74ABT273PWR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74ABT |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 6.8ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 400 µA |
| Input Capacitance | 7 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74ABT273 |

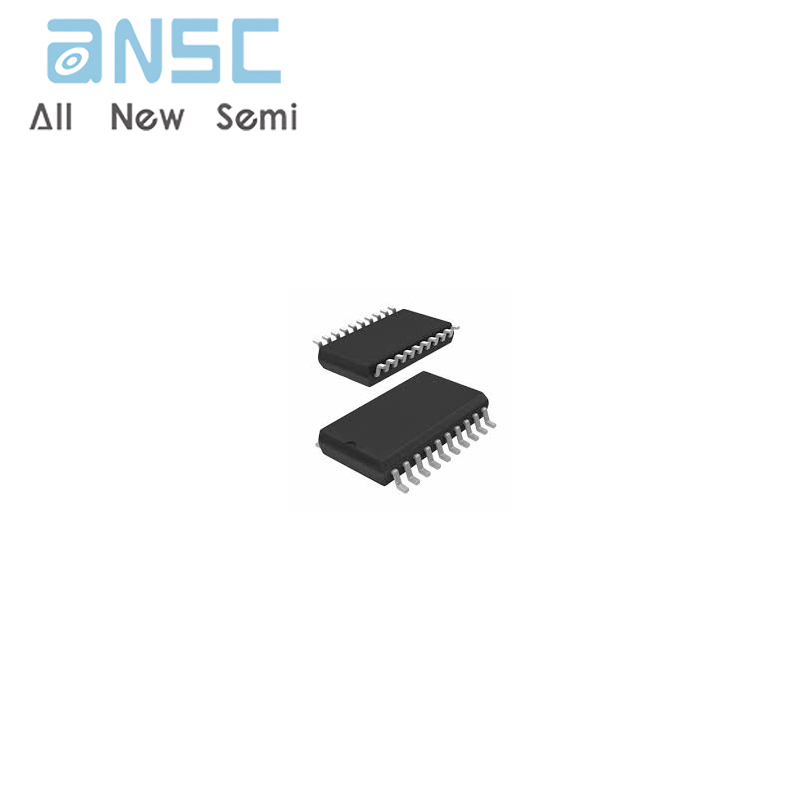

Product Photos
