Hot-selling and scarce IRFHM9331TRPBF Low Thermal Resistance to PCB DFN spot stock
Manufacturer Product Number
IRFHM9331TRPBF
Description
IRFHM9331TRPBF Low Thermal Resistance to PCB DFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Applications
System/load switch
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IRFHM9331TRPBF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id)@ 25°C | 11A (Ta), 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 20V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 11A, 20V |
| Vgs(th) (Max) @ Id | 2.4V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1543 pF @ 25 V |
| Power Dissipation (Max) | 2.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (3x3) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | IRFHM9331 |

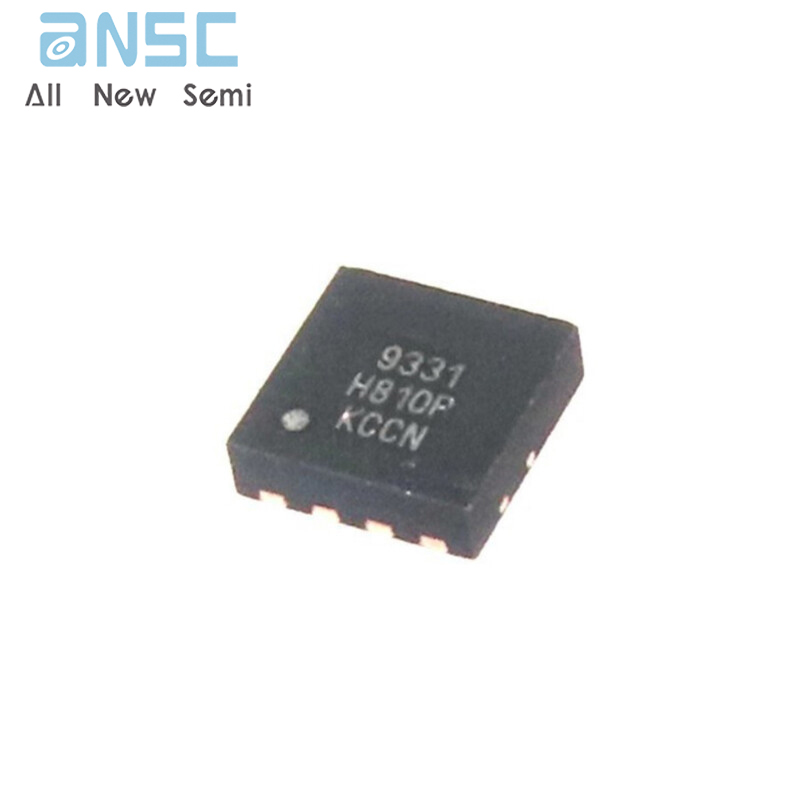

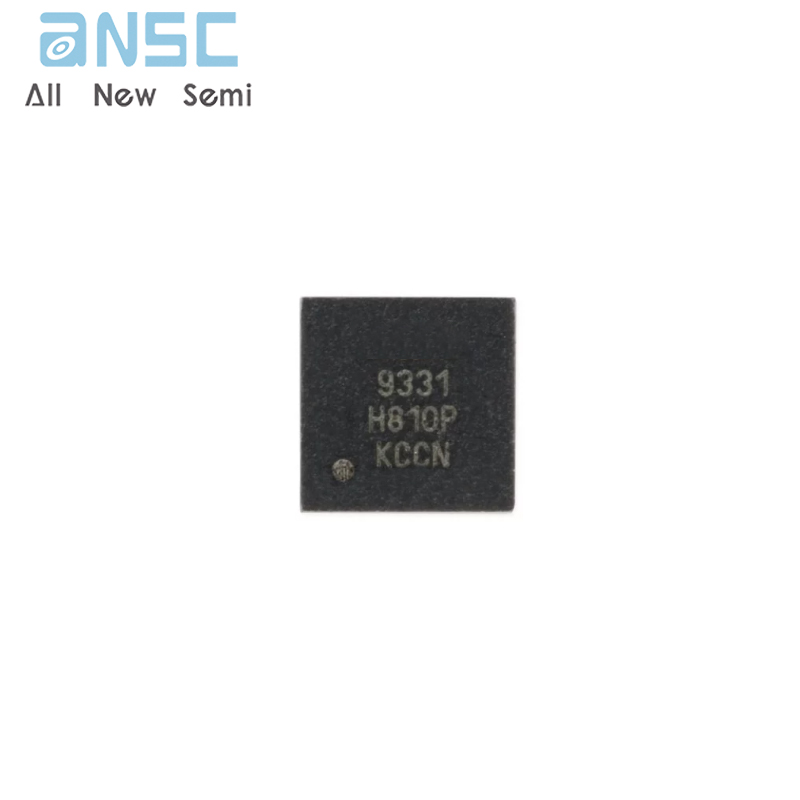

Product Photos
For more product information, please download the PDF
Other Products In The same category:
IRFHM9331TRPBF Low Thermal Resistance to PCB DFN spot stock
1974In stock:
Can ship immediately
