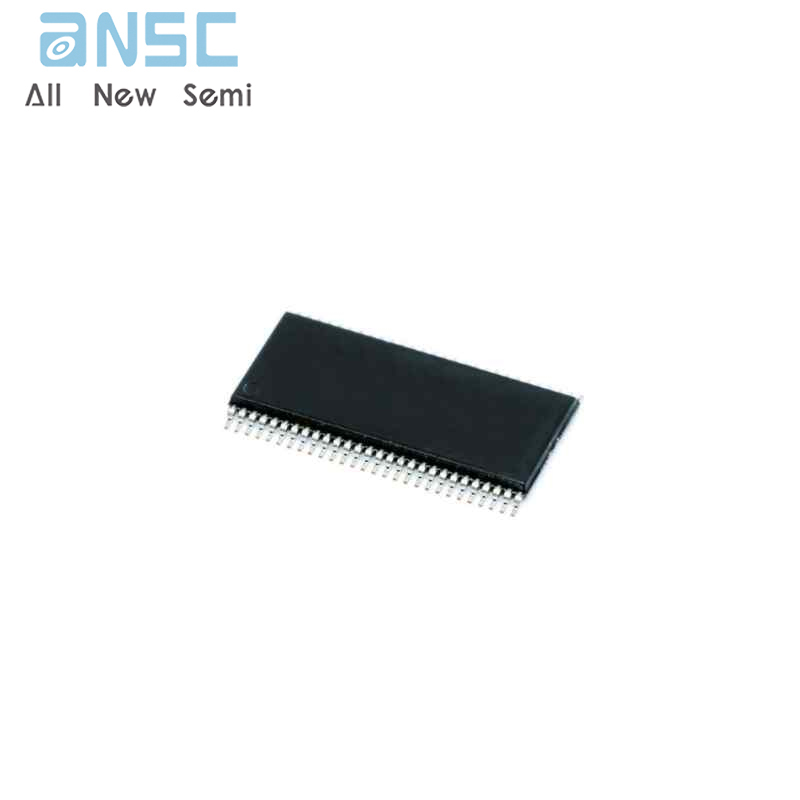

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SN74ALVCH16344DGGR 1-BIT TO 4-BIT ADDRESS DRIVER WITH 3-STATE OUTPUTS TSOP56 spot stock
Manufacturer Product Number
SN74ALVCH16344DGGR
Description
SN74ALVCH16344DGGR 1-BIT TO 4-BIT ADDRESS DRIVER WITH 3-STATE OUTPUTS TSOP56 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This 1-bit to 4-bit address driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH16344 is used in applications in which four separate memory locations must be addressed by a single address.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
Product Features
• Member of the Texas Instruments Widebus™ Family
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74ALVCH16344DGGR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| cms-filter-header-series | 74ALVCH |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Address Driver |
| Number of Elements | 4 |
| Number of Bits per Element | 2:8 |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
| cms-filter-header-bpn | 74ALVCH16344 |
Product Photos
For more product information, please download the PDF
