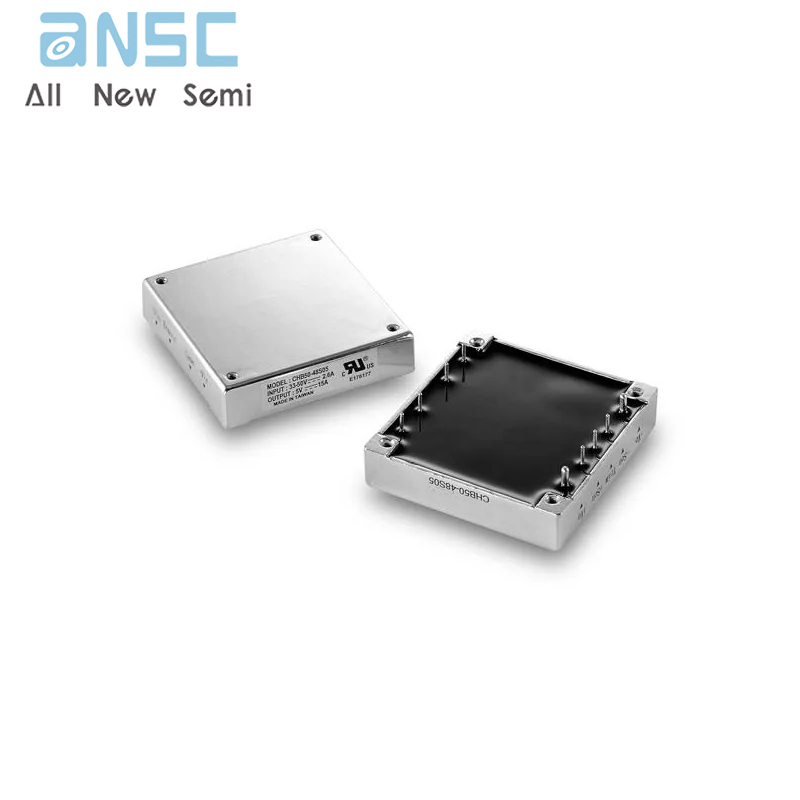

Hot-selling and scarce CHB50-24S33 33 - 50 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT MODULE spot stock
Manufacturer Product Number
CHB50-24S33
Description
CHB50-24S33 33 - 50 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT MODULE spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
* 33W-50W Isolated Output
* Efficiency to 89%
* 300/400KHz Switching Frequency
* 2:1 Input Range
* Regulated Outputs
* Continuous Short Circuit Protection
* Five-Sided Metal Case
* Half-Brick Size Meet Industrial Standard
* Safety Meets IEC/EN/UL60950-1
* UL60950-1 Approval
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CHB50-24S33 |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | CHB50 (50W) |
| Packaging | Tray |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Current - Output (Max) | 10A |
| Power (Watts) | 33 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
| Base Product Number | CHB50 |
Product Photos
For more product information, please download the PDF
