Hot-selling and scarce CSD16409Q3 N-Channel NexFET™ Power MOSFETs QFN spot stock
Manufacturer Product Number
CSD16409Q3
Description
CSD16409Q3 N-Channel NexFET™ Power MOSFETs QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
Product Features
• Ultra Low Qg and Qgd
• Low Thermal Resistance
• Avalanche Rated
• Pb Free Terminal Plating
• RoHS Compliant
• Halogen Free
• SON 3.3mm x 3.3mm Plastic Package
Product Applications
• Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom and Computing Systems
• Optimized for Control FET Applications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CSD16409Q3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | NexFET™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.2mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.6 nC @ 4.5 V |
| Vgs (Max) | +16V, -12V |
| Input Capacitance (Ciss) (Max) @ Vds | 800 pF @ 12.5 V |
| Power Dissipation (Max) | 2.6W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSONP (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | CSD16409 |

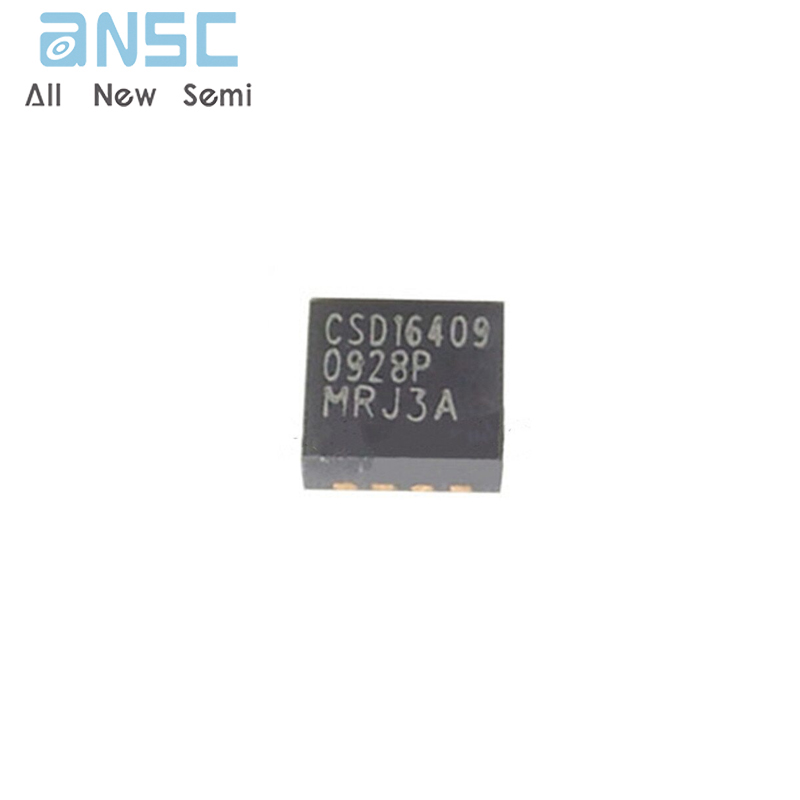

Product Photos
For more product information, please download the PDF
