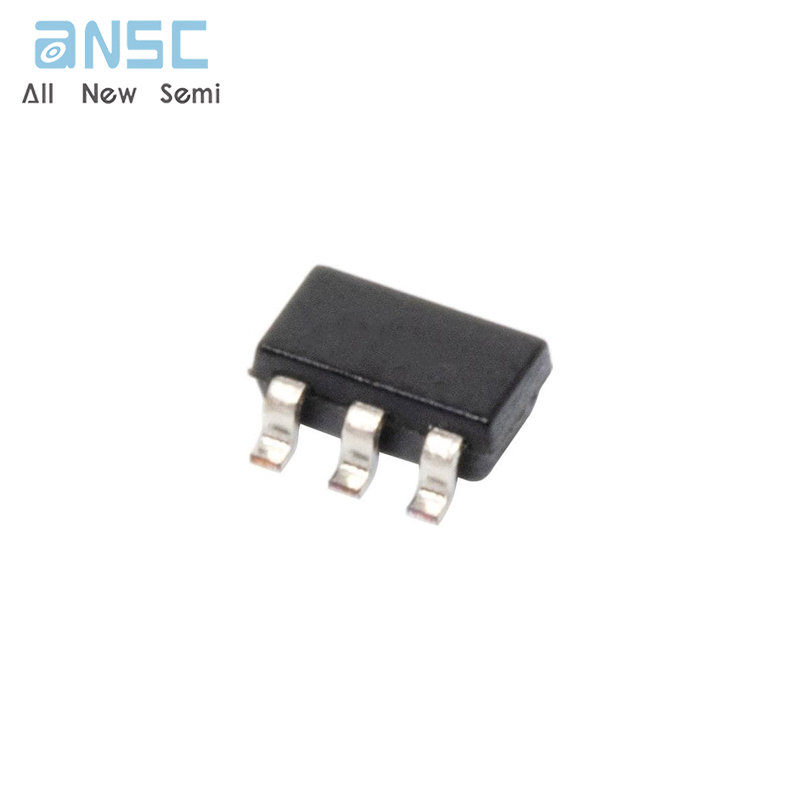

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce HMC374ETR SMT PHEMT LOW NOISE AMPLIFIER, 0.3 - 3.0 GHz SOT23-6 spot stock
Manufacturer Product Number
HMC374ETR
Description
HMC374ETR SMT PHEMT LOW NOISE AMPLIFIER, 0.3 - 3.0 GHz SOT23-6 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The HMC374 & HMC374E are general purpose broadband Low Noise Amplifiers (LNA) for use in the 0.3 -3 GHz frequency range. The LNA provides 15 dB of gain and a 1.5 dB noise figure from a single positive supply of +2.75 to +5.5V.The low noise figure coupled with a high P1dB (22 dBm) and high OIP3 (37 dBm) make this part ideal for cellular applications. The compact LNA design utilizes on-chip matching for repeatable gain and noise figure performance. To minimize board area the design is offered in a low costSOT26 package that occupies only 0.118” x 0.118”.
Product Features
Single Supply: Vdd = +2.75 to +5.5V
Low Noise Figure: 1.5 dB
High Output IP3: +37 dBm
No External Matching Required
Product Applications
The HMC374 / HMC374E is ideal for:
• Cellular/PCS/3G
• WCS, MMDS & ISM
• Fixed Wireless & WLAN
• Private Land Mobile Radio
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HMC374ETR |
| Category | RF and Wireless |
| RF Amplifiers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Frequency | 300MHz ~ 3GHz |
| P1dB | 22dBm |
| Gain | 9dB |
| Noise Figure | 1.8dB |
| RF Type | General Purpose |
| Voltage - Supply | 2.75V ~ 5.5V |
| Current - Supply | 90mA |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | HMC374 |
Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
