Hot-selling and scarce DG413AK/883B Improved Quad SPST Analog Switches DIP spot stock

Product Descriptions

DG411/DG412/DG413 analog switches now feature low on-resistance matching between switches (3Ω max) and guaranteed on-resistance flatness over the signal range (Δ4Ω max). These low on-resistance switches conduct equally well in either direction. They guarantee low charge injection, low power consumption, and an ESD tolerance of 2000V minimum per Method 3015.7. The new design offers lower off-leakage current over temperature (less than 5nA at +85°C).

The DG411/DG412/DG413 are quad, single-pole/single-throw (SPST) analog switches. The DG411 is normally closed (NC), and the DG412 is normally open (NO). The DG413 has two NC switches and two NO switches. Switching times are less than 150ns max for tON and less than 100ns max for tOFF. These devices operate from a single +10V to +30V supply, or bipolar ±4.5V to ±20V supplies. Maxim’s improved DG411/DG412/DG413 are fabricated with a 44V silicongate process.

Product Features

♦ Plug-In Upgrade for Industry-Standard DG411/DG412/DG413

♦ Improved RDS(ON) Match Between Channels (3Ω max)

♦ Guaranteed RFLAT(ON) Over Signal Range (Δ4Ω)

♦ Improved Charge Injection (10pC max)

♦ Improved Off-Leakage Current Over Temperature (< 5nA at +85°C)

♦ Withstand Electrostatic Discharge (2000V min) per Method 3015.7

♦ Low RDS(ON) (35Ω max)

♦ Single-Supply Operation +10V to +30V

♦ Bipolar-Supply Operation ±4.5V to ±20V

♦ Low Power Consumption (35µW max)

♦ Rail-to-Rail Signal Handling

♦ TTL/CMOS-Logic Compatible

Product Applications

Sample-and-Hold Circuits

Communication Systems

Test Equipment

Battery-Operated Systems

Heads-Up Displays

PBX, PABX

Guidance & Control Systems

Audio Signal Routing

Military Radios

Product Specification

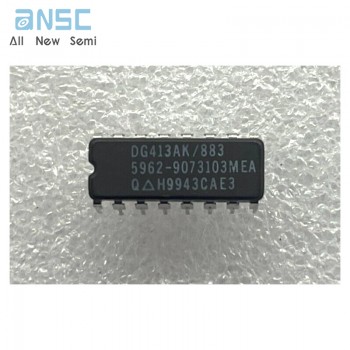

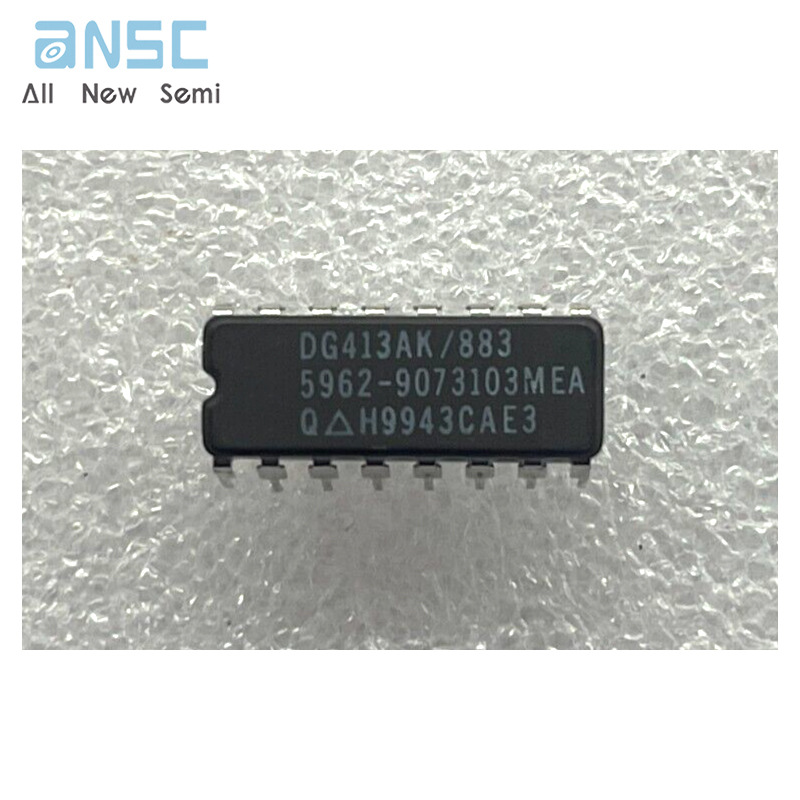

Product Photos

For more product information, please download the PDF
