Hot-selling and scarce MC74ACT14DR2 Hex Inverter Schmitt Trigger SOP14 spot stock

Product Descriptions

The MC74AC14/74ACT14 contains six logic inverters which accept standard CMOS Input signals (TTL levels for MC74ACT14) and provide standard CMOS output levels. They are capable of transforming slowly changing input signals into sharply defined, jitter–free output signals. In addition, they have a greater noise margin then conventional inverters.

The MC74AC14/74ACT14 has hysteresis between the positive–going and negative–going input thresholds (typically 1.0 V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.

Product Features

• Schmitt Trigger Inputs

• Outputs Source/Sink 24 mA

• ′ACT14 Has TTL Compatible Inputs

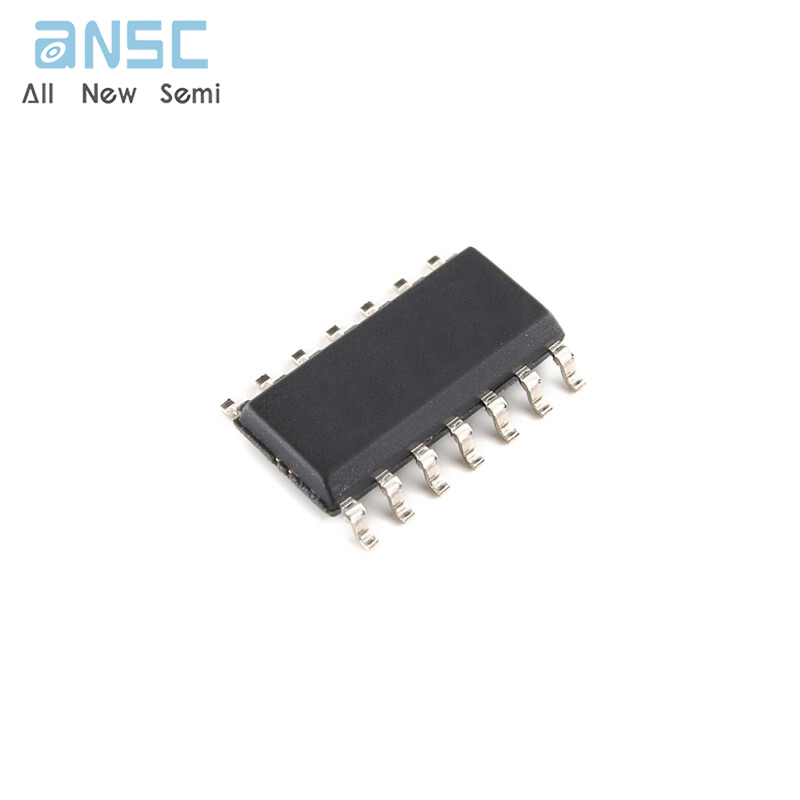

Product Photos

For more product information, please download the PDF
