Hot-selling and scarce MAX1616EUK-T High-Voltage, Low-Power Linear Regulators for Notebook Computers SOT-23-5 spot stock
Manufacturer Product Number
MAX1616EUK-T
Description
MAX1616EUK-T High-Voltage, Low-Power Linear Regulators for Notebook Computers SOT-23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX1615/MAX1616 are micropower, SOT23-5 linear regulators that supply always-on, keep-alive power to CMOS RAM and microcontrollers (µCs) in systems with high-voltage batteries. Key features include wide input voltage range, low dropout voltage, and low quiescent supply current.
Despite a miserly 8µA (max) no-load supply current, the MAX1615/MAX1616 have excellent line-transient response and AC power-supply rejection ratio. They provide a clean, fixed 5V or 3.3V output (MAX1615) or an adjustable 1.24V to 28V output (MAX1616), even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power. The space-saving SOT23-5 package has excellent thermal characteristics and tolerates up to 571mW of power dissipation. Fault protection is provided by internal foldback current limiting and thermalshutdown circuitry.
Product Features
♦ 4V to 28V Input Range
♦ 8µA (max) Quiescent Supply Current
♦ <1µA Shutdown Supply Current
♦ 3.3V or 5V, Pin-Selectable Output (MAX1615) Adjustable 1.24V to 28V Output (MAX1616)
♦ 30mA Output Current
♦ ±2% Initial Output Accuracy
♦ Thermal-Overload Protection
♦ 5-Pin SOT23 Package
♦ Low Cost
Product Applications
CMOS/RTC Backup Power
Microcontroller Power
Notebook Computers
Smart-Battery Packs
PDAs and Handy-Terminals
Battery-Powered Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX1616EUK-T |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 28V |
| Voltage Dropout (Max) | 0.35V @ 30mA |
| Current - Output | 30mA |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | MAX1616 |

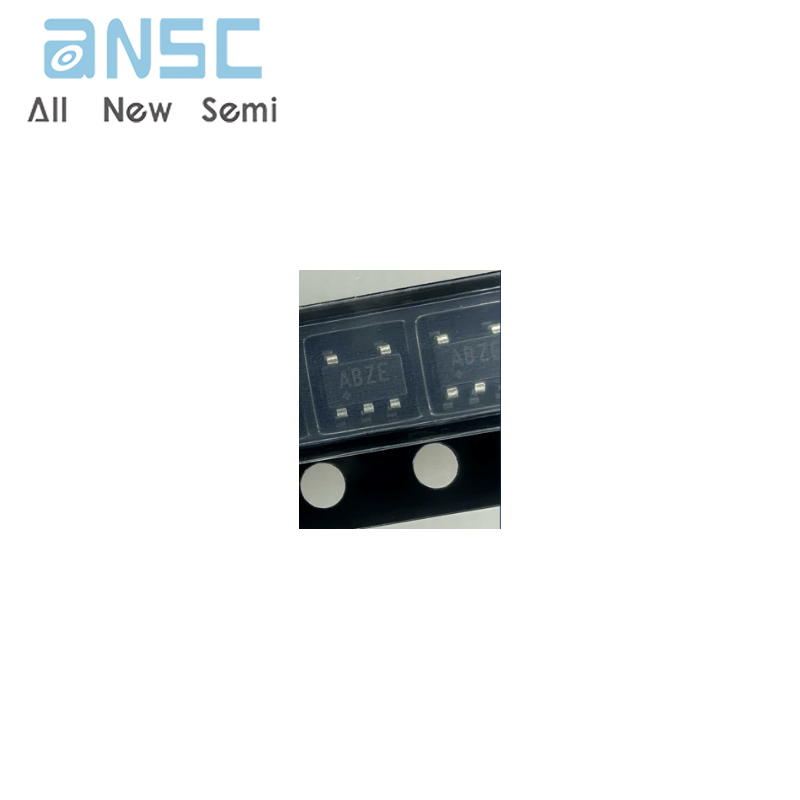

Product Photos
