Spot sales of XCV200E-6FG456C Virtex™-E 1.8 V Field Programmable Gate Arrays IC 456-BBGA

Product Features

• Fast, High-Density 1.8 V FPGA Family

- Densities from 58 k to 4 M system gates

- 130 MHz internal performance (four LUT levels)

- Designed for low-power operation

- PCI compliant 3.3 V, 32/64-bit, 33/ 66-MHz

• Highly Flexible SelectI/O+™ Technology

- Supports 20 high-performance interface standards

- Up to 804 singled-ended I/Os or 344 differential I/O pairs for an aggregate bandwidth of > 100 Gb/s

• Differential Signalling Support

- LVDS (622 Mb/s), BLVDS (Bus LVDS), LVPECL

- Differential I/O signals can be input, output, or I/O

- Compatible with standard differential devices

- LVPECL and LVDS clock inputs for 300+ MHz clocks

• Proprietary High-Performance SelectLink™ Technology

- Double Data Rate (DDR) to Virtex-E link

- Web-based HDL generation methodology

• Sophisticated SelectRAM+™ Memory Hierarchy

- 1 Mb of internal configurable distributed RAM

- Up to 832 Kb of synchronous internal block RAM

- True Dual-Port BlockRAM capability

- Memory bandwidth up to 1.66 Tb/s (equivalent bandwidth of over 100 RAMBUS channels)

- Designed for high-performance Interfaces to External Memories

- 200 MHz ZBT* SRAMs

- 200 Mb/s DDR SDRAMs

- Supported by free Synthesizable reference design

• High-Performance Built-In Clock Management Circuitry

- Eight fully digital Delay-Locked Loops (DLLs)

- Digitally-Synthesized 50% duty cycle for Double Data Rate (DDR) Applications

- Clock Multiply and Divide

- Zero-delay conversion of high-speed LVPECL/LVDS clocks to any I/O standard

• Flexible Architecture Balances Speed and Density

- Dedicated carry logic for high-speed arithmetic

- Dedicated multiplier support

- Cascade chain for wide-input function

- Abundant registers/latches with clock enable, and dual synchronous/asynchronous set and reset

- Internal 3-state bussing

- IEEE 1149.1 boundary-scan logic

- Die-temperature sensor diode

• Supported by Xilinx Foundation™ and Alliance Series™ Development Systems

- Further compile time reduction of 50 percent

- Internet Team Design (ITD) tool ideal for million-plus gate density designs

- Wide selection of PC and workstation platforms

• SRAM-Based In-System Configuration

- Unlimited re-programmability

• Advanced Packaging Options

- 0.8 mm Chip-scale

- 1.0 mm BGA

- 1.27 mm BGA

- HQ/PQ

• 0.18 μm 6-Layer Metal Process

• 100% Factory Tested

Product Specification

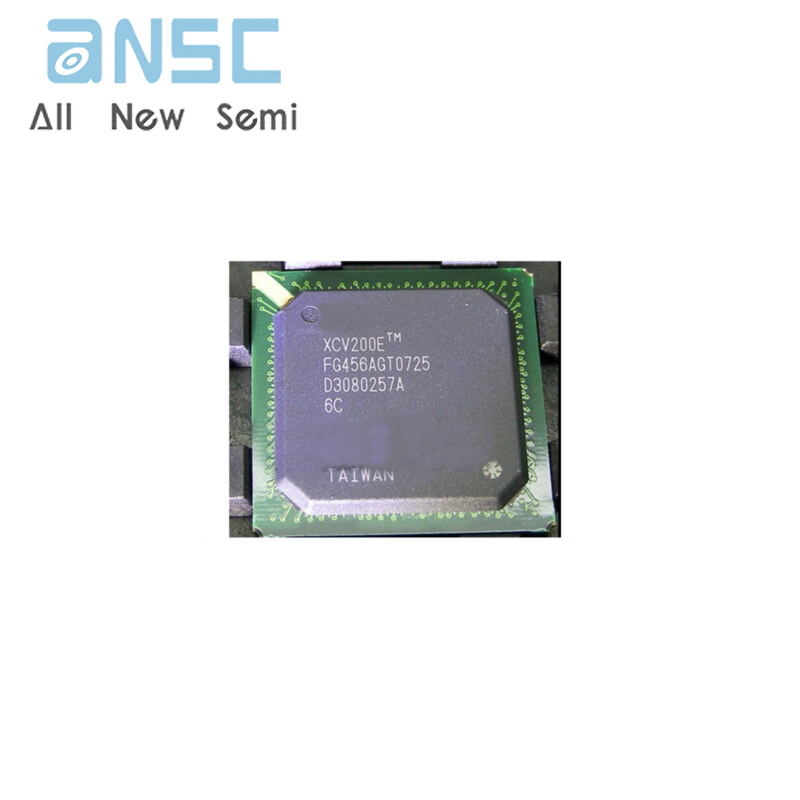

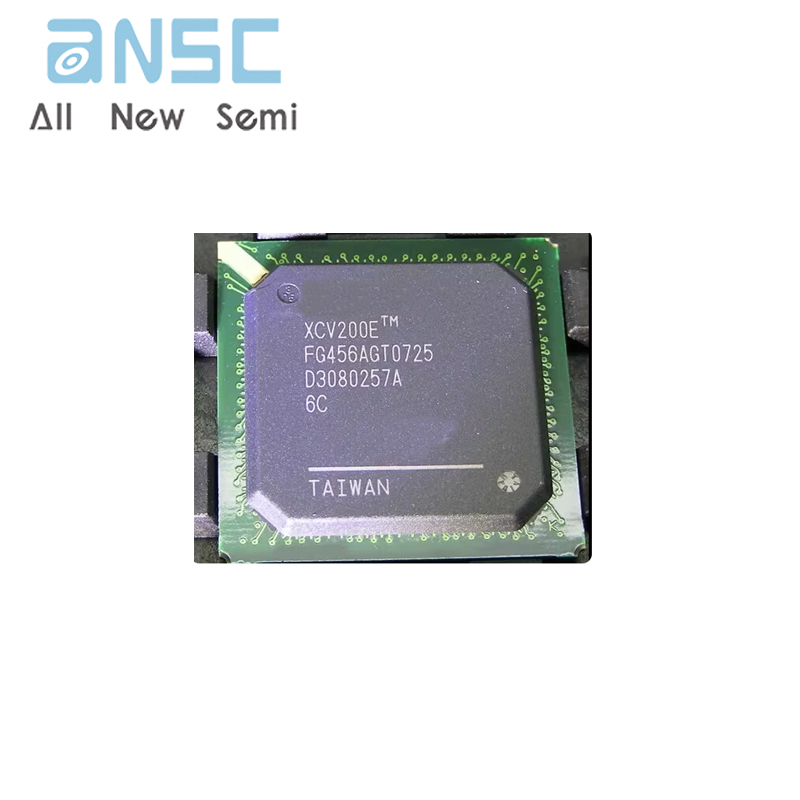

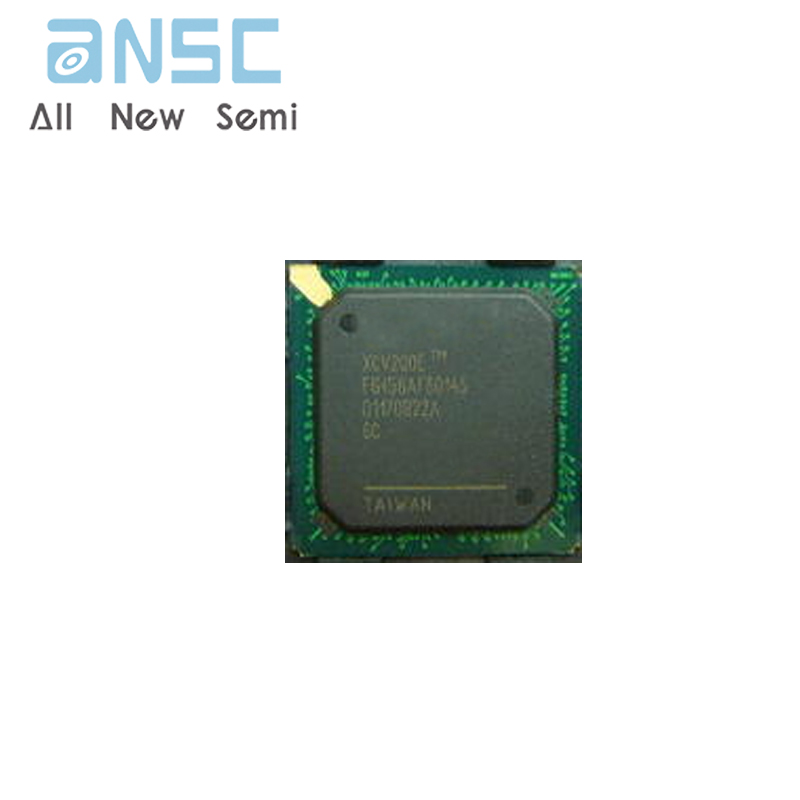

Product Photos

For more product information, please download the PDF
