Hot-selling and scarce AD9880KSTZ-150 Analog/HDMI Dual Display Interface TQFP100 spot stock

Product Descriptions

The AD9880 offers designers the flexibility of an analog interface and high definition multimedia interface (HDMI)receiver integrated on a single chip.Also included is support for high bandwidth digital content protection (HDCP).

Analog Interface

The AD9880 is a complete 8-bit 150 MSPS monolithic analog interface optimized for capturing component video (YPbPr) and RGB graphics signals.Its 150 MSPS encode rate capability and full power analog bandwidth of 330 MHz supports all HDTV formats (up to1080 p) and FPD resolutions up to SXGA (1280 × 1024 @ 75 Hz).

The analog interface includes a 150 MHz triple ADC with internal1.25 V reference,a phase-locked loop (PLL),and programmable gain,offset,and clamp control.The user provides only 1.8 V and3.3 V power supplies, analog input, and Hsync. Three-state​ CMOS outputs can be powered from 1.8 V to 3.3 V. The AD9880’s on-chip PLL generates a pixel clock from Hsync. Pixel clock output frequencies range from 12 MHz to 150 MHz. PLL clock jitter is typically less than 700 ps p-p at 150 MHz. The AD9880 also offers full sync processing for composite sync and sync-on-green (SOG) applications.

Product Features

Analog/HDMI dual interface

Supports high bandwidth digital content protection

RGB-to-YCbCr 2-way color conversion

Automated clamping level adjustment

1.8 V/3.3 V power supply

100-lead LQFP Pb-free package

RGB andYCbCr output formats

Analog interface

8-bit triple ADC

100 MSPS maximum conversion rate

Macrovision® detection

2:1 input mux

Full sync processing

Sync detect for hot plugging

Midscale clamping

Digital video interface

HDMI v 1.1, DVI v 1.0

150 MHz HDMI receiver

Supports high bandwidth digital content protection

(HDCP 1.1)

Digital audio interface

HDMI 1.1-compatible audio interface

S/PDIF (IEC90658-compatible) digital audio output

Multichannel I2S audio output (up to 8 channels)

Product Applications

Advanced TV

HDTV

Projectors

LCD monitor

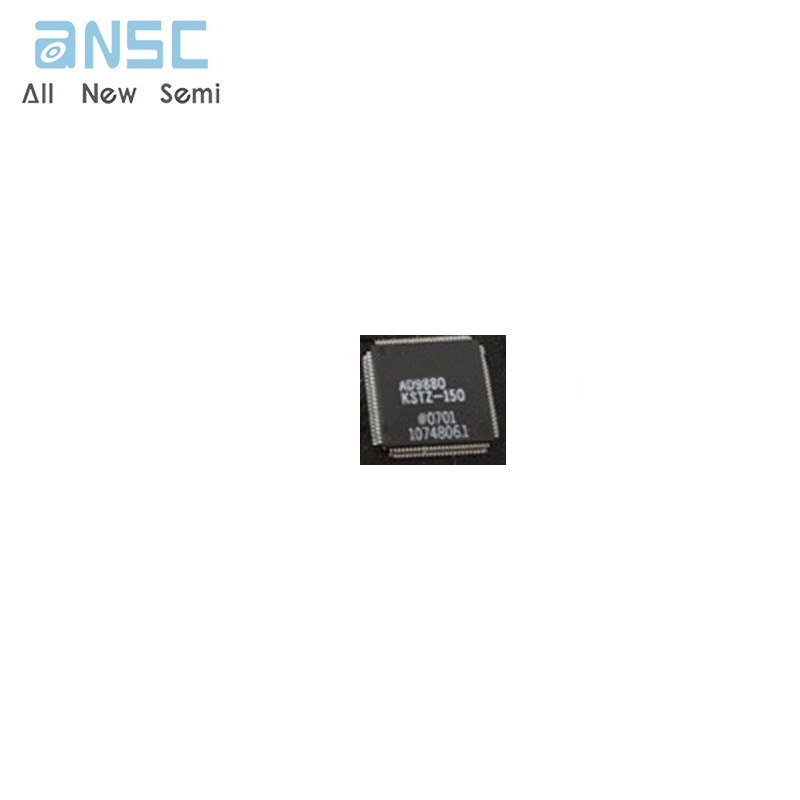

Product Photos
