Product Descriptions

The SSM2143 is an integrated differential amplifier intended toreceive balanced line inputs in audio applications requiring ahigh level of immunity from common-mode noise. The deviceprovides a typical 90 dB of common-mode rejection (CMR),which is achieved by laser trimming of resistances to better than0.005%.

Additional features of the device include a slew rate of 10 V/µsand wide bandwidth. Total harmonic distortion (THD) is lessthan 0.004% over the full audio band, even while driving lowimpedance loads. The SSM2143 input stage is designed tohandle input signals as large as +28 dBu at G = 1/2. Althoughprimarily intended for G = 1/2 applications, a gain of 2 can berealized by reversing the +IN/–IN and SENSE/REFERENCEconnections.

When configured for a gain of 1/2, the SSM2143 and SSM2142Balanced Line Driver provide a fully integrated, unity gainsolution to driving audio signals over long cable runs. Forsimilar performance with G = 1, see SSM2141 .

Product Features

High Common-Mode Rejection

DC:  90 dB typ

60 Hz: 90 dB typ

20 kHz: 85 dB typ

Ultralow THD: 0.0006% typ @  1 kHz

Fast Slew Rate: 10 V/s typ

Wide Bandwidth: 7 MHz typ (G = 1/2)

Two Gain Levels Available: G = 1/2 or 2

Low Cost

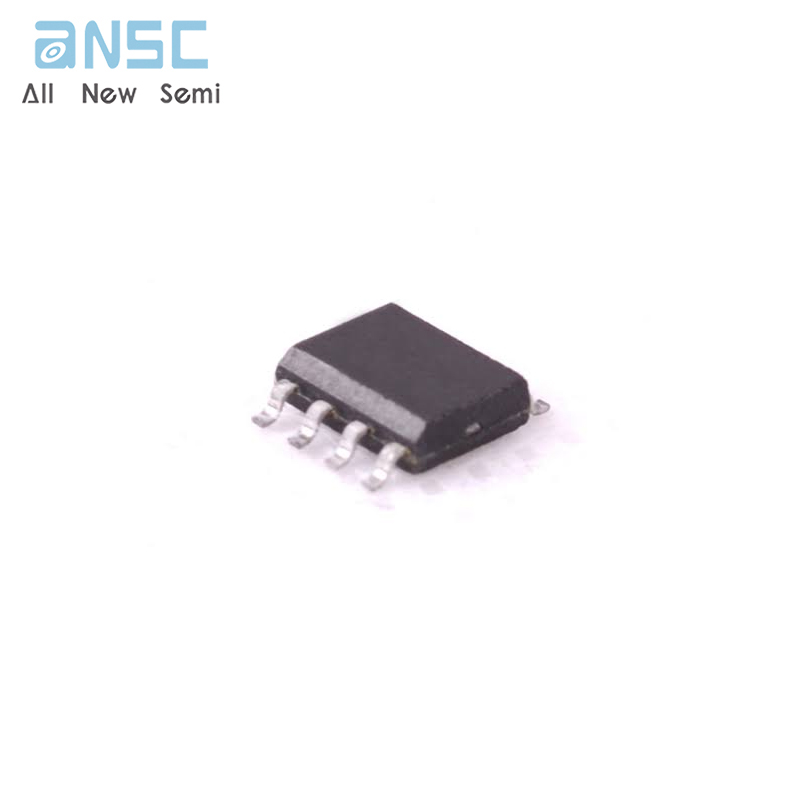

Product Photos
