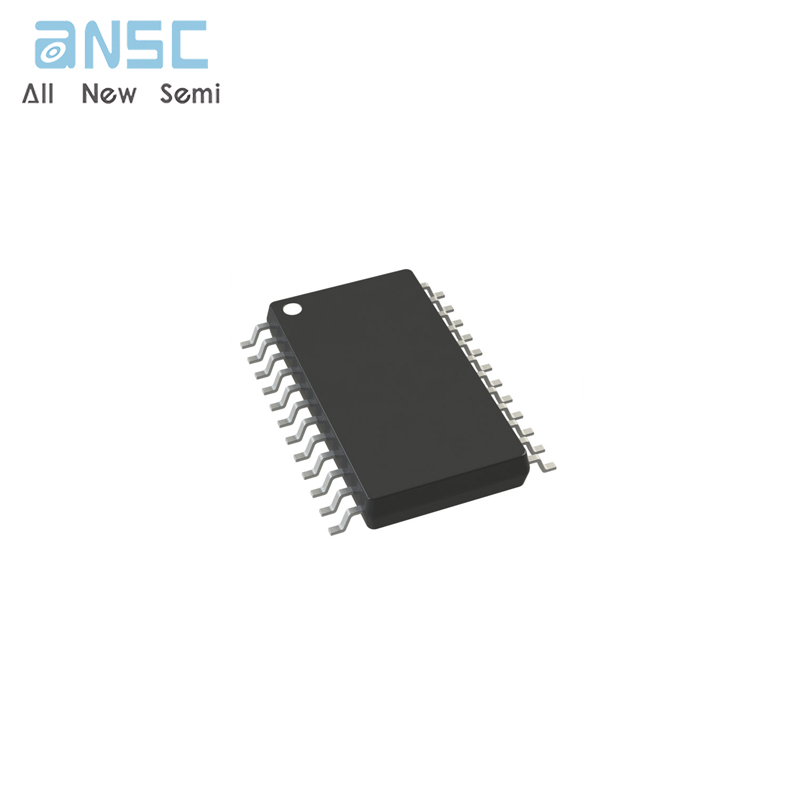

Hot-selling and scarce AD8403ARU1 1-/2-/4-Channel Digital Potentiometers TSSOP24 spot stock

Product Descriptions

The AD8400/AD8402/AD8403 provide a single, dual or quadchannel, 256 position digitally controlled variable resistor (VR)device . These devices perform the same electronic adjustmentfunction as a potentiometer or variable resistor . The AD8400contains a single variable resistor in the compact SO-8 package .The AD8402 contains two independent variable resistors inspace saving SO-14 surface mount package . The AD8403 contains four independent variable resistors in 24-lead PDIP, SOICand TSSOP packages .  Each part contains a fixed resistor with awiper contact that taps the fixed resistor value at a point determined by a digital code loaded into the controlling serial inputregister . The resistance between the wiper and either endpointof the fixed resistor varies linearly with respect to the digitalcode transferred into the VR latch . Each variable resistor offersa completely programmable value of resistance, between the Aterminal and the wiper or the B terminal and the wiper . Thefixed A to B terminal resistance of 1 kΩ, 10 kΩ, 50 kΩ or 100 kΩhas a ±1% channel-to-channel matching tolerance with a nominaltemperature coefficient of 500 ppm/°C . A unique switching circuit minimizes the high glitch inherent in traditional switchedresistor designs avoiding any make-before-break or break-beforemake operation .

Product Features

256 Position

Replaces 1, 2 or 4 Potentiometers

1 k, 10 k, 50 k, 100 k

Power Shut Down—Less than 5 A

3-Wire SPI Compatible Serial Data Input

10 MHz Update Data Loading Rate

+2.7 V to +5.5 V Single-Supply Operation

Midscale Preset

Product Applications

Mechanical Potentiometer Replacement

Programmable Filters, Delays, Time Constants

Volume Control, Panning

Line Impedance Matching

Power Supply Adjustment

Product Specification

Product Photos

For more product information, please download the PDF
