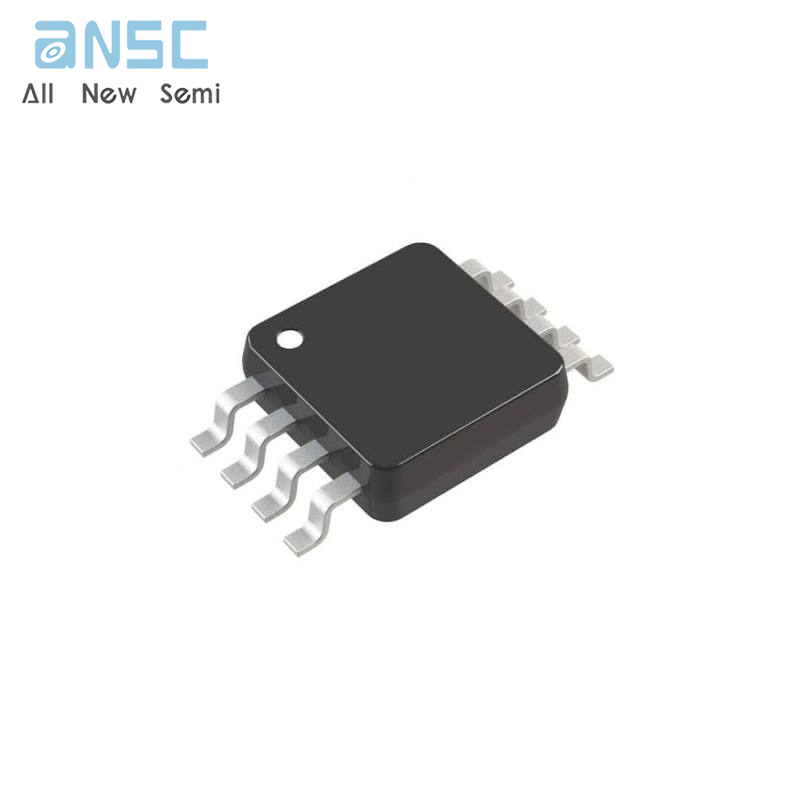

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce HMC316MS8ETR GaAs MMIC HIGH IP3 DOUBLEBALANCED MIXER, 1.5 - 3.8 GHz MSOP8 spot stock
Manufacturer Product Number
HMC316MS8ETR
Description
HMC316MS8ETR GaAs MMIC HIGH IP3 DOUBLEBALANCED MIXER, 1.5 - 3.8 GHz MSOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The HMC316MS8 & HMC316MS8E are miniature double balanced mixers in 8 lead plastic surface mount packages. The passive GaAs schottky diode mixer implements planar on chip balun transformers, and requires no external components. The mixer can be used as an upconverter, downconverter, or modulator. At mid-band the mixer provides 7.5 dB conversion loss and +25 dBm IIP3 with LO drive levels of+19 dBm. The design was optimized for low cost high volume applications where high converter linearity is required.
Product Features
Conversion Loss: 8 dB
LO/RF Isolation: >35 dB
Input IP3: +25 dBm
Ultra Small Package: <1 mm High
Included in the HMC-DK003 Designer’s Kit
Product Applications
The HMC316MS8 / HMC316MS8E is ideal for:
• Cellular Basestations
• Cable Modems
• Fixed Wireless Access Systems
• WiMAX
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HMC316MS8ETR |
| Category | RF and Wireless |
| RF Mixers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| RF Type | General Purpose |
| Frequency | 1.5GHz ~ 3.8GHz |
| Number of Mixers | 1 |
| Noise Figure | 8dB |
| Secondary Attributes | Up/Down Converter |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | HMC316 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
HMC316MS8ETR GaAs MMIC HIGH IP3 DOUBLEBALANCED MIXER, 1.5 - 3.8 GHz MSOP8 spot stock
500In stock:
Can ship immediately
