Hot-selling and scarce DS1010S-050 10-Tap Silicon Delay Line SOP16 spot stock

Product Descriptions

The DS1010 series delay line has ten equally spaced taps providing delays from 5 ns to 500 ns. The devices  are  offered  in  a  standard  14-pin  DIP  which  is  pin-compatible  with  hybrid  delay  lines. Alternatively, a 16-pin SOIC is available for surface mount technology which reduces PC board area. Since the DS1010 is an all-silicon solution, better economy is achieved when compared to older methods using hybrid techniques. The DS1010 series delay lines provide a nominal accuracy of ±5% or ±2 ns, whichever is greater. The DS1010 reproduces the input logic state at the TAP  10 output after a fixed delay as specified by the dash number extension of the part number. The DS1010 is designed to produce both leading and trailing edge with equal precision.  Each tap is capable of driving up to 10 74LS type loads.

Product Features

All-silicon time delay

10 taps equally spaced

Delays are stable and precise

Leading and trailing edge accuracy

Delay tolerance ±5% or ±2 ns, whichever is greater

Economical

Auto-insertable, low profile

Standard 14-pin DIP or 16-pin SOIC

Low-power CMOS

TTL/CMOS-compatible

Vapor phase, IR and wave solderable

Custom delays available

Fast turn prototypes

​

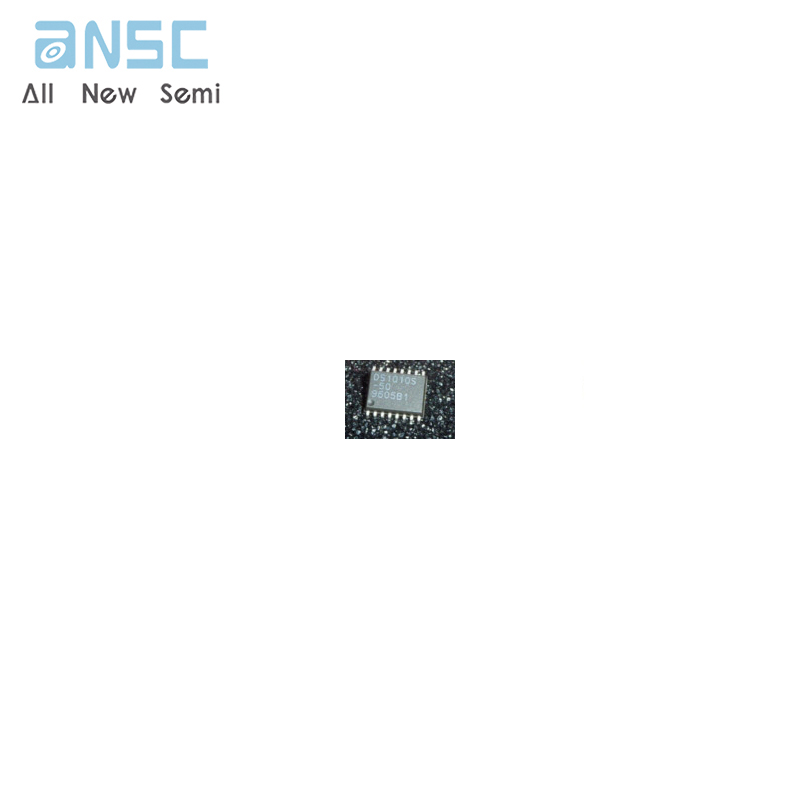

Product Photos
