Hot-selling and scarce MIC5235YM5 Ultra-Low Quiescent Current, 150mA µCap LDO Regulator SOT23-5 spot stock

Product Descriptions

The MIC5235 is a 150mA highly accurate, low dropout  regulator with high input voltage and ultra-low ground  current. This combination of high voltage and low ground  current makes the MIC5235 ideal for USB and portable  electronics applications, using 1-cell, 2-cell or 3-cell Li-Ion  battery inputs.

A µCap LDO design, the MIC5235 is stable with either  ceramic or tantalum output capacitor. It only requires a  2.2µF capacitor for stability.

Features of the MIC5235 includes enable input, thermal  shutdown, current limit, reverse battery protection, and  reverse leakage protection.

Available in fixed and adjustable output voltage versions,  the MIC5235 is offered in the IttyBitty® SOT-23-5 package  with a junction temperature range of –40°C to +125°C.

Product Features

• Wide input voltage range: 2.3V to 24V

• Ultra low ground current: 18µA

• Low dropout voltage: 310mV at 150mA

• High output accuracy: ±2.0% over temperature

• µCap: stable with ceramic or tantalum capacitors

• Excellent line and load regulation specifications

• Zero shutdown current

• Reverse battery protection

• Reverse leakage protection

• Thermal shutdown and current limit protection

• IttyBitty® SOT-23-5 package

• Adjustable output from 1.24V-20V

Product Applications

• USB power supply

• Cellular phones

• Keep-alive supply in notebook and portable computers

• Logic supply for high-voltage batteries

• Automotive electronics

• Battery powered systems

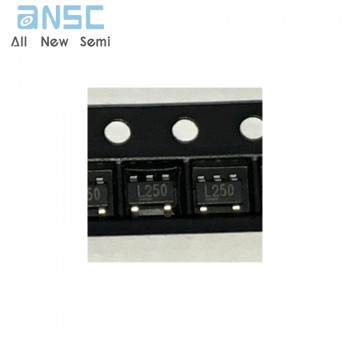

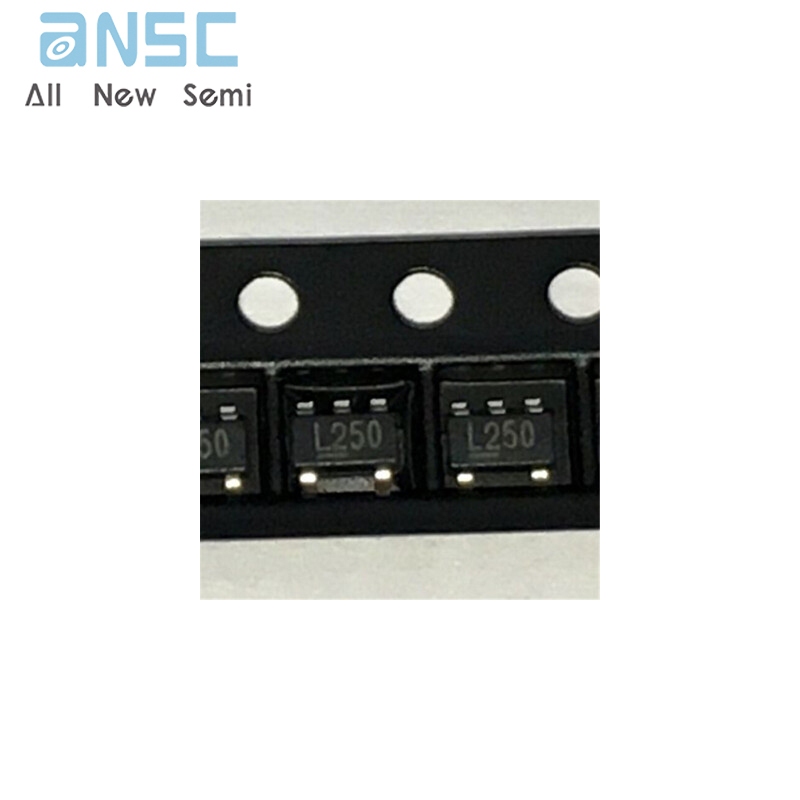

Product Photos

For more product information, please download the PDF
